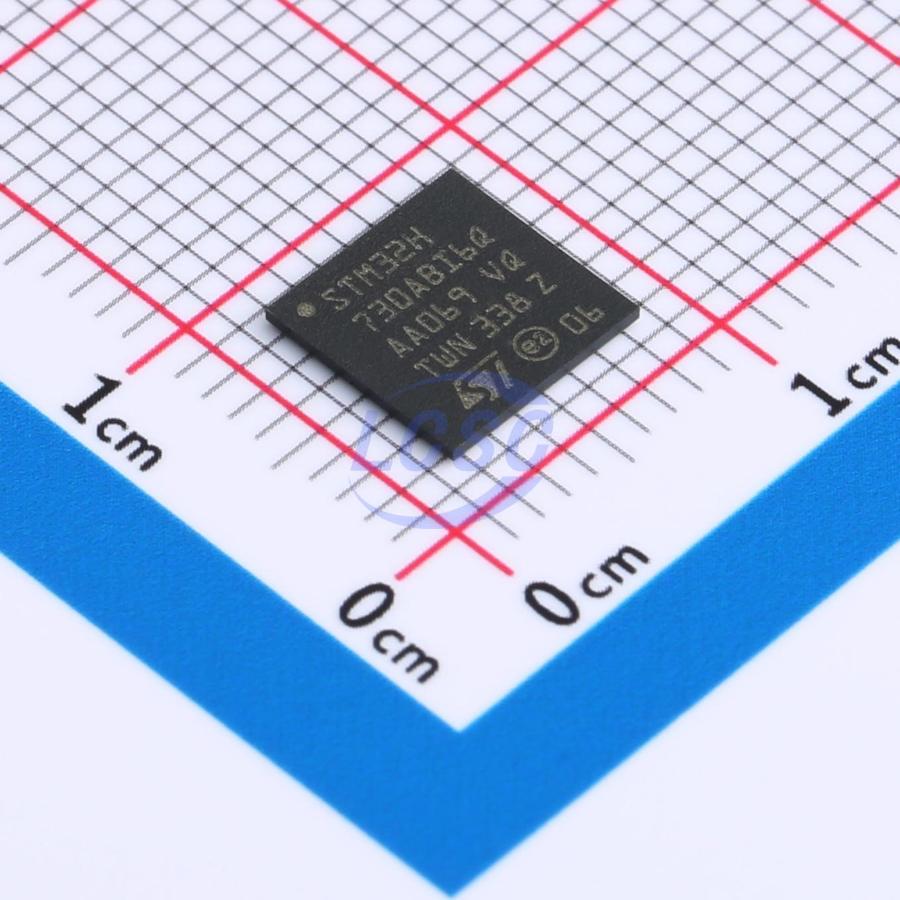

STM32H730ABI6Q

This product is a microcontroller based on the Arm® Cortex®-M7 CPU, integrating multiple functional modules including memory, graphics accelerator, clock and power management unit, analog and digital interfaces, communication interfaces, math accelerator unit, and security features.

Key features

• Includes ST state-of-the-art patented technology
• 32-bit Arm Cortex-M7 CPU with DP-FPU, L1 cache: 32-Kbyte data cache and 32-Kbyte instruction cache allowing 0-wait state execution from embedded Flash memory and external memories, frequency up to 550 MHz, MPU, 1177 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
• 128 Kbytes of embedded Flash memory with ECC SRAM: total 564 Kbytes all with ECC, including 128 Kbytes of data TCM RAM for critical realtime data + 432 Kbytes of system RAM (up to 256 Kbytes can remap on instruction TCM RAM for critical real time instructions) + 4 Kbytes of backup SRAM (available in the lowest-power modes)
• Flexible external memory controller with up to 24-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND memories
• 2 x Octo-SPI interface with XiP and on-the-fly decryption support
• 2 x SD/SDIO/MMC interface
• Bootloader with security services support (SFI and SB-SFU)
• Chrom-ART Accelerator graphical hardware accelerator enabling enhanced graphical user interface to reduce CPU load
• LCD-TFT controller supporting up to XGA resolution
• 1.62 V to 3.6 V application supply and I/O
• POR, PDR, PVD and BOR
• Dedicated USB power
• Embedded DCDC and LDO regulator
• Internal oscillators: 64 MHz HSI, 48 MHz HSI48, 4 MHz CSI, 32 kHz LSI
• External oscillators: 4 - 50 MHz HSE, 32.768 kHz LSE
• Sleep, Stop and Standby modes
• V_BAT supply for RTC, 32x32 -bit backup registers
• 2x16 -bit ADC, up to 3.6 MSPS in 16-bit: up to 22 channels and 7.2 MSPS in double interleaved mode
• 1 x 12-bit ADC, up to 5 MSPS in 12-bit, up to 12 channels
• 2 x comparators
• 2 x operational amplifier GBW = 8 MHz
• 2x 12-bit D/A converters
• 8 channels/4 filters for Digital filters for sigma delta modulator (DFSDM)
• 4 DMA controllers to offload the CPU
• 1x MDMA with linked list support
• 2x dual-port DMAs with FIFO
• 1x basic DMA with request router capabilities
• 24 timers: Seventeen 16-bit (including 5x low power 16-bit timer available in stop mode) and four 32-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
• SWD and JTAG interfaces
• 2-Kbyte embedded trace buffer
• Up to 128 I/O ports with interrupt capability
• Up to 35 communication interfaces: Up to 5xI2C FM+ interfaces (SMBus/PMBus), Up to 5 USARTs/5 UARTs (ISO7816 interface, LIN, IrDA, modem control) and 1x LPUART, Up to 6 SPIs with 4 with muxed duplex I2S for audio class accuracy via internal audio PLL or external clock and up to 5x SPI (from 5x USART when configured in synchronous mode), 2x SAI (serial audio interface), 1x FD/TT-CAN and 2x FD-CAN, 8 - to 14-bit camera interface, 16-bit parallel slave synchronous interface, SPDIF-IN interface, HDMI-CEC, Ethernet MAC interface with DMA controller, USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip FS PHY and ULPI for external HS PHY, SWPMI single-wire protocol master I/F, MDIO slave interface
• CORDIC for trigonometric functions acceleration
• FMAC: Filter mathematical accelerator
• Digital temperature sensor
• AES 128, 192, 256, TDES, HASH (MD5, SHA1, SHA-2), HMAC
• 2x OTFDEC AES-128 in CTR mode for OctoSPI memory encryption/decryption
• True random number generator
• CRC calculation unit
• RTC with sub-second accuracy and hardware calendar
• ROP, PC-ROP, tamper detection, secure firmware upgrade support
• 96-bit unique ID
• All packages are ECOPACK2 compliant
