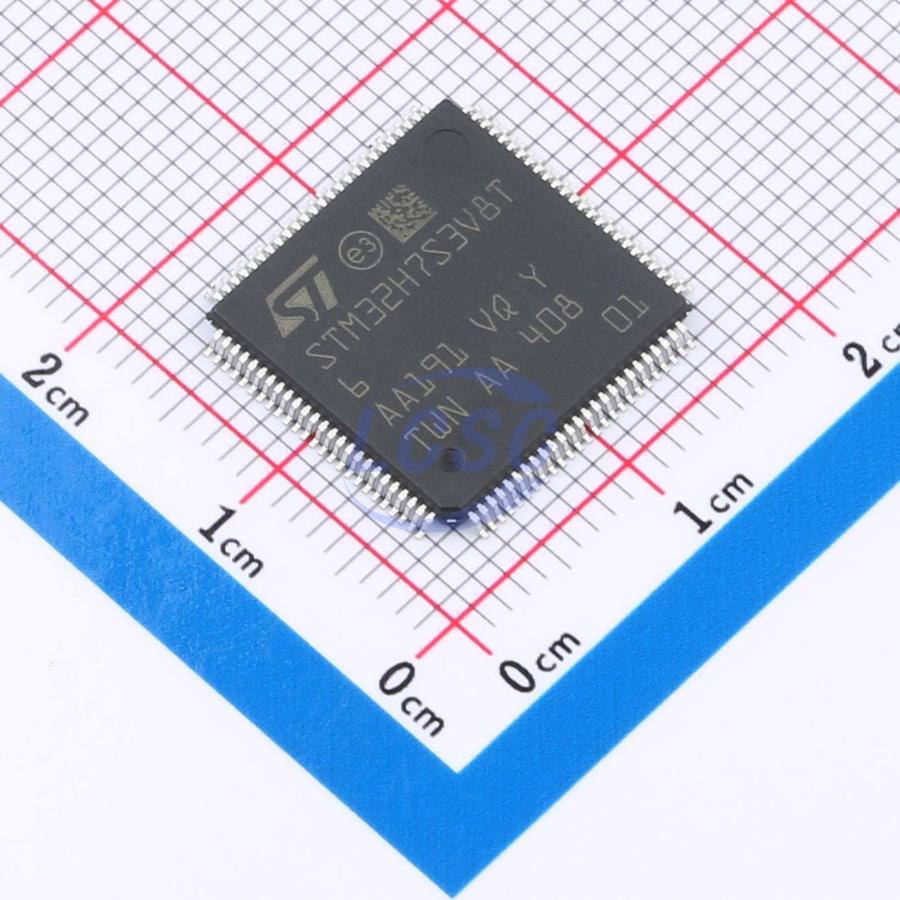

STM32H7S3V8T6

ARM Cortex-M7 32 Bit 600MHz LQFP-100(14x14) Microcontrollers RoHS

LQFP-100(14x14)ROHS3 CompliantActive

32-bit 600 MHz MCU, Ethernet, 2x USB, 2x FD-CAN, advanced graphics and security, 2x12-bit ADCs

Manufacturer: ST
Manufacturer part #: STM32H7S3V8T6
Store part #: C28314555
Package / case: LQFP-100(14x14)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8 in stock

#C28314555

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹1,015.47	₹1,015.47
10+	₹989.96	₹9,899.60
30+	₹972.74	₹29,182.20
100+	₹955.74	₹95,574.00

Quantity (min 1)

1 × ₹1,015.47

₹1,015.47

excl. GST

₹1,198.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per tray

STM32H7S3V8T6

₹1,015.47 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of I/O: 67
Operating Temperature: -40℃~+85℃
Program Memory Type: FLASH
Voltage - Supply: 1.71V~3.6V
Program Storage Size: 64KB
CPU Core: ARM Cortex-M7
Core Size: 32 Bit
CPU Maximum Speed: 600MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 5A992C
Packaging: Tray
Standard pack: 500 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.95 g

Overview

Key features

32-bit Arm Cortex-M7 CPU with MPU and DP-FPU, L1 cache: 32+32 -Kbyte instruction and data cache allowing 0-wait state execution from embedded flash memory and external memories, frequency up to 600 MHz, 1284 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
64 Kbytes of user flash memory that can be used for user code and/or external memory configuration. SRAM: total 620 Kbytes (548 Kbytes with optional ECC activated) organized as follows: 64+64 Kbytes minimum of instruction and data TCM RAM for critical real time instructions 384 Kbytes AXI SRAM (128 Kbytes with optional remap to TCM RAM fully activated 4 Kbytes of backup SRAM (available in the lowest-power modes) Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, FRAM, SDR/LPSDR SDRAM, NOR/NAND memories Up to 2x octo-SPI memory interfaces or 1 octo-SPI + 1 hexa-SPI with XiP, with support for serial PSRAM/NAND/NOR, HyperRAM/HyperFlash frame formats running at up to 200 MHz 2x SD/SDIO/MMC interfaces
2x DMA controllers to offload the CPU, 2x dual-port DMAs with FIFO and linked listed support
PSA level 2 and SESIP level 3 certified (under certification) Flexible life cycle scheme with debug authentication based on certificate or password (debug reopening/regression support) Root of trust thanks to unique boot entry and secure hide protection area (HDP) Secure firmware installation / update (SFI/SFU) thanks to embedded root secure services (RSS) Secure data storage with hardware unique key (HUK) 2 AES coprocessors including one with DPA resistance Public key accelerator, DPA resistant with ECC verification feature only On-the-fly encryption/decryption of serial and parallel external memories
HASH hardware accelerator True random number generator, NIST SP800-90B compliant
96-bit unique ID
1 Kbyte OTP (one-time programmable) Active tampers
Hardware secure storage (dedicated secure flash area)
NeoChrom graphic processor (GPU2D) accelerating any angle rotation, scaling and perspective correct texture mapping
Chrom-ART Accelerator (DMA2D) for enhanced graphic content creation
Chrom-GRC (GFXMMU) allowing up to 20% of graphic resources optimization
Hardware JPEG codec
LCD-TFT controller supporting up to XGA resolution
Flexible memory controller FMC8/16 for parallel display support
Digital camera parallel interface with pixel format conversion and cropping capabilities
1.71 V to 3.6 V application supply and I/O
POR, PVD and BOR
Dedicated USB power embedding a 3.3 V internal regulator to supply the internal PHYs
Embedded regulator LDO to supply the VCORE and/or external circuitry
High power-efficiency SMPS step-down converter regulator to directly supply VCORE and/or external circuitry
Internal oscillators: 64 MHz HSI, 48 MHz HSI48, 4 MHz CSI, 32 kHz LSI
External oscillators: 4 - 50 MHz HSE, 32.768 kHz LSE
Sleep, Stop, and Standby modes
V(BAT) supply for RTC, 32x32 -bit backup registers
2x12-bit ADC, up to 5 MSPS in 12-bit, up to 17 channels
2 microphones /1 filter Voice activity detector (VAD) support
Up to 152 I/O ports with interrupt capability
CORDIC for trigonometric functions acceleration
23 timers: Sixteen 16-bit (including 5x low power 16-bit timer available in stop mode, one graphic timer), four 32-bit timers, 2x watchdogs, 1x SysTick timer RTC with sub-second and hardware calendar with calibration (to be verified)
Authenticated debug and flexible device lifecycle
SWD and JTAG interfaces
ETM with 2-Kbyte embedded trace buffer
Up to 35 communication interfaces: 3xI2C FM+(SMBus/PMBus), 1xI3C interface (muxed with one I2C), Up to 3 USARTs/4 UARTs (ISO7816 interface, LIN, IrDA, modem control) and 2x LPUART 6 SPIs with 4 with muxed duplex I2S and 3x USART configured in synchronous mode (9 SPIs)
2x SAI (serial audio interface)
2x FD-CAN
16-bit parallel slave synchronous interface
SPDIF-IN interface, HDMI-CEC
Ethernet MAC interface with DMA controller
1 USB Type-C/USB power delivery controller 1 USB OTG full-speed with embedded PHY 1 USB OTG high-speed with embedded PHY
ECOPACK2 compliant packages
