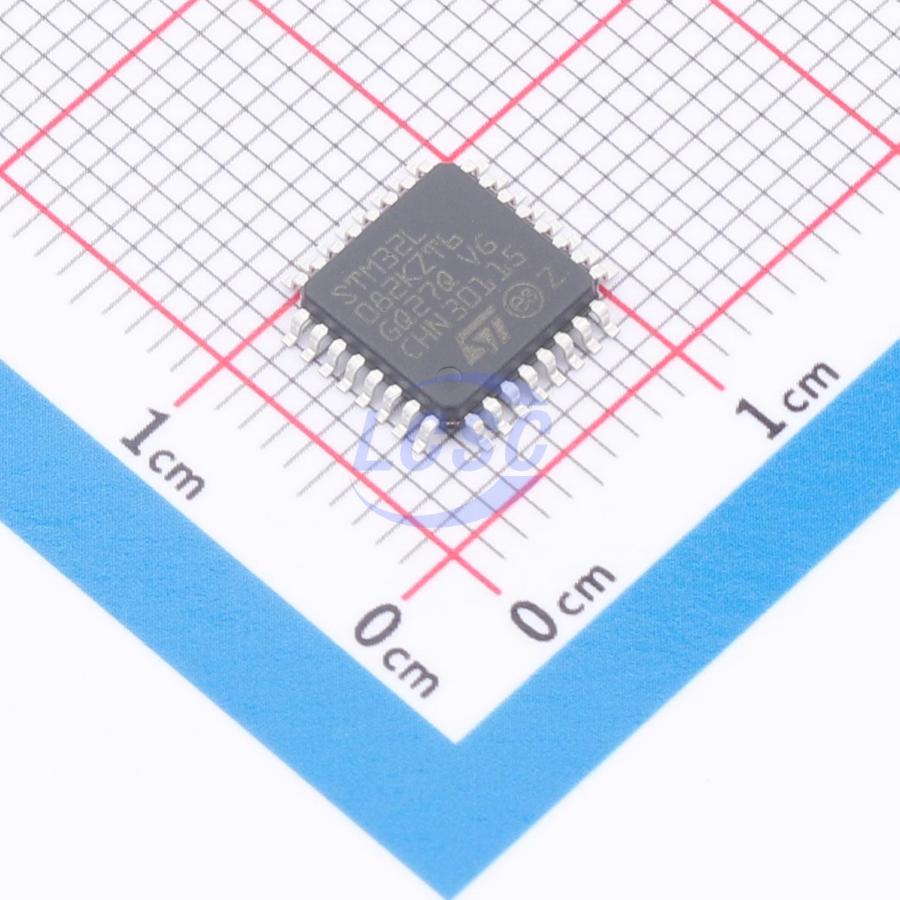

STM32L082KZT6

ARM Cortex-M0+ 32 Bit 32MHz LQFP-32(7x7) Microcontrollers RoHS

LQFP-32(7x7)ROHS3 CompliantActive

Ultra-low power Arm Cortex-M0+ MCU with 192-KB Flash, 32 MHz CPU, USB, and AES

Manufacturer: ST
Manufacturer part #: STM32L082KZT6
Store part #: C1339815
Package / case: LQFP-32(7x7)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13 in stock

#C1339815

Stock & price checked 37 h ago

Quantity	Unit price	Pack price
1+	₹812.79	₹812.79
10+	₹794.33	₹7,943.30
30+	₹781.96	₹23,458.80
100+	₹769.59	₹76,959.00

Quantity (min 1)

1 × ₹812.79

₹812.79

excl. GST

₹959.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,500 per tray

STM32L082KZT6

₹812.79 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

DAC (Bit): 12bit
ADC (Bit): 12bit
Number of I/O: 23
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.8V~3.6V
Program Memory Type: FLASH
EEPROM: 6KB
Program Storage Size: 192KB
CPU Core: ARM Cortex-M0+
Core Size: 32 Bit
CPU Maximum Speed: 32MHz
Oscillator Type: Built-in

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 5A992C
Packaging: Tray
Standard pack: 1,500 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.001 g

Overview

Ultra-low-power 32-bit MCU Arm-based Cortex-M0+, up to 192KB Flash, 20KB SRAM, 6KB EEPROM, USB, ADC, DACs, AES

Key features

Ultra-low-power platform
1.65 V to 3.6 V power supply
-40 to 125 ℃ temperature range
0.29 μA Standby mode (3 wakeup pins)
0.43 μA Stop mode (16 wakeup lines)
0.86 μA Stop mode + RTC + 20-Kbyte RAM retention
Down to 93 μA/MHz in Run mode
5 μs wakeup time (from Flash memory)
41 μA 12-bit ADC conversion at 10 ksps
Core: Arm 32-bit Cortex-M0+ with MPU – From 32 kHz up to 32 MHz max. 0.95 DMIPS/MHz
Up to 192-Kbyte Flash memory with ECC (2 banks with read-while-write capability)
20-Kbyte RAM
6 Kbytes of data EEPROM with ECC
20-byte backup register
Sector protection against R/W operation
Up to 40 fast I/Os (34 I/Os 5V tolerant)
Ultra-safe, low-power BOR (brownout reset) with 5 selectable thresholds
Ultra-low-power POR/PDR
Programmable voltage detector (PVD)
1 to 25 MHz crystal oscillator
32 kHz oscillator for RTC with calibration
High speed internal 16 MHz factory-trimmed RC (+/-1%)
Internal low-power 37 kHz RC
Internal multispeed low-power 65 kHz to 4.2 MHz RC
Internal self calibration of 48 MHz RC for USB
PLL for CPU clock
Pre-programmed bootloader – USB, USART supported
Development support – Serial wire debug supported
12-bit ADC 1.14 Msps, up to 13 channels (down to 1.65 V)
2 x 12-bit channel DACs with output buffers (down to 1.8 V)
2x ultra-low-power comparators (window mode and wake up capability, down to 1.65 V)
Up to 19 capacitive sensing channels supporting touchkey, linear and rotary touch sensors
7-channel DMA controller, supporting ADC, SPI, I2C, USART, DAC, Timers, AES
11x peripheral communication interfaces
1x USB 2.0 crystal-less, battery charging detection and LPM
4x USART (2 with ISO 7816, IrDA), 1x UART (low power)
Up to 6x SPI 16 Mbits/s
3x I2C (2 with SMBus/PMBus)
11x timers: 2x 16-bit with up to 4 channels, 2x 16-bit with up to 2 channels, 1x 16-bit ultra-low-power timer, 1x SysTick, 1x RTC, 2x 16-bit basic for DAC, and 2x watchdogs (independent/window)
