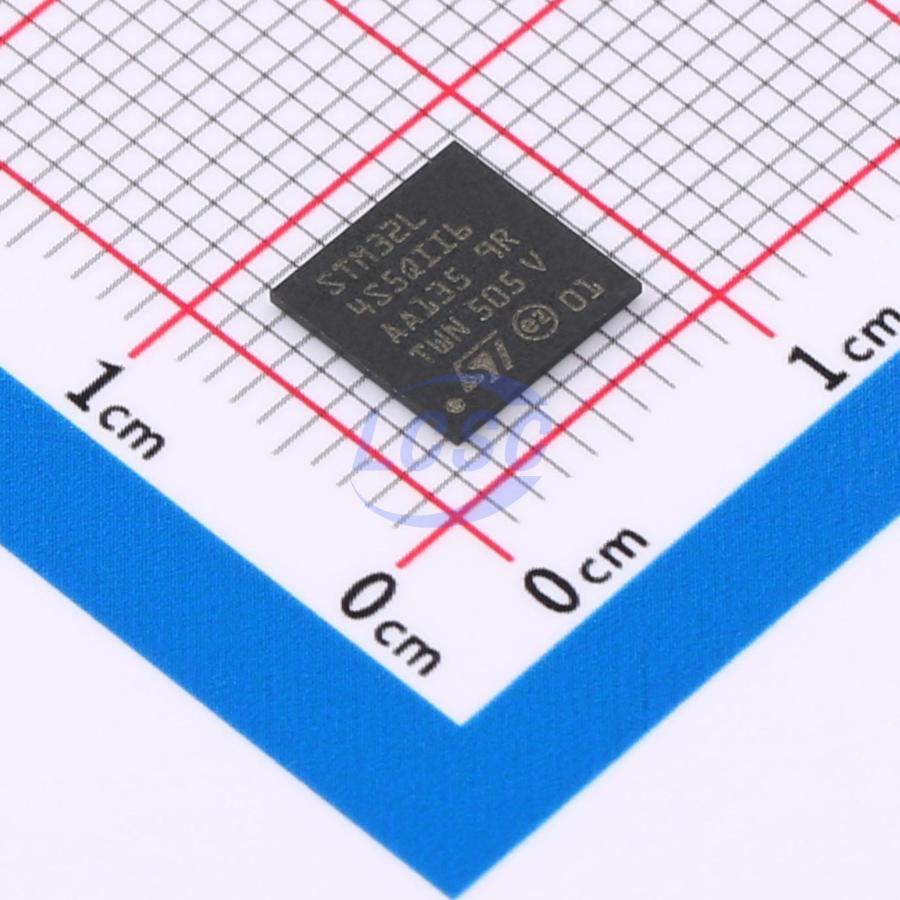

STM32L4S5QII6

Ultra-low-power Arm® Cortex®-M4 32-bit MCU+FPU, 150DMIPS, up to 2MB Flash, 640KB SRAM, LCD-TFT and MIPI DSI support, with AES+HASH.

Key features

• Ultra-low-power with FlexPowerControl
• 1.71 V to 3.6 V power supply
• -40 °C to 85/125 °C temperature range
• Batch acquisition mode (BAM)
• 305 nA in VBAT mode: supply for RTC and 32x32-bit backup registers
• 33 nA Shutdown mode (5 wakeup pins)
• 125 nA Standby mode (5 wakeup pins)
• 420 nA Standby mode with RTC
• 2.8 μA Stop 2 with RTC
• 110 μA/MHz Run mode
• 5 μs wakeup from Stop mode
• Brownout reset (BOR) in all modes except Shutdown
• Interconnect matrix
• Core: Arm® 32-bit Cortex®-M4 CPU with FPU, adaptive real-time accelerator (ART Accelerator) allowing 0-wait-state execution from Flash memory, frequency up to 120 MHz, MPU, 150 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
• Performance benchmark 1.25 DMIPS/MHz (Drystone 2.1) 409.20 CoreMark® (3.41 CoreMark/MHz @120 MHz)
• 233 ULPMark™CP score
• 56.5 ULPMark™PP score
• Clock sources: 4 to 48 MHz crystal oscillator, 32 kHz crystal oscillator for RTC (LSE), Internal 16 MHz factory-trimmed RC (±1%), Internal low-power 32 kHz RC (±5%), Internal multispeed 100 kHz to 48 MHz oscillator, auto-trimmed by LSE (better than ±0.25% accuracy), Internal 48 MHz with clock recovery
• 3 PLLs for system clock, USB, audio, ADC
• RTC with hardware calendar, alarms and calibration
• Up to 24 capacitive sensing channels: support touchkey, linear and rotary touch sensors
• Advanced graphics features: Chrom-ART Accelerator (DMA2D) for enhanced graphic content creation, Chrom-GRC (GFXMMU) allowing up to 20% of graphic resources optimization, MIPI DSI Host controller with two DSI lanes running at up to 500 Mbit/s each, LCD-TFT controller
• 16x timers: 2x16-bit advanced motor-control, 2x32-bit and 5 x 16-bit general purpose, 2x 16-bit basic, 2x low-power 16-bit timers (available in Stop mode), 2x watchdogs, SysTick timer
• Up to 136 fast I/O, most 5 V-tolerant, up to 14 I/O with independent supply down to 1.08 V
• Memories: 2-Mbyte Flash, 2 banks read-while-write, proprietary code readout protection, 640 Kbytes of SRAM including 64 Kbytes with hardware parity check, External memory interface for static memories supporting SRAM, PSRAM, NOR, NAND and FRAM memories, 2 x Octo-SPI memory interface
• 4x digital filters for sigma delta modulator
• Rich analog peripherals (independent supply): 12-bit ADC 5 Msps, up to 16-bit with hardware oversampling, 200 μA/Msps, 2x 12-bit DAC, low-power sample and hold, 2x operational amplifiers with built-in PGA, 2x ultra-low-power comparators
• USB OTG 2.0 full-speed, LPM and BCD
• 2x SAIs (serial audio interface)
• 4x I²C FM+(1 Mbit/s), SMBus/PMBus
• 6x USARTs (ISO 7816, LIN, IrDA, modem)
• 2x SPIs (5x SPIs with the dual Octo-SPI)
• CAN (2.0B Active) and SDMMC
• 14-channel DMA controller
• True random number generator
• CRC calculation unit, 96-bit unique ID
• 8- to 14-bit camera interface up to 32 MHz (black and white) or 10 MHz (color)
• Encryption hardware accelerator: AES (128/256-bit key), HASH (SHA-256)
• Development support: serial wire debug (SWD), JTAG, Embedded Trace Macrocell™ (ETM)
