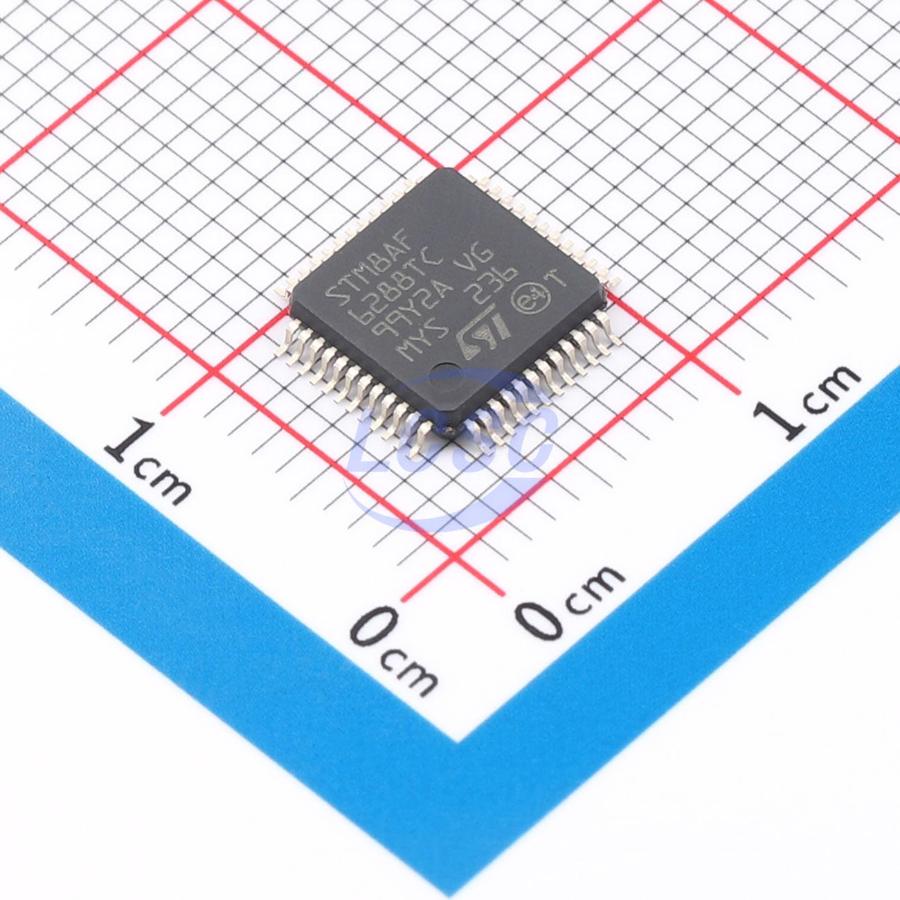

STM8AF6288TCX

Key features

• AEC-Q10x qualified
• Core:
• Max fCPU: 24 MHz
• Advanced STM8A core with Harvard architecture and 3-stage pipeline
• Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark
• Memory:
• Program memory: 32 to 128 Kbyte Flash program; data retention 20 years at 55°C
• Data memory: up to 2 Kbyte true data EEPROM; endurance 300 key/le
• Clock Management:
• Low-power crystal resonator oscillator with external clock input
• Internal, user-trimmable 16 MHz RC and low-power 128 kHz RC oscillators
• Clock security system with clock monitor
• Reset and Power Management:
• Wait/auto-wakeup/Halt/low-power modes with user definable clock gating
• Low consumption power-on and power-down reset
• Interrupt Management:
• Nested interrupt controller with 32 vectors
• Up to 37 external interrupts on 5 vectors
• Timers:
• 2 general purpose 16-bit timers with up to 3 CAPCOM channels each (IC, OC, PWM)
• Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
• 8-bit AR basic timer with 8-bit prescaler
• Auto-wakeup timer
• Window and independent watchdog timers
• I/O:
• Up to 68 user pins (11 high sink I/Os)
• Highly robust I/O design, immune against current injection
• Communication Interfaces:
• High speed 1 Mbit/s CAN 2.0B interface
• USART with clock output for synchronous operation
• LIN master mode
• LINUART LIN 2.2 compliant, master/slave modes with automatic resynchronization
• SPI interface up to 10 Mbit/s or TMASTER/2
• I²C interface up to 400 Kbit/s
• ADC:
• 10-bit resolution, 2 LSB TUE, 1 LSB linearity and up to 16 multiplexed channels
• Operating temperature up to 150°C
• Qualification conforms to AEC-Q100 grade 0
