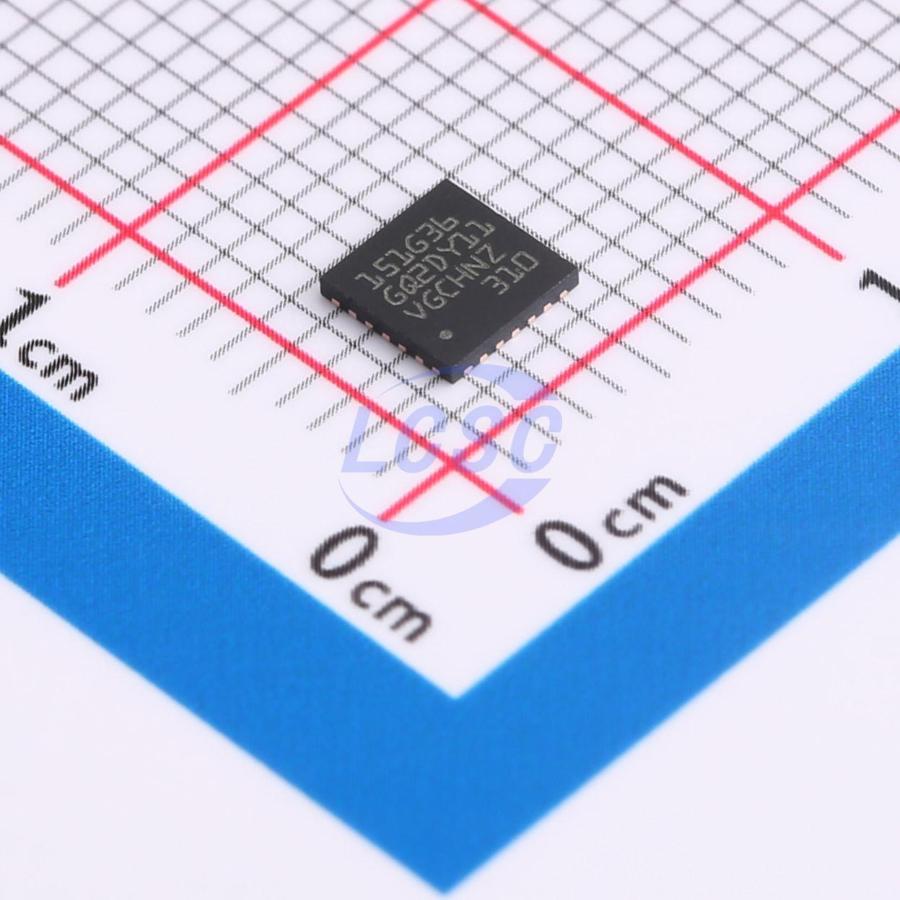

STM8L151G3U6

This product is a microcontroller based on the STM8 core, featuring low power consumption, multiple peripheral interfaces, and flexible memory configurations.

Key features

• Operating power supply: 1.65 to 3.6V (without BOR), 1.8 to 3.6V (with BOR)
• Temperature range: -40 to 85 or 125°C
• 5 low-power modes: Wait, Low power run, Low-power wait, Active-halt with RTC, Halt
• Ultra-low leakage per I/O: 50 nA
• Fast wakeup from Halt: 5 μs
• Harvard architecture and 3-stage pipeline
• Max freq: 16 MHz, 16 CISC MIPS peak
• Up to 40 external interrupt sources
• Low-power, ultra safe BOR reset with 5 selectable thresholds
• Ultra-low power POR/PDR
• Programmable voltage detector (PVD)
• 32 kHz and 1 - 16 MHz crystal oscillators
• Internal 16 MHz factory-trimmed RC
• Internal 38 kHz low consumption RC
• Clock security system
• BCD calendar with alarm interrupt
• Digital calibration with +/- 0.5 ppm accuracy
• LSE security system
• Auto-wakeup from Halt w/ periodic interrupt
• Up to 8 Kbyte of Flash program memory plus 256 byte of data EEPROM with ECC
• Flexible write/read protection modes
• 1 Kbyte of RAM
• 4 channels supporting ADC, SPI, I²C, USART, timers
• 1 channel for memory-to-memory
• 12-bit ADC up to 1 Msps/28 channels
• Temp. sensor and internal ref. voltage
• 2 ultra-low-power comparators
• 1 with fixed threshold and 1 rail to rail
• Wakeup capability
• Two 16-bit timers with 2 channels (IC, OC, PWM), quadrature encoder (TIM2, TIM3)
• One 8-bit timer with 7-bit prescaler (TIM4)
• 1 Window and 1 independent watchdog
• Beeper timer with 1, 2 or 4 kHz frequencies
• One synchronous serial interface (SPI)
• Fast I²C 400 kHz
• One USART
• Up to 41 I/Os, all mappable on interrupt vectors
• Up to 20 capacitive sensing channels supporting touchkey, proximity touch, linear touch, and rotary touch sensors
• Fast on-chip programming and non-intrusive debugging with SWIM
• Bootloader using USART
• 96-bit unique ID
