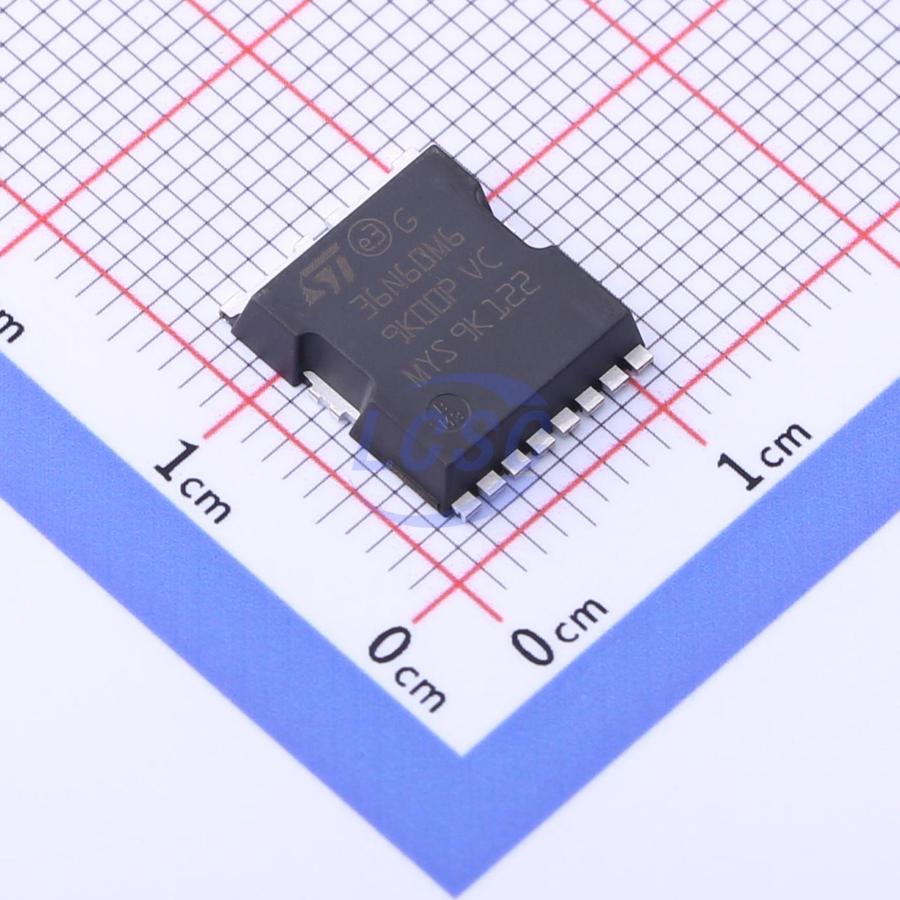

STO36N60M6
N-Channel 600V 30A 230W Surface Mount TOLL
TOLLROHS3 CompliantActive
MOSFET N-CH 600V 30A TOLL
- Manufacturer
- ST
- Manufacturer part #
- STO36N60M6
- Store part #
- C2978937
- Package / case
- TOLL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
63 in stock
#C2978937
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹499.33 | ₹499.33 |
| 10+ | ₹426.56 | ₹4,265.60 |
| 30+ | ₹381.17 | ₹11,435.10 |
| 100+ | ₹320.14 | ₹32,014.00 |
| 500+ | ₹299.08 | ₹1,49,540.00 |
| 1,000+ | ₹289.95 | ₹2,89,950.00 |
1 × ₹499.33
₹499.33
excl. GST
₹589.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
STO36N60M6
₹499.33 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 93pF
- Ciss-Input Capacitance
- 1.96nF
- Pd - Power Dissipation
- 230W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 30A
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 99mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 44.3nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4.75V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.82 g
Overview
The new MDmesh M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. It combines excellent RDS(on) per area improvement with one of the most effective switching behaviors available, as well as a user-friendly experience for maximum end-application efficiency.
Applications
- Switching applications
Key features
- Reduced switching losses
- Lower on-resistance per unit area (RDS(on)) compared to previous generation
- Low gate input resistance
- 100% avalanche tested
- Zener protection
- Superior switching performance with additional drive source pin
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WTM40N65FTL#C46079383WPMtek · TOLL-8L | WPMtek | TOLL-8L | 74 | ₹254.88 · 74 in stock | View |
 | STO67N60DM6#C3281865ST · TO-LL | ST | TO-LL | 6 | ₹3,247.07 · 6 in stock | View |
 | ASR65R120EFD#C22470091ANHI · TOLL-8L | ANHI | TOLL-8L | 62 | ₹245.77 · 62 in stock | View |
 | WTM54N65FTL#C46079382WPMtek · TOLL-8 | WPMtek | TOLL-8 | 7 | ₹402.88 · 7 in stock | View |
 | STO67N60M6#C3291321ST · TO-LL | ST | TO-LL | 3 | ₹832.01 · 3 in stock | View |
