STDatasheet (PDF)

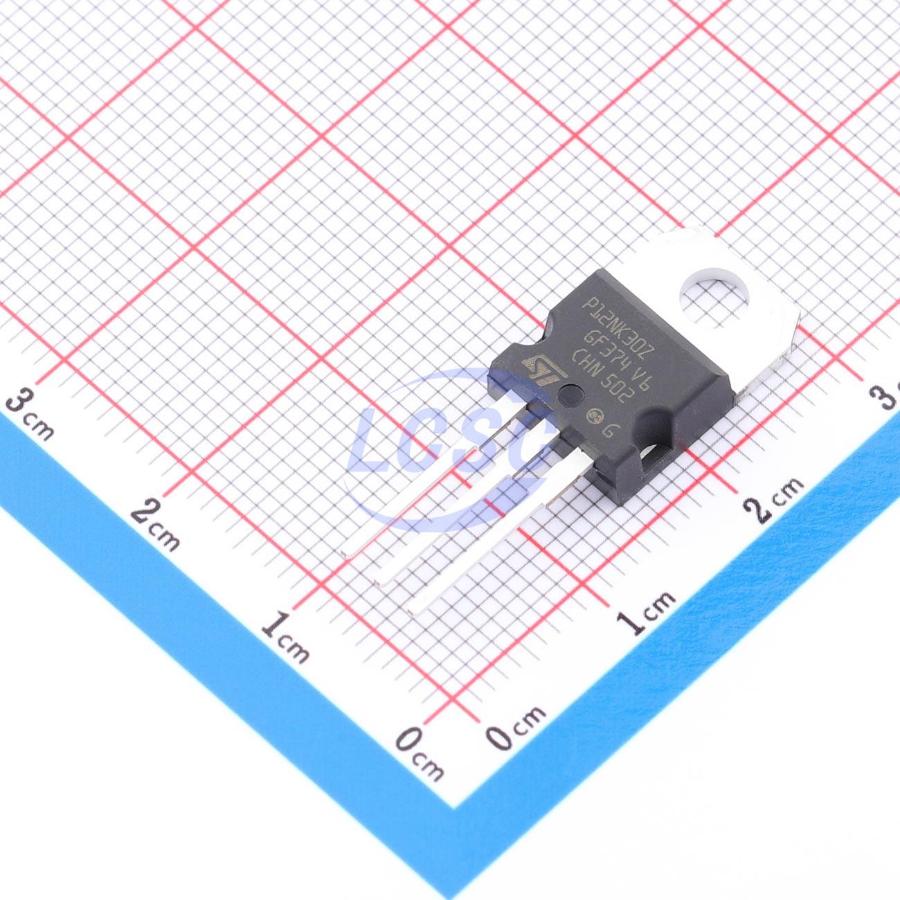

STP12NK30Z
90W 300V 9A 400mΩ@10V 1 N-channel N-Channel TO-220-3 Single FETs, MOSFETs RoHS
TO-220-3ROHS3 CompliantActive
N-Channel, Current:9A, Voltage:300V
- Manufacturer
- ST
- Manufacturer part #
- STP12NK30Z
- Store part #
- C2970130
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
132 in stock
#C2970130
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.50 | ₹147.50 |
| 10+ | ₹145.13 | ₹1,451.30 |
| 30+ | ₹143.62 | ₹4,308.60 |
| 100+ | ₹141.90 | ₹14,190.00 |
1 × ₹147.50
₹147.50
excl. GST
₹174.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP12NK30Z
₹147.50 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 125pF
- Ciss-Input Capacitance
- 670pF
- Pd - Power Dissipation
- 90W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 300V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 28pF
- RDS(on)
- 400mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.425 g
Overview
The SuperMESH™ series is derived from extreme optimization of ST's well-established strip-based PowerMESH™ layout. In addition to significantly reducing on-resistance, special emphasis has been placed on ensuring excellent dv/dt performance in the most demanding applications. This series completes ST's full lineup of high-voltage MOSFETs, which includes the groundbreaking MDmesh™ products.
Applications
- Lighting
- Ideal for offline power supplies, adapters, and power factor correction (PFC)
- High-current, high-speed switching
Key features
- Typical R<sub>DS(on)</sub> = 0.36 Ω
- Extremely high dv/dt performance
- Enhanced ESD performance
- 100% avalanche rated
- Minimal gate charge
- Ultra-low intrinsic capacitance
- Excellent manufacturing repeatability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBM165R11S#C42412848VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹264.72 · 10 in stock | View |
 | HMS8N70-VB#C20754997VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 7 | ₹171.58 · 7 in stock | View |
 | STP11NK40Z#C2970862ST · TO-220 | ST | TO-220 | 6 | ₹380.19 · 6 in stock | View |
| FCP260N65S3#C605001onsemi · TO-220 | onsemi | TO-220 | 50 | ₹385.81 · 50 in stock | View | |
 | 18NM65L-TA3-T#C5310384UTC · TO-220 | UTC | TO-220 | 449 | ₹101.58 · 449 in stock | View |
