HXY MOSFETDatasheet (PDF)

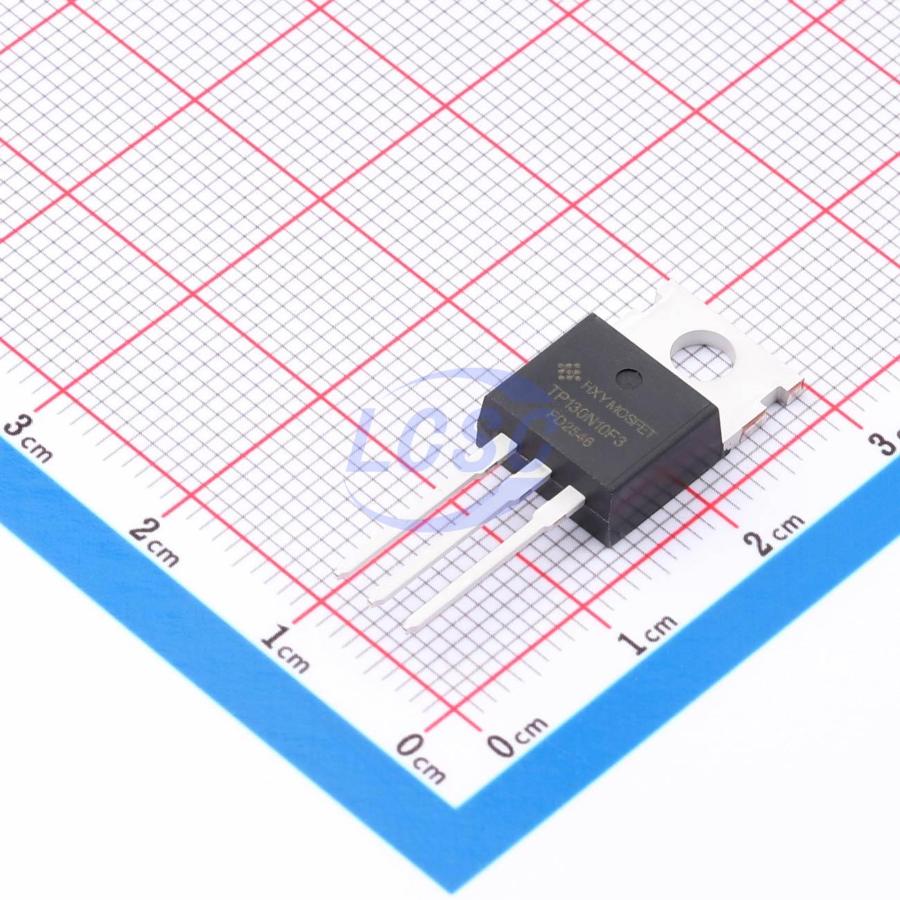

STP130N10F3-HXY
100W 100V 70A 8.5mΩ@10V 1 N-channel N-Channel TO-220C Single FETs, MOSFETs
TO-220CRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- STP130N10F3-HXY
- Store part #
- C53262947
- Package / case
- TO-220C
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C53262947
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.67 | ₹140.67 |
| 10+ | ₹115.55 | ₹1,155.50 |
| 50+ | ₹102.88 | ₹5,144.00 |
| 100+ | ₹90.43 | ₹9,043.00 |
| 500+ | ₹82.91 | ₹41,455.00 |
| 1,000+ | ₹79.04 | ₹79,040.00 |
1 × ₹140.67
₹140.67
excl. GST
₹165.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP130N10F3-HXY
₹140.67 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 451pF
- Ciss-Input Capacitance
- 1.368nF
- Pd - Power Dissipation
- 100W
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 70A
- Reverse Transfer Capacitance (Crss)
- 12.9pF
- RDS(on)
- 8.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31.3nC@50V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.012 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD19533KCS-HXY#C53262894HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 12 | ₹150.82 · 12 in stock | View |
 | IRFB4410PBF-HXY#C53262895HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 39 | ₹148.41 · 39 in stock | View |
 | STP120NF10-HXY#C53262905HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 30 | ₹97.45 · 30 in stock | View |
 | SUP85N10-10-E3-HXY#C53262906HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 49 | ₹246.55 · 49 in stock | View |
 | SUP85N10-10-GE3-HXY#C53262909HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 48 | ₹394.11 · 48 in stock | View |
