STDatasheet (PDF)

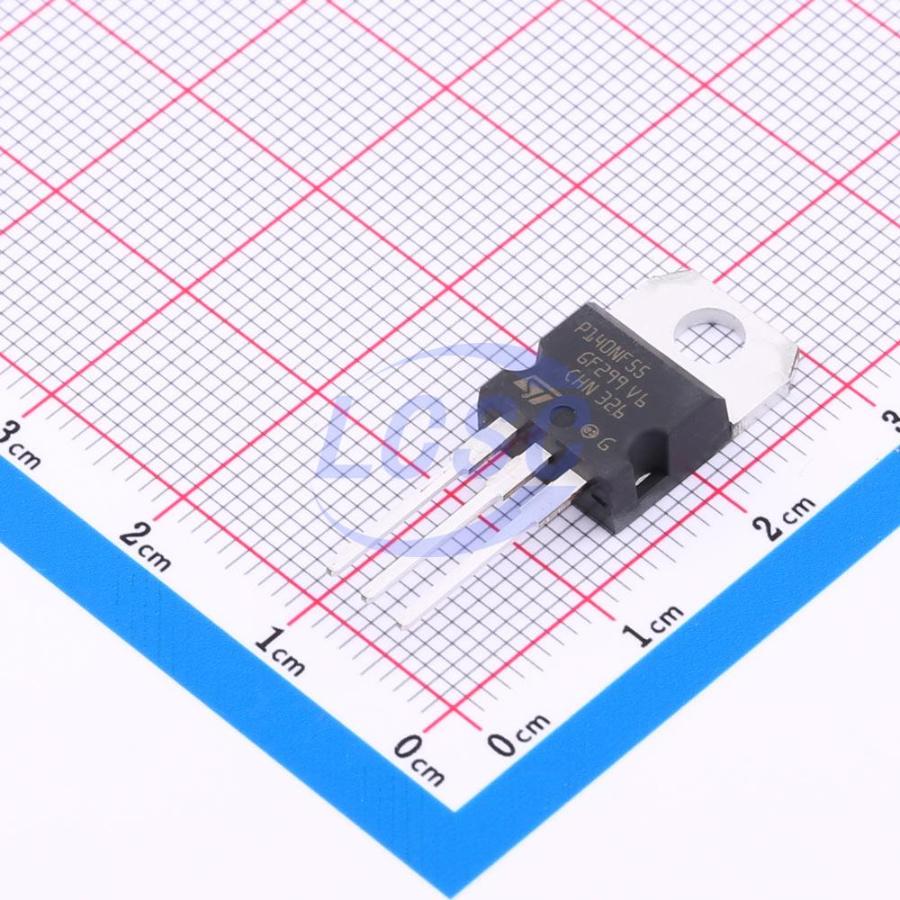

STP140NF55
N-Channel 55V 80A 300W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 55V 80A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP140NF55
- Store part #
- C2970532
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C2970532
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹321.11 | ₹321.11 |
| 10+ | ₹314.12 | ₹3,141.20 |
| 30+ | ₹309.61 | ₹9,288.30 |
| 100+ | ₹304.89 | ₹30,489.00 |
1 × ₹321.11
₹321.11
excl. GST
₹378.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP140NF55
₹321.11 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 55V
- Output Capacitance(Coss)
- 1nF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 5.3nF
- Pd - Power Dissipation
- 300W
- Reverse Transfer Capacitance (Crss)
- 290pF
- RDS(on)
- 8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 142nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.78 g
Overview
This Power MOSFET is the latest development of unique “Single Feature Size™” strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalance characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.
Applications
- Motor control
- High current, switching application
Key features
- Current limited by package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STP140NF75#C457466ST · TO-220 | ST | TO-220 | 295 | ₹218.04 · 295 in stock | View |
 | STP80NF06#C283533ST · TO-220 | ST | TO-220 | 37 | ₹508.53 · 37 in stock | View |
 | OSP150N08G#C20607801OSEN · TO-220 | OSEN | TO-220 | 21 | ₹49.51 · 21 in stock | View |
 | IRF1407PBF#C2609Infineon · TO-220AB | Infineon | TO-220AB | 21,278 | ₹116.29 · 21,278 in stock | View |
 | JCS3205CH-220C#C272582Jilin Sino-Microelectronics · TO-220 | Jilin Sino-Microelectronics | TO-220 | 5 | ₹74.76 · 5 in stock | View |
