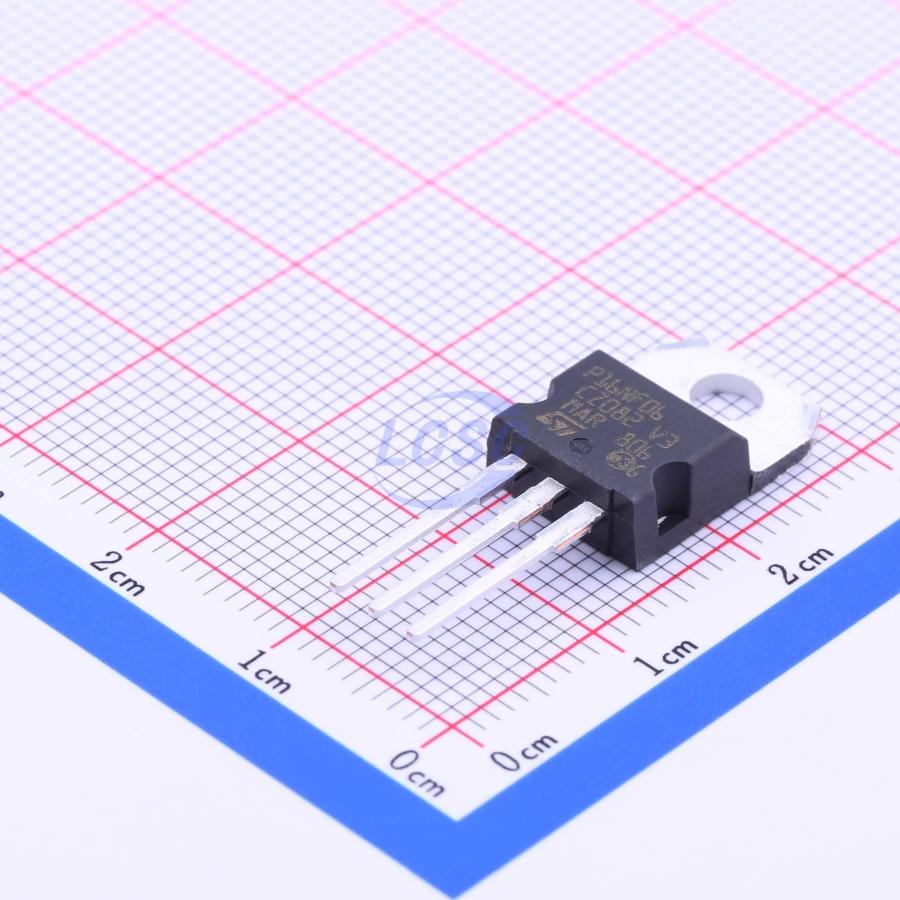

STP16NF06
N-Channel 60V 16A 45W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 60V 16A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP16NF06
- Store part #
- C22026
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
188 in stock
#C22026
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.69 | ₹116.69 |
| 10+ | ₹95.14 | ₹951.40 |
| 30+ | ₹84.25 | ₹2,527.50 |
| 100+ | ₹73.59 | ₹7,359.00 |
| 500+ | ₹67.27 | ₹33,635.00 |
| 1,000+ | ₹64.01 | ₹64,010.00 |
1 × ₹116.69
₹116.69
excl. GST
₹137.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP16NF06
₹116.69 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 70pF
- Ciss-Input Capacitance
- 315pF
- Pd - Power Dissipation
- 45W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 16A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 100mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
This Power MOSFET is the latest development of unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.
Applications
- Switching application
Key features
- Exceptional dv/dt capability
- Low gate charge at 100°C
- Application oriented characterization
