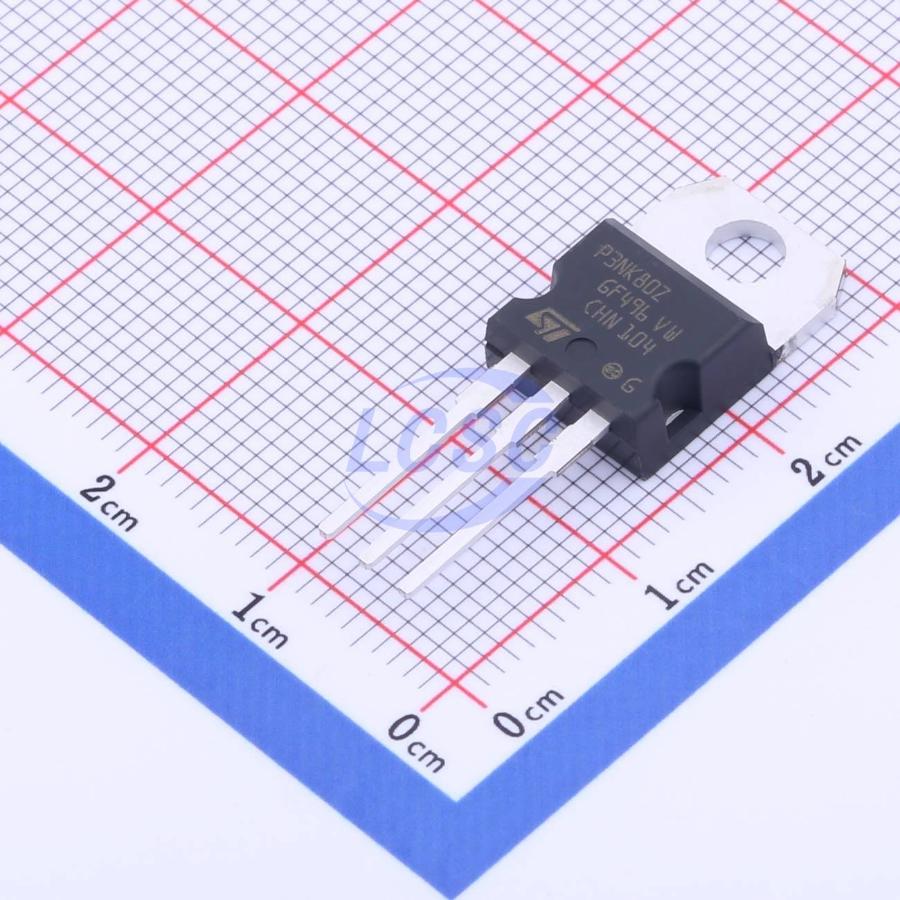

STP3NK80Z
N-Channel 800V 2.5A 70W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 800V 2.5A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP3NK80Z
- Store part #
- C726100
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
288 in stock
#C726100
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹203.36 | ₹203.36 |
| 10+ | ₹166.46 | ₹1,664.60 |
| 30+ | ₹146.28 | ₹4,388.40 |
| 100+ | ₹123.49 | ₹12,349.00 |
| 500+ | ₹113.29 | ₹56,645.00 |
| 1,000+ | ₹108.74 | ₹1,08,740.00 |
1 × ₹203.36
₹203.36
excl. GST
₹239.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP3NK80Z
₹203.36 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Output Capacitance(Coss)
- 57pF
- Current - Continuous Drain(Id)
- 2.5A
- Ciss-Input Capacitance
- 485pF
- Pd - Power Dissipation
- 70W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 3.6Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.75V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.66 g
Overview
This high-voltage device is a Zener-protected N-channel Power MOSFET developed using the SuperMESH technology, an optimization of the well-established PowerMESH. In addition to a significant reduction in on-resistance, this device is designed to ensure a high level of dv/dt capability for the most demanding applications.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Minimized gate charge
- Ultra-low intrinsic capacitance
- Zener protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MS5N100FT#C5139246MASPOWER · TO-220 | MASPOWER | TO-220 | 152 | ₹99.97 · 152 in stock | View |
 | STP4NK80Z#C411401ST · TO-220 | ST | TO-220 | 32 | ₹201.65 · 32 in stock | View |
| 2SK3566(STA4,Q,M)#C2681118TOSHIBA · TO-220-3 | TOSHIBA | TO-220-3 | 929 | ₹98.18 · 929 in stock | View | |
 | MS10N100HGT1#C7424091MASPOWER · TO-220 | MASPOWER | TO-220 | 55 | ₹158.93 · 55 in stock | View |
 | SIHP5N80AE-GE3#C3290410VISHAY · TO-220AB | VISHAY | TO-220AB | 6 | ₹275.71 · 6 in stock | View |
