VBsemi ElecDatasheet (PDF)

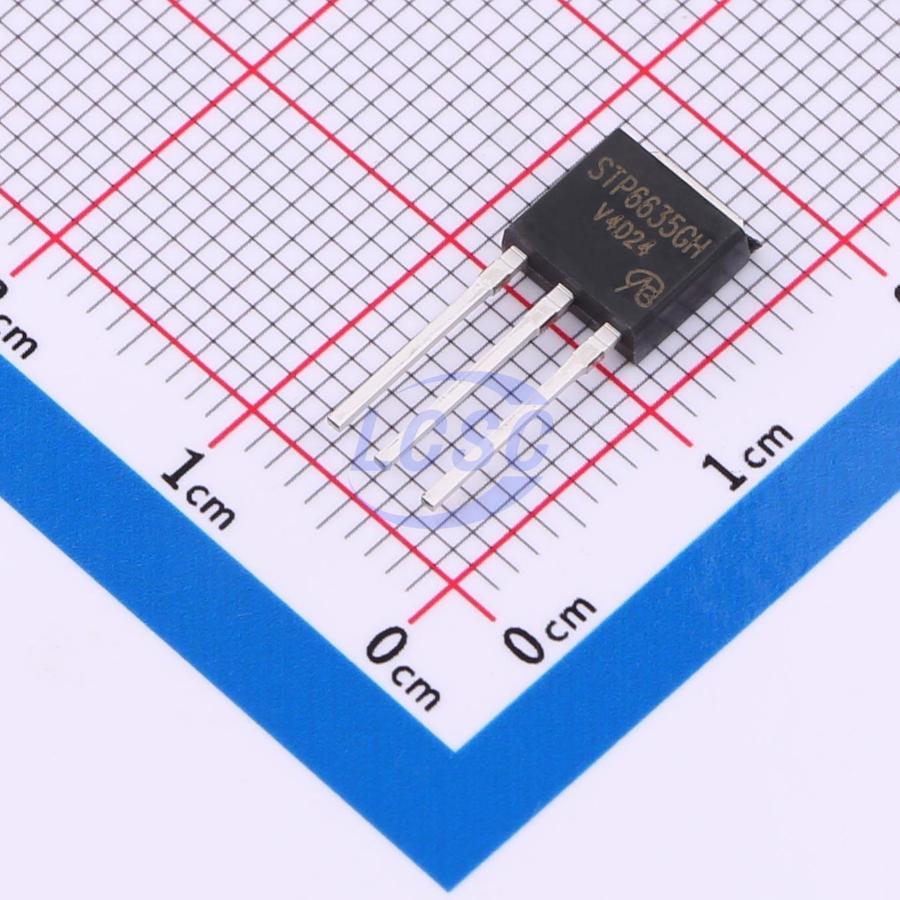

STP6635GH.-VB
P-Channel 30V 40A 32W Through Hole TO-251
TO-251RoHSActive
MOSFET P-CH 30V 40A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP6635GH.-VB
- Store part #
- C22389086
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22389086
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.76 | ₹61.76 |
| 10+ | ₹48.53 | ₹485.30 |
| 30+ | ₹42.85 | ₹1,285.50 |
| 80+ | ₹35.72 | ₹2,857.60 |
| 480+ | ₹32.56 | ₹15,628.80 |
| 960+ | ₹30.68 | ₹29,452.80 |
1 × ₹61.76
₹61.76
excl. GST
₹72.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
STP6635GH.-VB
₹61.76 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 1.455nF
- Pd - Power Dissipation
- 32W
- Reverse Transfer Capacitance (Crss)
- 145pF
- RDS(on)
- 22mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 38nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.01 g
Overview
Applications
- Load Switch
- Battery Switch
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- 100 % Rg Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CED4311-VB#C22389271VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹61.76 · 10 in stock | View |
 | CED3301-VB#C22389714VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹61.76 · 10 in stock | View |
 | VBFB2317#C480973VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 29 | ₹81.64 · 29 in stock | View |
 | AP4435GJ-VB#C724976VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 32 | ₹70.83 · 32 in stock | View |
 | CED4301-VB#C19711199VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹75.62 · 10 in stock | View |
