VBsemi ElecDatasheet (PDF)

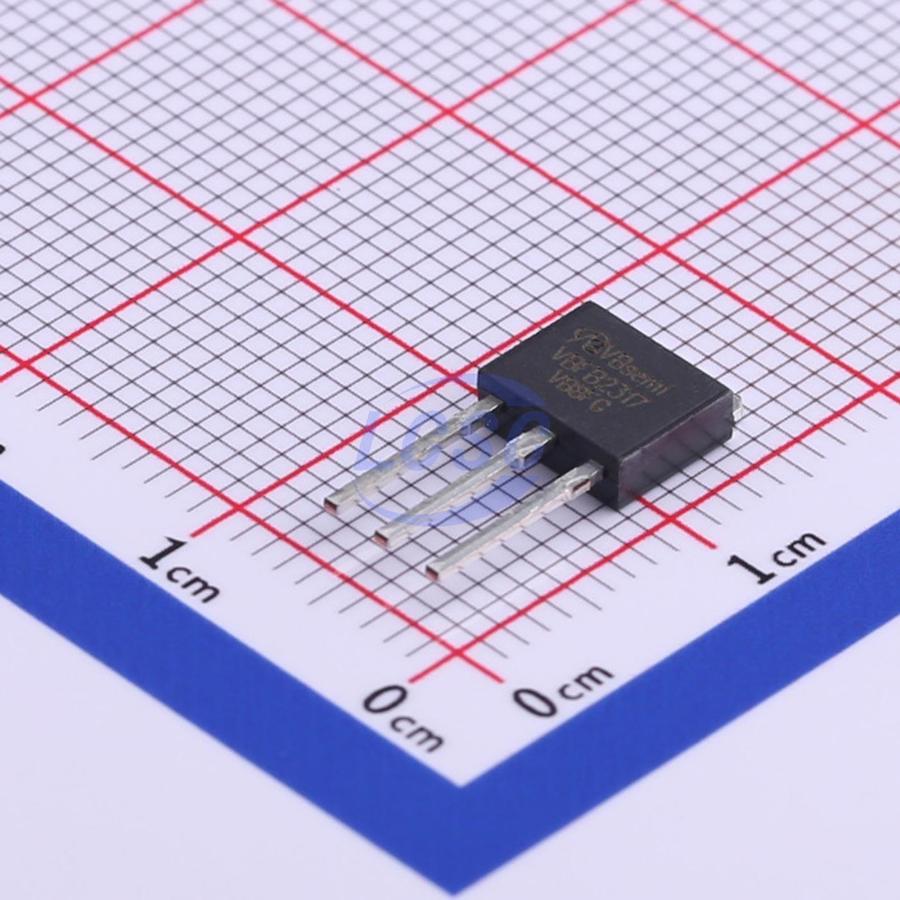

VBFB2317
P-Channel 30V 40A 40W Through Hole TO-251
TO-251RoHSActive
MOSFET P-CH 30V 40A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBFB2317
- Store part #
- C480973
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C480973
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.64 | ₹81.64 |
| 10+ | ₹67.92 | ₹679.20 |
| 30+ | ₹62.05 | ₹1,861.50 |
| 80+ | ₹39.41 | ₹3,152.80 |
| 480+ | ₹36.14 | ₹17,347.20 |
| 800+ | ₹34.19 | ₹27,352.00 |
1 × ₹81.64
₹81.64
excl. GST
₹96.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
VBFB2317
₹81.64 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 1.455nF
- Pd - Power Dissipation
- 40W
- Reverse Transfer Capacitance (Crss)
- 145pF
- RDS(on)
- 18mΩ@10V;22mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 25nC@10V;13nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.601 g
Overview
Applications
- Load Switch
- Battery Switch
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CED4311-VB#C22389271VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹61.76 · 10 in stock | View |
 | CED3301-VB#C22389714VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹61.76 · 10 in stock | View |
 | AP4435GJ-VB#C724976VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 32 | ₹70.83 · 32 in stock | View |
 | STP6635GH.-VB#C22389086VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹61.76 · 10 in stock | View |
 | CED4301-VB#C19711199VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹75.62 · 10 in stock | View |
