STDatasheet (PDF)

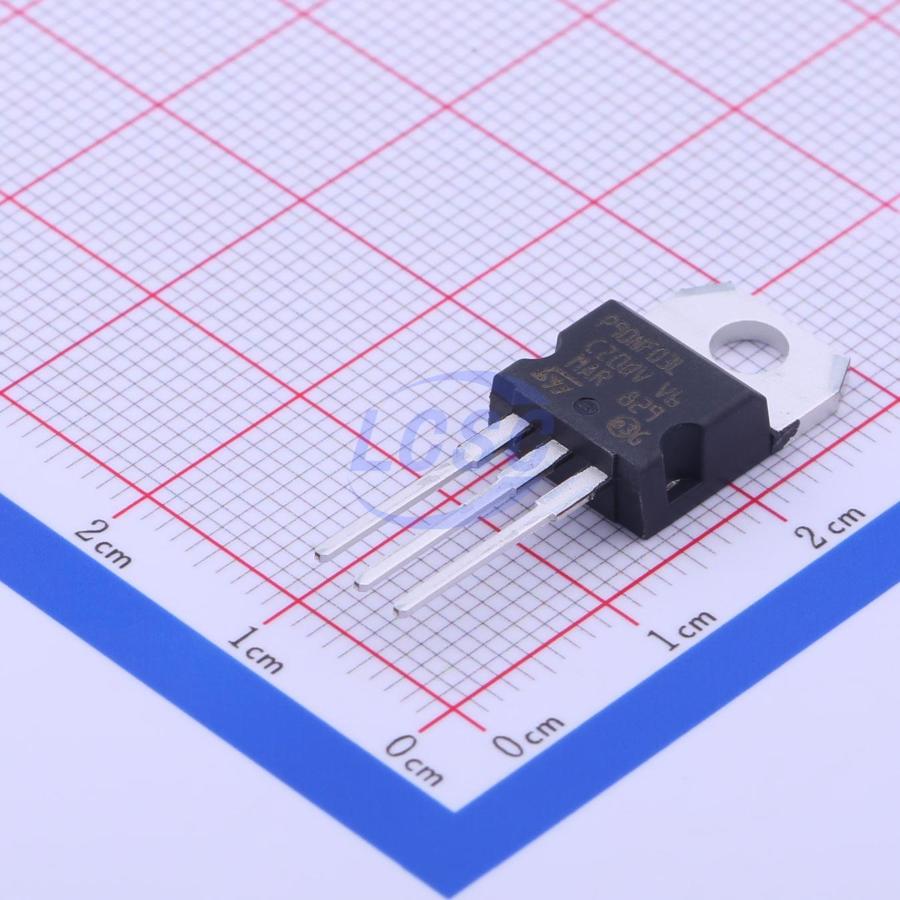

STP90NF03L
N-Channel 30V 90A 150W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 30V 90A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP90NF03L
- Store part #
- C60612
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
165 in stock
#C60612
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.99 | ₹142.99 |
| 10+ | ₹119.52 | ₹1,195.20 |
| 50+ | ₹106.70 | ₹5,335.00 |
| 100+ | ₹92.15 | ₹9,215.00 |
| 500+ | ₹85.62 | ₹42,810.00 |
| 1,000+ | ₹82.58 | ₹82,580.00 |
1 × ₹142.99
₹142.99
excl. GST
₹168.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP90NF03L
₹142.99 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 860pF
- Ciss-Input Capacitance
- 2.7nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -65℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 90A
- Reverse Transfer Capacitance (Crss)
- 170pF
- RDS(on)
- 5.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
This application specific Power Mosfet is the third generation of unique “Single Feature Size™” strip-based process. The resulting transistor shows the best trade-off between on-resistance and gate charge. When used as high and low side in buck regulators, it gives the best performance in terms of both conduction and switching losses. This is extremely important for motherboards where fast switching and high efficiency are of paramount importance.
Applications
- Switching application
Key features
- Optimal RDS(on)×Qg trade-off
- Conduction losses reduced
- Switching losses reduced
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STP110N10F7#C472621ST · TO-220 | ST | TO-220 | 124 | ₹207.31 · 124 in stock | View |
 | MGP054N08N#C49242756Megain · TO-220 | Megain | TO-220 | 1,008 | ₹39.94 · 1,008 in stock | View |
 | AUP039N10#C18722994ANHI · TO-220 | ANHI | TO-220 | 396 | ₹91.42 · 396 in stock | View |
 | LNC04R035B#C483691LONTEN · TO-220 | LONTEN | TO-220 | 4 | ₹86.83 · 4 in stock | View |
 | CSD18504KCS-VB#C22389717VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 54 | ₹131.49 · 54 in stock | View |
