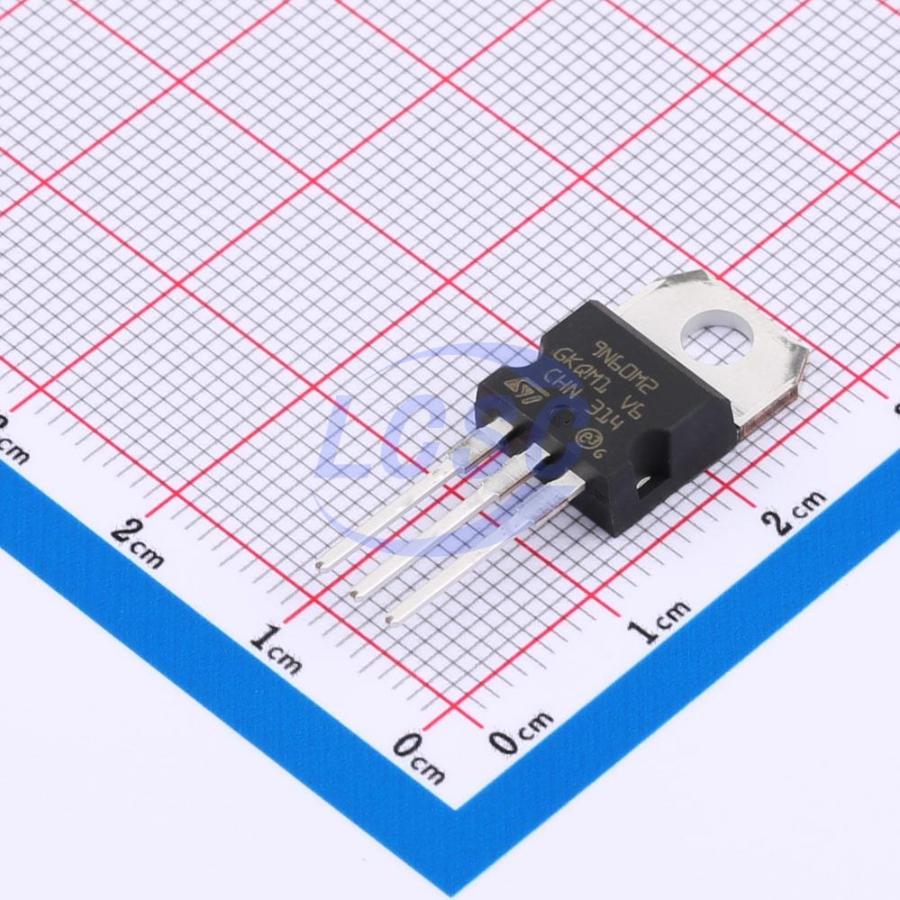

STP9N60M2
N-Channel 600V 5.5A 60W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 600V 5.5A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP9N60M2
- Store part #
- C3280392
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
126 in stock
#C3280392
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.20 | ₹129.20 |
| 10+ | ₹126.40 | ₹1,264.00 |
| 30+ | ₹124.68 | ₹3,740.40 |
| 100+ | ₹122.73 | ₹12,273.00 |
1 × ₹129.20
₹129.20
excl. GST
₹152.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP9N60M2
₹129.20 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 18pF
- Ciss-Input Capacitance
- 320pF
- Pd - Power Dissipation
- 60W
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 5.5A
- Reverse Transfer Capacitance (Crss)
- 0.68pF
- RDS(on)
- 780mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.724 g
Overview
These devices are N-channel Power MOSFETs developed using the MDmesh M2 technology. Thanks to their strip layout and improved vertical structure, these devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high-efficiency converters.
Applications
- Switching applications
Key features
- Extremely low gate charge
- Excellent output capacitance (Coss) profile
- 100% avalanche tested
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STP9N65M2#C3290219ST · TO-220 | ST | TO-220 | 100 | ₹270.33 · 100 in stock | View |
 | WGP10N65SE#C7541357Wild Goose · TO-220 | Wild Goose | TO-220 | 735 | ₹46.13 · 735 in stock | View |
 | IPP60R180C7XKSA1#C7289542Infineon · TO-220-3 | Infineon | TO-220-3 | 12 | ₹379.85 · 12 in stock | View |
 | WGP18N65SE#C7541360Wild Goose · TO-220 | Wild Goose | TO-220 | 151 | ₹77.95 · 151 in stock | View |
 | IPA60R600P7SXKSA1#C3289017Infineon · TO-220-FP | Infineon | TO-220-FP | 828 | ₹152.77 · 828 in stock | View |
