STDatasheet (PDF)

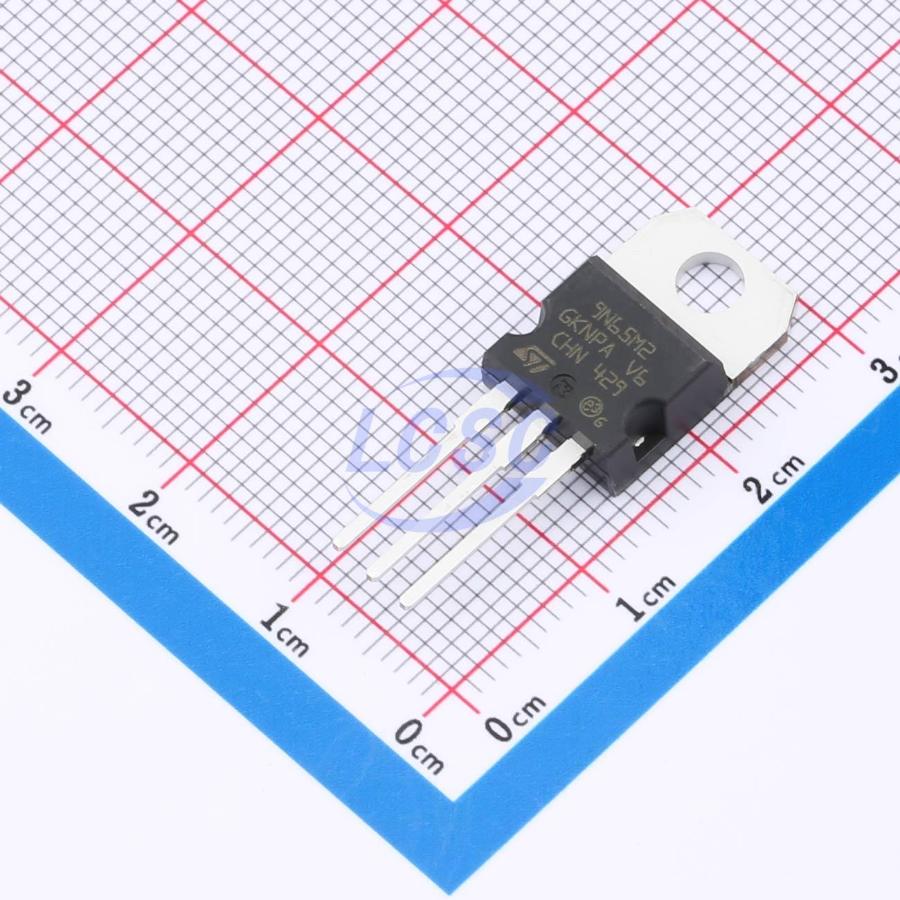

STP9N65M2
N-Channel 650V 5A 60W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 650V 5A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP9N65M2
- Store part #
- C3290219
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C3290219
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹270.33 | ₹270.33 |
| 10+ | ₹229.47 | ₹2,294.70 |
| 30+ | ₹203.83 | ₹6,114.90 |
| 100+ | ₹177.76 | ₹17,776.00 |
| 500+ | ₹165.80 | ₹82,900.00 |
| 1,000+ | ₹160.81 | ₹1,60,810.00 |
1 × ₹270.33
₹270.33
excl. GST
₹318.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP9N65M2
₹270.33 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 18pF
- Ciss-Input Capacitance
- 310pF
- Pd - Power Dissipation
- 60W
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 5A
- Reverse Transfer Capacitance (Crss)
- 0.9pF
- RDS(on)
- 900mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.3nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
These devices are N-channel Power MOSFETs developed using the MDmesh M2 technology. Thanks to their strip layout and improved vertical structure, these devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high-efficiency converters.
Applications
- Switching applications
Key features
- Extremely low gate charge
- Excellent output capacitance (COSS) profile
- 100% avalanche tested
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP8N65TQ#C42372385Siliup · TO-220-3L-C | Siliup | TO-220-3L-C | 182 | ₹54.86 · 182 in stock | View |
 | STP9N60M2#C3280392ST · TO-220 | ST | TO-220 | 126 | ₹129.20 · 126 in stock | View |
 | WGP18N65SE#C7541360Wild Goose · TO-220 | Wild Goose | TO-220 | 151 | ₹77.95 · 151 in stock | View |
 | WGP10N65SE#C7541357Wild Goose · TO-220 | Wild Goose | TO-220 | 735 | ₹46.13 · 735 in stock | View |
 | NCE65T540#C181925NCE · TO-220 | NCE | TO-220 | 210 | ₹105.01 · 210 in stock | View |
