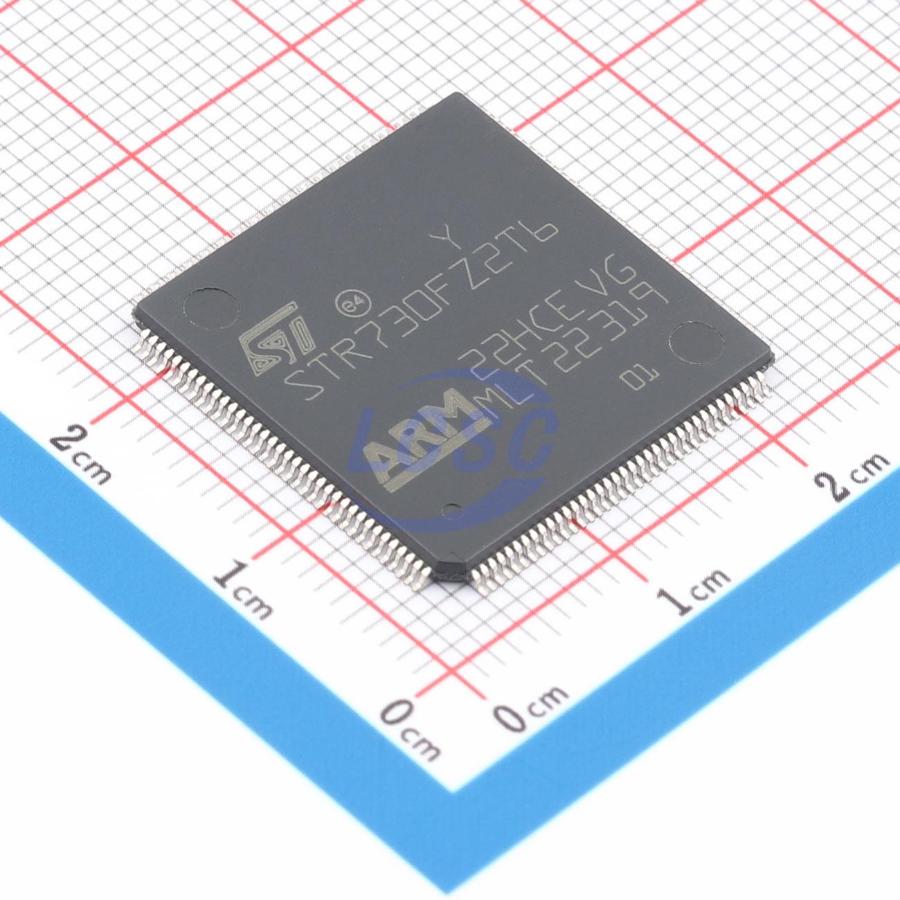

STR730FZ2T6

The STR73xF series combines the high-performance ARM7TDMI CPU with extensive peripheral features and enhanced I/O capabilities. All devices feature on-chip high-speed single-voltage Flash memory and high-speed RAM. The series incorporates an ARM core, making it compatible with all ARM tools and software. The 32-bit ARM core microcontrollers are supported by a complete range of high-end and low-cost development tools to meet the needs of application developers. This broad suite of hardware/software tools includes starter kits and complete development packages, all tailored for ARM core-based MCUs. The development package series includes third-party solutions featuring graphical development environments and in-circuit emulators/programmers with JTAG application interfaces. They support a range of embedded operating systems, with multiple royalty-free operating systems also available.

Key features

• ARM7TDMI 32-bit RISC CPU, up to 32 MIPS at 36 MHz
• Up to 256 Kbytes Flash program memory (10,000 erase/write cycles, 20-year data retention at 85℃), 16 Kbytes RAM
• 4.5 to 5.5 V supply and I/O, on-chip 1.8V regulator for core supply
• On-chip oscillator, operates with external 4 to 8 MHz crystal or ceramic resonator
• CPU frequency up to 36 MHz via internal PLL
• 32 kHz or 2 MHz internal RC oscillator, software-configurable for fast startup and backup clock
• Real-time clock for clock/calendar function
• Wake-up timer driven by internal RC, for wake-up from STOP mode
• 5 power-saving modes: SLOW, WFI, LPWFI, STOP, and HALT
• Nested interrupt controller with fast multi-vector interrupt handling
• 64 maskable IRQs with 64 vectors and 16 priority levels
• 2 maskable FIQ sources
• 16 external interrupts, up to 32 wake-up lines
• Up to 112 I/O ports, 72/112 multi-function bidirectional I/Os
• 4 DMA controllers, each with 4 channels
• 16-bit watchdog timer
• 6/10 × 16-bit timers, each with: 2 input captures, 2 output compares, PWM and pulse counter modes
• 6 × 16-bit PWM modules
• 3 × 16-bit timebase timers with 8-bit prescaler
• 12 communication interfaces: 4 UART asynchronous serial interfaces, 3 BSPI synchronous serial interfaces, up to 3 CAN interfaces
• 10-bit ADC, 12/16 channels, conversion time: 3 ps minimum, range: 0 to 5V
• Development tools support JTAG interface
