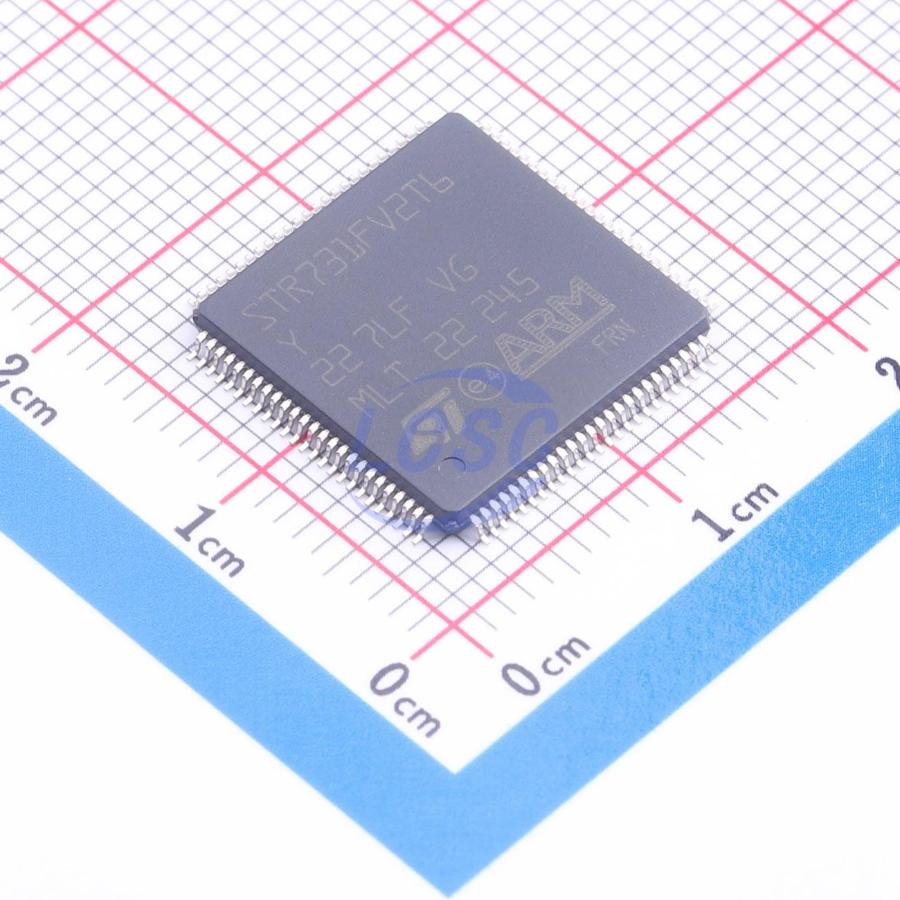

STR731FV2T6

ARM core with embedded Flash & RAM STR73xF family combines the high performance ARM7TDMI CPU with an extensive range of peripheral functions and enhanced I/O capabilities. All devices have on-chip high-speed single voltage Flash memory and high-speed RAM. The STR73xF family has an embedded ARM core and is therefore compatible with all ARM tools and software. Extensive tools support STMicroelectronics' 32-bit, ARM core-based microcontrollers are supported by a complete range of high-end and low-cost development tools to meet the needs of application developers. This extensive line of hardware/software tools includes starter kits and complete development packages all tailored for ST's ARM core-based MCUs. The range of development packages includes third-party solutions that come complete with a graphical development environment and an in-circuit emulator/programmer featuring a JTAG application interface. These support a range of embedded operating systems (OS), while several royalty-free OSs are also available.

Key features

• ARM7TDMI 32-bit RISC CPU 32 MIPS @ 36 MHz
• Up to 256 Kbytes Flash program memory (10,000 cycles endurance, data retention 20 years @ 85°C) - 16 Kbytes RAM
• 4.5 - 5.5 V application supply and I/Os
• Embedded 1.8V regulator for core supply
• Embedded oscillator running from external 4 - 8 MHz crystal or ceramic resonator
• Up to 36 MHz CPU frequency with internal PLL
• 32kHz or 2 MHz internal RC oscillator, software configurable for fast startup and backup clock
• Real-time clock for clock-calendar function
• Wake-up timer driven by internal RC for wake-up from STOP mode
• 5 power saving modes, SLOW, WFI, LPWFI, STOP and HALT modes
• Fast interrupt handling with multiple vectors
• 64 maskable IRQs with 64 vectors and 16 priority levels
• 2 maskable FIQ sources
• 16 external interrupts, up to 32 wake-up lines
• 72/112 multifunctional bidirectional I/Os
• 4 DMA controllers with 4 channels each
• 16-bit watchdog timer (WDG)
• 6/10 16-bit timers (TIM) each with: 2 input captures, 2 output compares, PWM and pulse counter modes
• 6 16-bit PWM modules (PWM)
• 3 16-bit timebase timers with 8-bit prescalers
• 212 interfaces
• 4 UART asynchronous serial interfaces
• 3 BSPI synchronous serial interfaces
• Up to 3 CAN interfaces (2.0B Active)
• 10-bit A/D converter
• 12/16 channels
• Conversion time: min. 3 ps, range: 0 to 5V
• Development tools support JTAG interface
