STDatasheet (PDF)

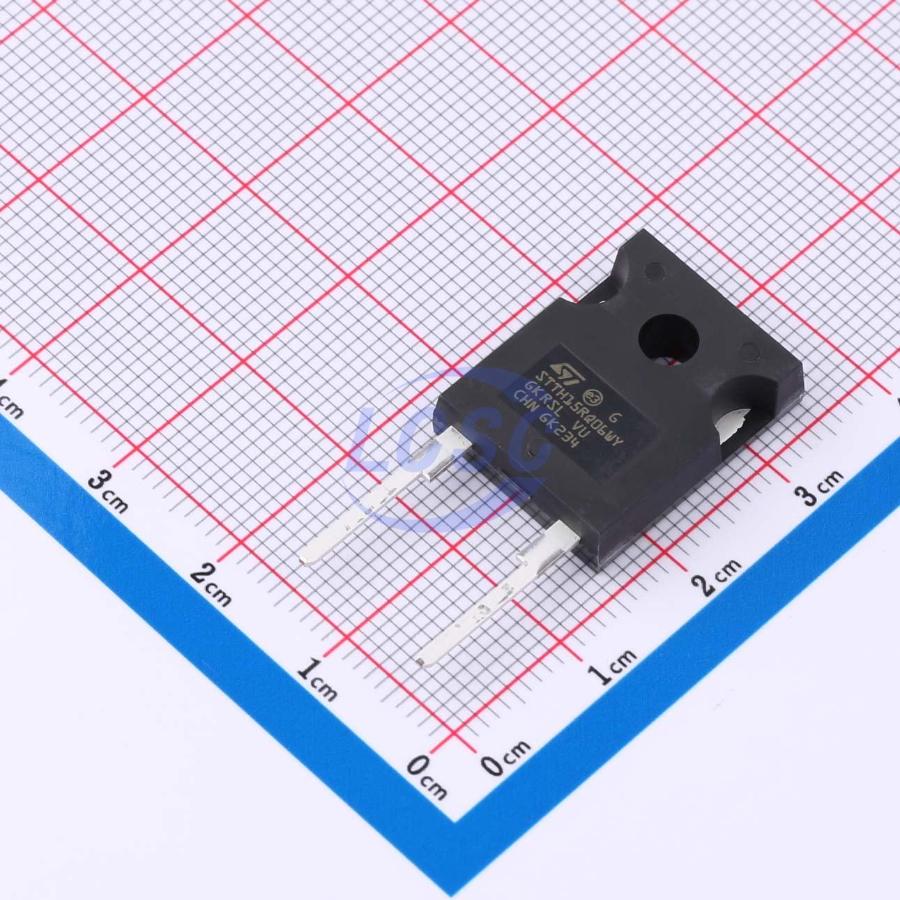

STTH15RQ06WY
25ns 1 Independent 600V 2.95V@15A 15A DO-247-2 Single Diodes RoHS
DO-247-2ROHS3 CompliantActive
Diode 600V 15A DO-247-2
- Manufacturer
- ST
- Manufacturer part #
- STTH15RQ06WY
- Store part #
- C2970556
- Package / case
- DO-247-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
179 in stock
#C2970556
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹251.20 | ₹251.20 |
| 10+ | ₹229.04 | ₹2,290.40 |
| 30+ | ₹215.13 | ₹6,453.90 |
| 90+ | ₹200.79 | ₹18,071.10 |
| 510+ | ₹194.27 | ₹99,077.70 |
| 990+ | ₹191.66 | ₹1,89,743.40 |
1 × ₹251.20
₹251.20
excl. GST
₹296.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STTH15RQ06WY
₹251.20 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 25ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 2.95V@15A
- Reverse Leakage Current (Ir)
- 20uA@600V
- Non-Repetitive Peak Forward Surge Current
- 120A
- Current - Rectified
- 15A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.843 g
Overview
The STTH15RQ06-Y has been developed to be used in application requiring a highvoltage secondary rectification for LLC Full Bridge topology. It is also suited for use in switching power supplies and automotive applications, industrial applications, as rectification, freewheeling and clamping diode.
Applications
- Output rectification
- PFC
- UPS
- Air conditioning
- Charging station
Key features
- AEC-Q101 qualified
- High junction temperature capability
- Ultrafast with soft recovery behavior
- Low reverse current
- Low thermal resistance
- Reduce switching and conduction losses
- PPAP capable
- D²PAK HV creepage distance (anode to cathode) =5.38 mm min. (with top coating)
- VRRM guaranteed from -40 ℃ to 175 ℃
- ECOPACK2 compliant (DO-247, TO-220AC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STTH60RQ06WY#C2970077ST · DO-247-2 | ST | DO-247-2 | 155 | ₹324.35 · 155 in stock | View |
 | STTH6010W#C262978ST · DO-247 | ST | DO-247 | 20 | ₹403.98 · 20 in stock | View |
 | STTH6012WL#C5887434ST · DO-247LL | ST | DO-247LL | 1 | ₹665.07 · 1 in stock | View |
 | STTH6012W#C262979ST · DO-247 | ST | DO-247 | 287 | ₹772.74 · 287 in stock | View |
 | STTH6010WY#C2965281ST · DO-247-2 | ST | DO-247-2 | On request | ₹872.65 · 0 in stock | View |
