STDatasheet (PDF)

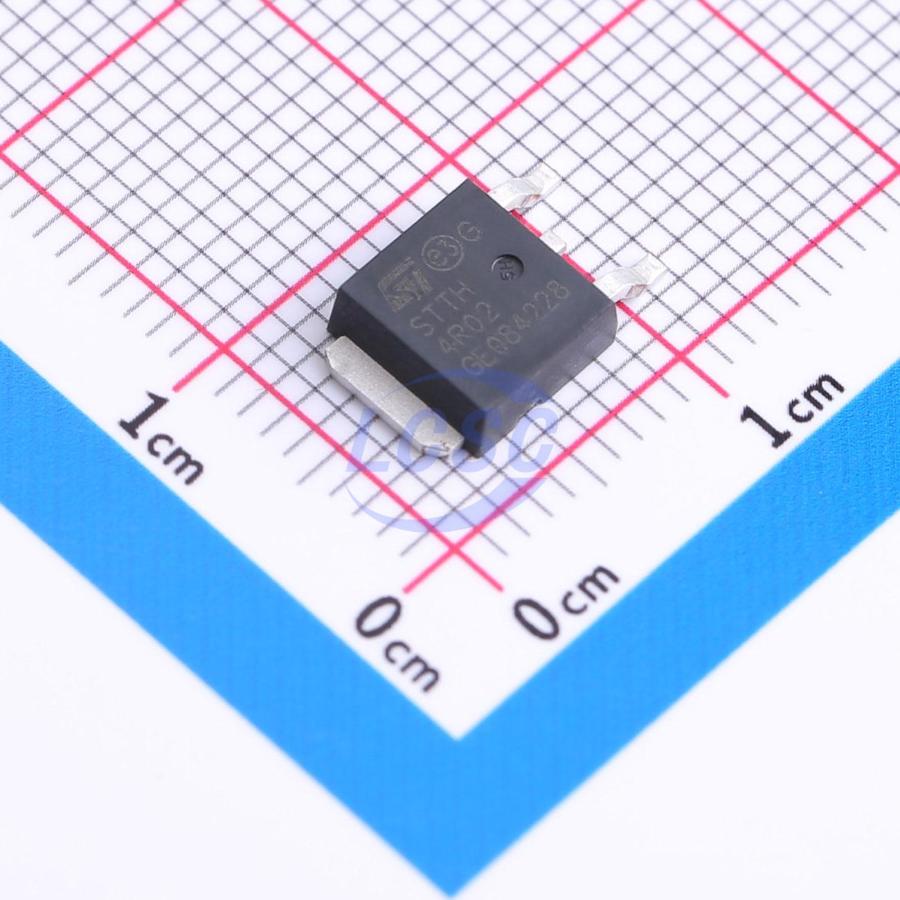

STTH4R02B-TR
30ns 1 Independent 200V 1.05V@4A 4A DPAK Single Diodes RoHS
DPAKROHS3 CompliantActive
Diode 200V 4A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STTH4R02B-TR
- Store part #
- C2970437
- Package / case
- DPAK
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
64 in stock
#C2970437
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.22 | ₹66.22 |
| 10+ | ₹52.27 | ₹522.70 |
| 30+ | ₹46.17 | ₹1,385.10 |
| 100+ | ₹35.72 | ₹3,572.00 |
| 500+ | ₹32.45 | ₹16,225.00 |
| 1,000+ | ₹30.50 | ₹30,500.00 |
1 × ₹66.22
₹66.22
excl. GST
₹78.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STTH4R02B-TR
₹66.22 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 30ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1.05V@4A
- Reverse Leakage Current (Ir)
- 3uA@200V
- Non-Repetitive Peak Forward Surge Current
- 70A
- Current - Rectified
- 4A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.49 g
Overview
The STTH4R02 uses ST's new 200 V planar Pt doping technology, and it is specially suited for switching mode base drive and transistor circuits. Packaged in DPAK, SMB and SMC, this device is intended for use in low voltage, high frequency inverters, freewheeling and polarity protection.
Applications
- Switch-mode base drive circuits
- Transistor circuits
- Low-voltage, high-frequency inverters
- Freewheeling circuits
- Polarity protection
Key features
- Negligible switching losses
- High junction temperature
- Very low conduction losses
- Low forward and reverse recovery times
- ECOPACK ℬ₂ compliant component for DPAK on demand
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STTH4R02BY-TR#C5268284ST · DPAK | ST | DPAK | 17 | ₹200.30 · 17 in stock | View |
 | STTH802B-TR#C2970433ST · DPAK | ST | DPAK | 90 | ₹130.88 · 90 in stock | View |
 | BYV25D-600,118#C256496WeEn · TO-252-2 | WeEn | TO-252-2 | 9 | ₹155.52 · 9 in stock | View |
 | SURD8530T4G-VF01#C889893onsemi · DPAK | onsemi | DPAK | 5 | ₹232.13 · 5 in stock | View |
 | SSURHD8560W1T4G#C889886onsemi · DPAK | onsemi | DPAK | 5 | ₹165.51 · 5 in stock | View |
