STDatasheet (PDF)

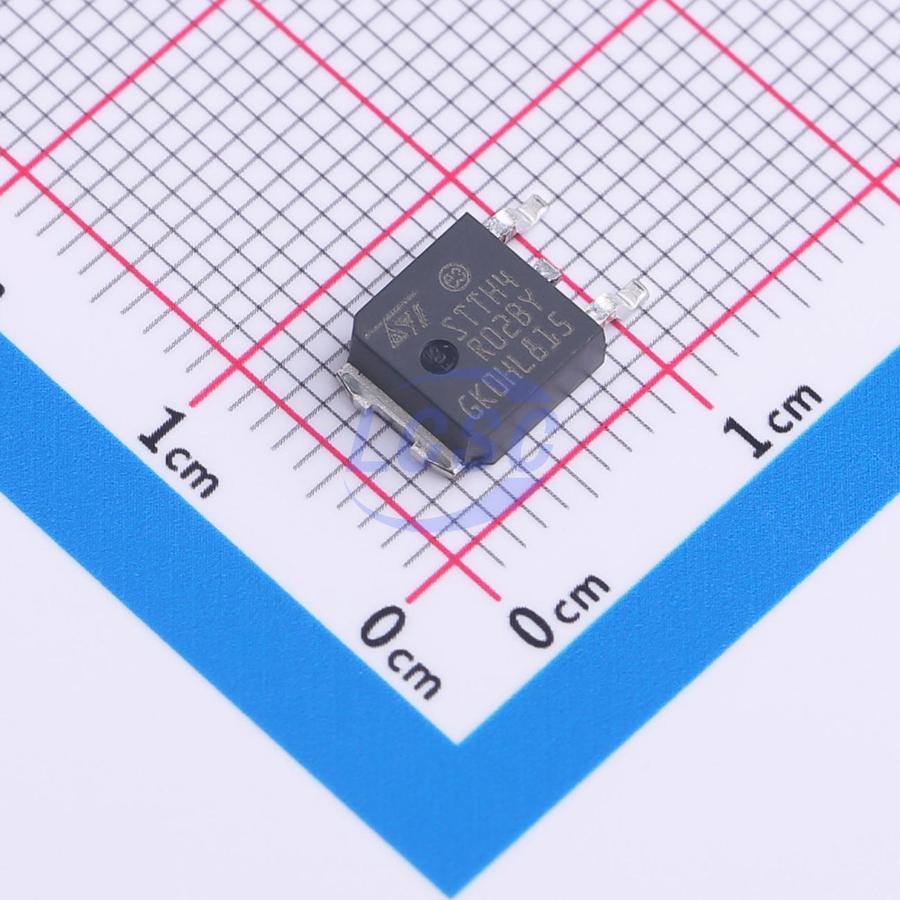

STTH4R02BY-TR
30ns 1 Independent 200V 1.05V@4A 4A DPAK Single Diodes RoHS
DPAKROHS3 CompliantActive
Diode 200V 4A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STTH4R02BY-TR
- Store part #
- C5268284
- Package / case
- DPAK
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C5268284
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹200.30 | ₹200.30 |
| 10+ | ₹164.01 | ₹1,640.10 |
| 30+ | ₹144.05 | ₹4,321.50 |
| 100+ | ₹121.52 | ₹12,152.00 |
| 500+ | ₹111.63 | ₹55,815.00 |
| 1,000+ | ₹107.12 | ₹1,07,120.00 |
1 × ₹200.30
₹200.30
excl. GST
₹236.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STTH4R02BY-TR
₹200.30 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 30ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1.05V@4A
- Reverse Leakage Current (Ir)
- 3uA@200V
- Non-Repetitive Peak Forward Surge Current
- 70A
- Current - Rectified
- 4A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.476 g
Overview
This device employs a novel 200V planar Pt-doped technology, making it particularly suitable for switch-mode base drive and transistor circuits. Available in SMB, SMC, and DPAK packages, it is ideal for low-voltage high-frequency inverters, freewheeling, and polarity protection in automotive applications.
Applications
- Low-voltage high-frequency inverters in automotive applications
- Freewheeling circuits in automotive applications
- Polarity protection in automotive applications
Key features
- Ultra-low conduction losses
- Negligible switching losses
- Low forward and reverse recovery time
- High junction temperature
- PPAP supported
- AEC-Q101 compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STTH4R02B-TR#C2970437ST · DPAK | ST | DPAK | 64 | ₹66.22 · 64 in stock | View |
 | STTH802B-TR#C2970433ST · DPAK | ST | DPAK | 90 | ₹130.88 · 90 in stock | View |
 | BYV25D-600,118#C256496WeEn · TO-252-2 | WeEn | TO-252-2 | 9 | ₹155.52 · 9 in stock | View |
 | SDURD1560#C499750SMC · DPAK | SMC | DPAK | 417 | ₹68.89 · 417 in stock | View |
 | SURD8530T4G-VF01#C889893onsemi · DPAK | onsemi | DPAK | 5 | ₹232.13 · 5 in stock | View |
