STDatasheet (PDF)

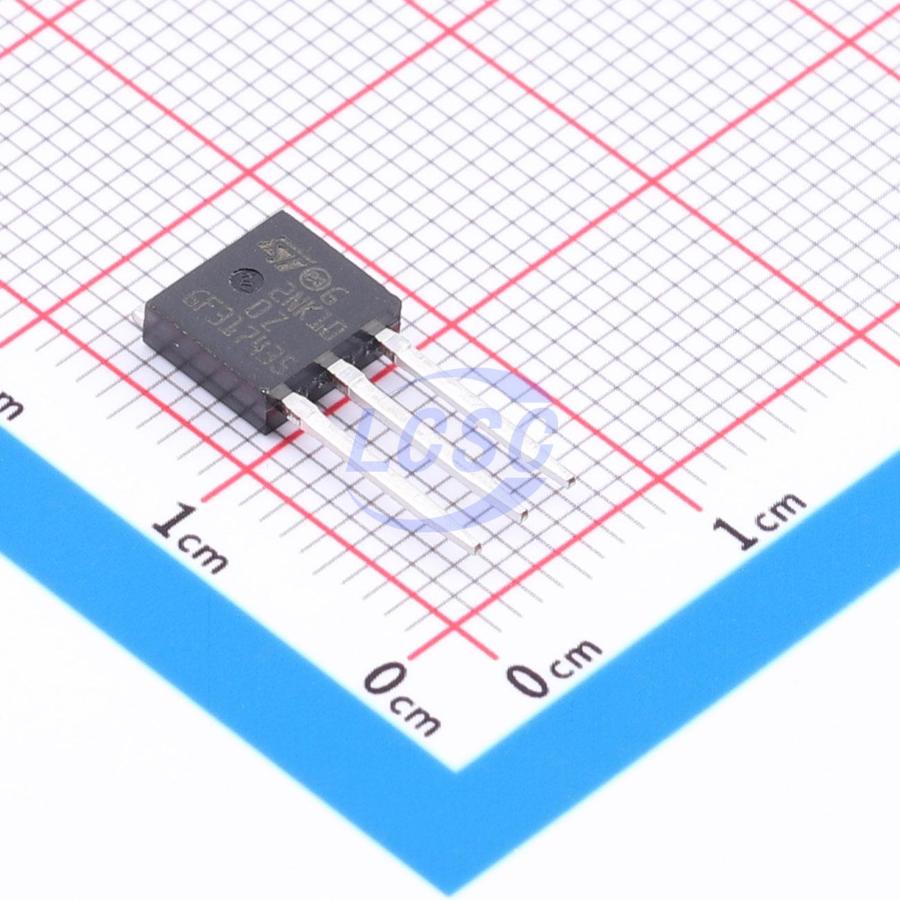

STU2NK100Z
N-Channel 1kV 1.85A 70W Through Hole TO-251-3
TO-251-3ROHS3 CompliantActive
MOSFET N-CH 1kV 1.85A TO-251-3
- Manufacturer
- ST
- Manufacturer part #
- STU2NK100Z
- Store part #
- C2970858
- Package / case
- TO-251-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C2970858
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹167.23 | ₹167.23 |
| 10+ | ₹142.08 | ₹1,420.80 |
| 30+ | ₹129.61 | ₹3,888.30 |
| 100+ | ₹117.15 | ₹11,715.00 |
| 500+ | ₹109.84 | ₹54,920.00 |
| 1,000+ | ₹105.97 | ₹1,05,970.00 |
1 × ₹167.23
₹167.23
excl. GST
₹197.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
STU2NK100Z
₹167.23 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 1kV
- Output Capacitance(Coss)
- 53pF
- Current - Continuous Drain(Id)
- 1.85A
- Ciss-Input Capacitance
- 499pF
- Pd - Power Dissipation
- 70W
- Reverse Transfer Capacitance (Crss)
- 9pF
- RDS(on)
- 8.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.44 g
Overview
This high-voltage device is a Zener-protected N-channel Power MOSFET developed using the SuperMESH technology, an optimization of the well-established PowerMESH. In addition to a significant reduction in on-resistance, this device is designed to ensure a high level of dv/dt capability for the most demanding applications.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Minimized gate charge
- Ultra-low intrinsic capacitance
- Zener protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD2NK90Z-1#C2971009ST · IPAK(TO-251) | ST | IPAK(TO-251) | 14 | ₹167.54 · 14 in stock | View |
 | MS3N100HGD1#C5353710MASPOWER · TO-251 | MASPOWER | TO-251 | 14 | ₹72.58 · 14 in stock | View |
 | STU7N105K5#C501072ST · TO-251(IPAK) | ST | TO-251(IPAK) | On request | ₹295.98 · 0 in stock | View |
 | 2N90G-TM3-T#C427626UTC · TO-251 | UTC | TO-251 | On request | ₹66.16 · 0 in stock | View |
 | STU2N95K5#C2688534ST · TO-251-3(IPAK) | ST | TO-251-3(IPAK) | On request | ₹134.13 · 0 in stock | View |
