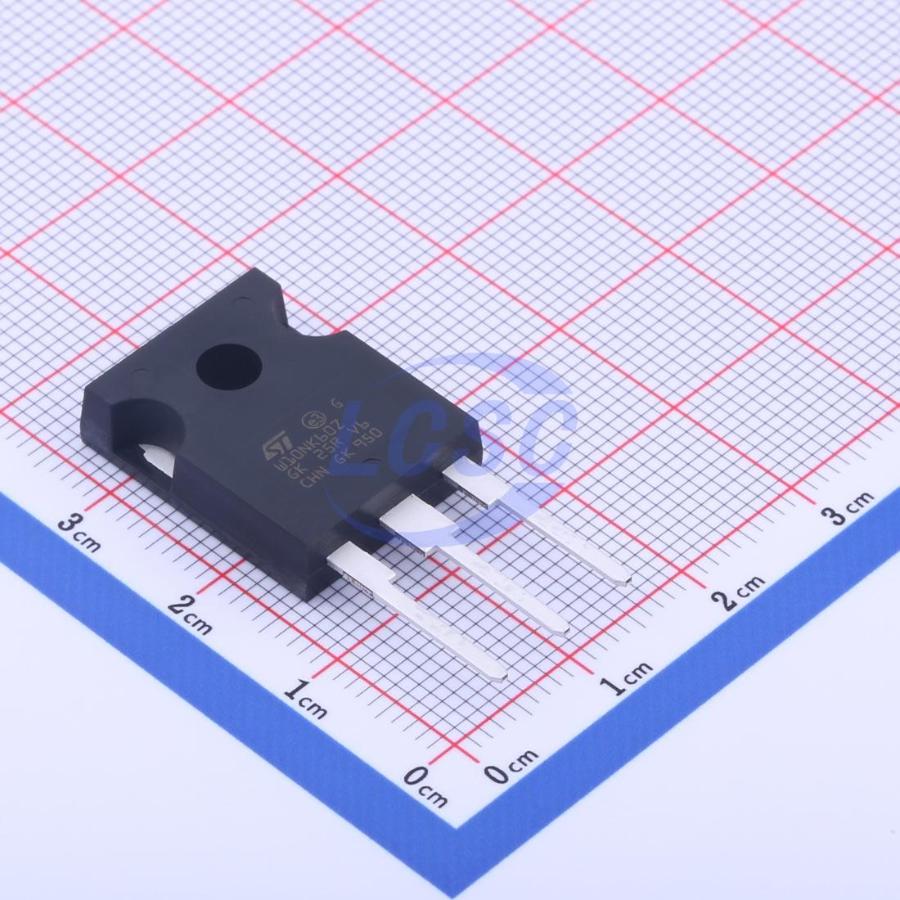

STW10NK60Z
N-Channel 600V 10A 156W Through Hole TO-247
TO-247ROHS3 CompliantActive
MOSFET N-CH 600V 10A TO-247
- Manufacturer
- ST
- Manufacturer part #
- STW10NK60Z
- Store part #
- C672237
- Package / case
- TO-247
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C672237
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹382.45 | ₹382.45 |
| 10+ | ₹338.12 | ₹3,381.20 |
| 30+ | ₹310.52 | ₹9,315.60 |
| 100+ | ₹282.28 | ₹28,228.00 |
| 500+ | ₹269.46 | ₹1,34,730.00 |
| 1,000+ | ₹264.02 | ₹2,64,020.00 |
1 × ₹382.45
₹382.45
excl. GST
₹451.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STW10NK60Z
₹382.45 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 156pF
- Ciss-Input Capacitance
- 1.37nF
- Pd - Power Dissipation
- 156W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 10A
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 750mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.04 g
Overview
These devices are N-channel Zener-protected Power MOSFET developed using STMicroelectronics' SuperMESH™ technology, achieved through optimization of ST's well-established strip-based PowerMESH™ layout. In addition to a significant reduction in on-resistance, this device is designed to ensure a high level of dv/dt capability for the most demanding applications.
Applications
- Switching applications
Key features
- Extremely high dv/dt capability
- 100% avalanche tested
- Gate charge minimized
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPW60R070CFD7XKSA1#C3278940Infineon · TO-247-3-21 | Infineon | TO-247-3-21 | 1 | ₹1,973.85 · 1 in stock | View |
 | IPW60R070CFD7#C537454Infineon · TO-247-3 | Infineon | TO-247-3 | 1,255 | ₹782.70 · 1,255 in stock | View |
| IPW60R165CPFKSA1-VB#C50387021VBsemi Elec · TO-247 | VBsemi Elec | TO-247 | 5 | ₹393.74 · 5 in stock | View | |
| SPW24N60C3FKSA1-VB#C50387040VBsemi Elec · TO-247 | VBsemi Elec | TO-247 | 5 | ₹393.74 · 5 in stock | View | |
| SIHG22N60EF-GE3-VB#C51822585VBsemi Elec · TO-247 | VBsemi Elec | TO-247 | 5 | ₹393.74 · 5 in stock | View | |
