STDatasheet (PDF)

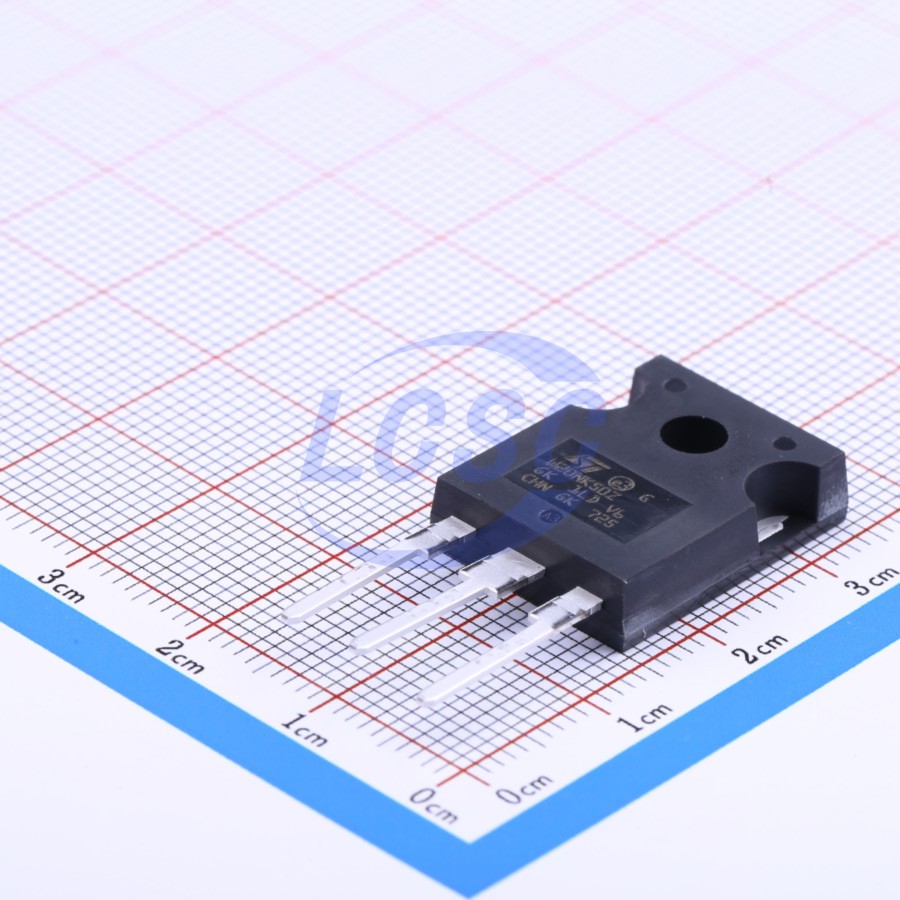

STW20NK50Z
N-Channel 500V 20A 190W Through Hole TO-247AC-3
TO-247AC-3ROHS3 CompliantActive
MOSFET N-CH 500V 20A TO-247AC-3
- Manufacturer
- ST
- Manufacturer part #
- STW20NK50Z
- Store part #
- C10654
- Package / case
- TO-247AC-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C10654
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹250.05 | ₹250.05 |
| 10+ | ₹211.56 | ₹2,115.60 |
| 30+ | ₹187.64 | ₹5,629.20 |
| 100+ | ₹163.07 | ₹16,307.00 |
| 500+ | ₹151.99 | ₹75,995.00 |
| 1,000+ | ₹147.21 | ₹1,47,210.00 |
1 × ₹250.05
₹250.05
excl. GST
₹295.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STW20NK50Z
₹250.05 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Output Capacitance(Coss)
- 400pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.6nF
- Pd - Power Dissipation
- 190W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 270mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 95nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.501 g
Overview
The SuperMESH™series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™products.
Applications
- HIGH CURRENT, HIGH SPEED SWITCHING
- IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC
Key features
- TYPICAL RDS(on)=0.23Ω
- EXTREMELY HIGH dv/dt CAPABILITY
- 100% AVALANCHE TESTED
- GATE CHARGE MINIMIZED
- VERY LOW INTRINSIC CAPACITANCES
- VERY GOOD MANUFACTURING REPEATIBILITY
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPW20N60CFD#C539322Infineon · TO-247-3 | Infineon | TO-247-3 | 8 | ₹725.85 · 8 in stock | View |
 | WTM54N65AMP#C48642356WPMtek · TO247 | WPMtek | TO247 | 25 | ₹428.29 · 25 in stock | View |
 | STW20NM60#C262986ST · TO-247 | ST | TO-247 | 13 | ₹402.46 · 13 in stock | View |
 | FCH150N65F-F155-VB#C22357248VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 28 | ₹453.89 · 28 in stock | View |
 | STF21N65M5-VB#C22357249VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹348.90 · 5 in stock | View |
