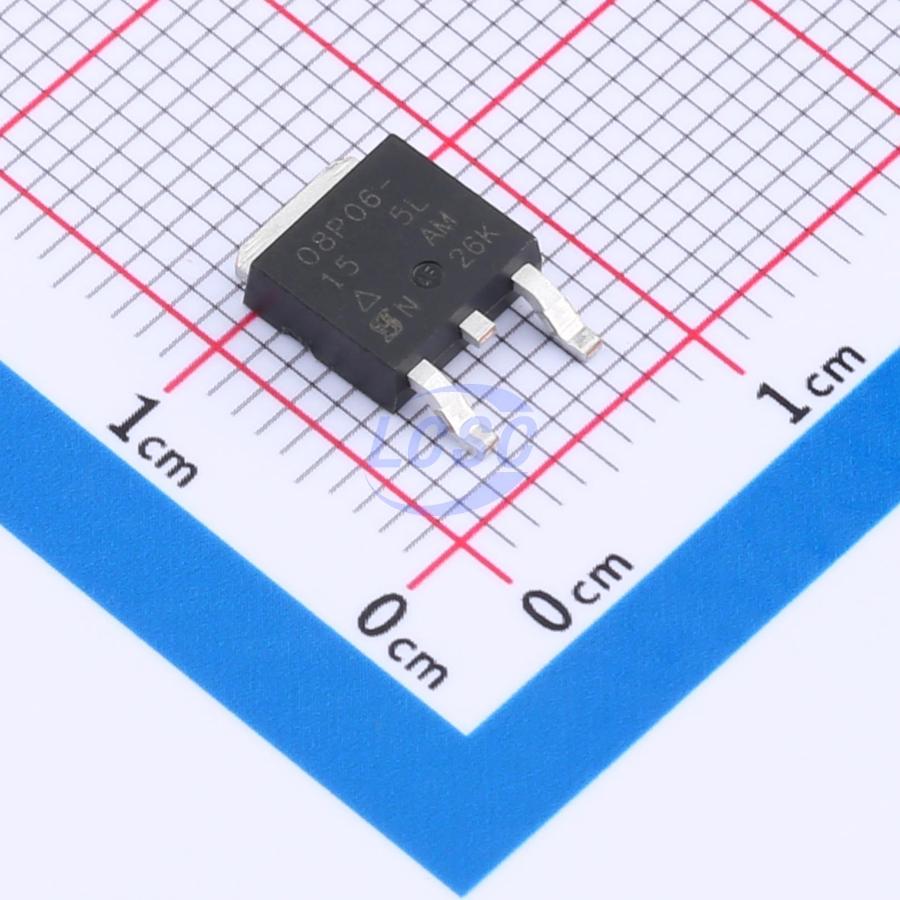

SUD08P06-155L-GE3
P-Channel 60V 8.4A 20.8W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET P-CH 60V 8.4A DPAK(TO-252)
- Manufacturer
- VISHAY
- Manufacturer part #
- SUD08P06-155L-GE3
- Store part #
- C727686
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,463 in stock
#C727686
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.25 | ₹82.25 |
| 500+ | ₹73.33 | ₹36,665.00 |
1 × ₹82.25
₹82.25
excl. GST
₹97.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SUD08P06-155L-GE3
₹82.25 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 65pF
- Ciss-Input Capacitance
- 450pF
- Pd - Power Dissipation
- 20.8W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 8.4A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 155mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.52 g
Overview
Key features
- TrenchFET power MOSFETs
- P-Channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM6014PK3#C5350906TECH PUBLIC · TO-252-2 | TECH PUBLIC | TO-252-2 | 120 | ₹20.52 · 120 in stock | View |
| IRFR9110NTRRPBF-VB#C52989009VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹83.60 · 5 in stock | View | |
 | DMP6185SK3-13#C461100DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 134 | ₹51.29 · 134 in stock | View |
 | FQD12P10-VB#C878907VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 292 | ₹73.94 · 292 in stock | View |
 | NCE60P10K#C502840NCE · TO-252-2L | NCE | TO-252-2L | 5,900 | ₹109.93 · 5,900 in stock | View |
