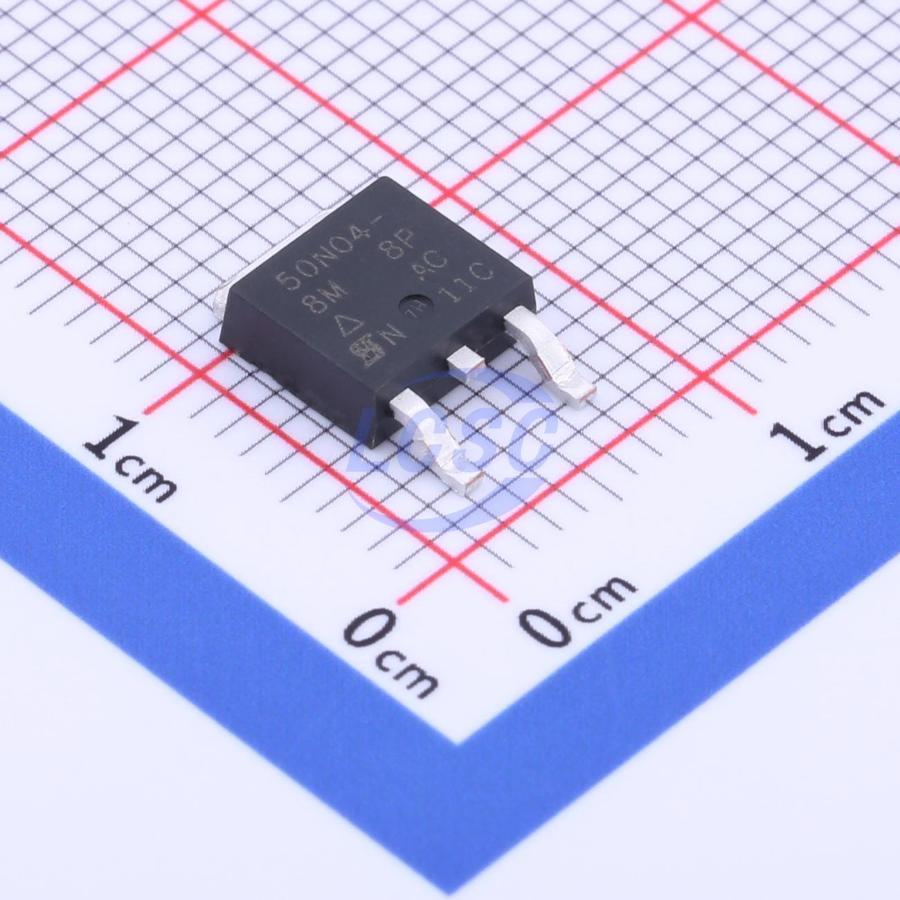

VISHAYDatasheet (PDF)
SUD50N04-8M8P-4GE3
40V 8.8mΩ@10V 1 N-channel N-Channel TO-252 Single FETs, MOSFETs RoHS
TO-252ROHS3 CompliantActive
MOSFET N-CH 40V 50A TO-252
- Manufacturer
- VISHAY
- Manufacturer part #
- SUD50N04-8M8P-4GE3
- Store part #
- C727527
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C727527
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹228.31 | ₹228.31 |
| 10+ | ₹193.37 | ₹1,933.70 |
| 30+ | ₹171.46 | ₹5,143.80 |
| 100+ | ₹149.10 | ₹14,910.00 |
| 500+ | ₹139.11 | ₹69,555.00 |
| 1,000+ | ₹134.56 | ₹1,34,560.00 |
1 × ₹228.31
₹228.31
excl. GST
₹269.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SUD50N04-8M8P-4GE3
₹228.31 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 260pF
- Ciss-Input Capacitance
- 2.4nF
- Pd - Power Dissipation
- 3.1W;48.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 14A;50A
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 8.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 56nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.517 g
Overview
Applications
- LCD backlight inverter
- DC/DC converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- TrenchFET power MOSFET
- 100% tested for unclamped inductive switching (UIS)
- 100% tested for gate resistance (Rg)
- PWM optimized
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM4060NK3#C5370954TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 455 | ₹18.11 · 455 in stock | View |
 | AOD4184A#C99124AOS · TO-252 | AOS | TO-252 | 19,965 | ₹47.38 · 19,965 in stock | View |
 | NVD5C446NT4G#C604534onsemi · TO-252(DPAK) | onsemi | TO-252(DPAK) | 1 | ₹128.97 · 1 in stock | View |
 | DMTH6010LK3Q-13#C6934936DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 10 | ₹521.45 · 10 in stock | View |
| NVDS015N15MCT4G#C887747onsemi · DPAK | onsemi | DPAK | 19 | ₹476.31 · 19 in stock | View | |
