HXY MOSFETDatasheet (PDF)

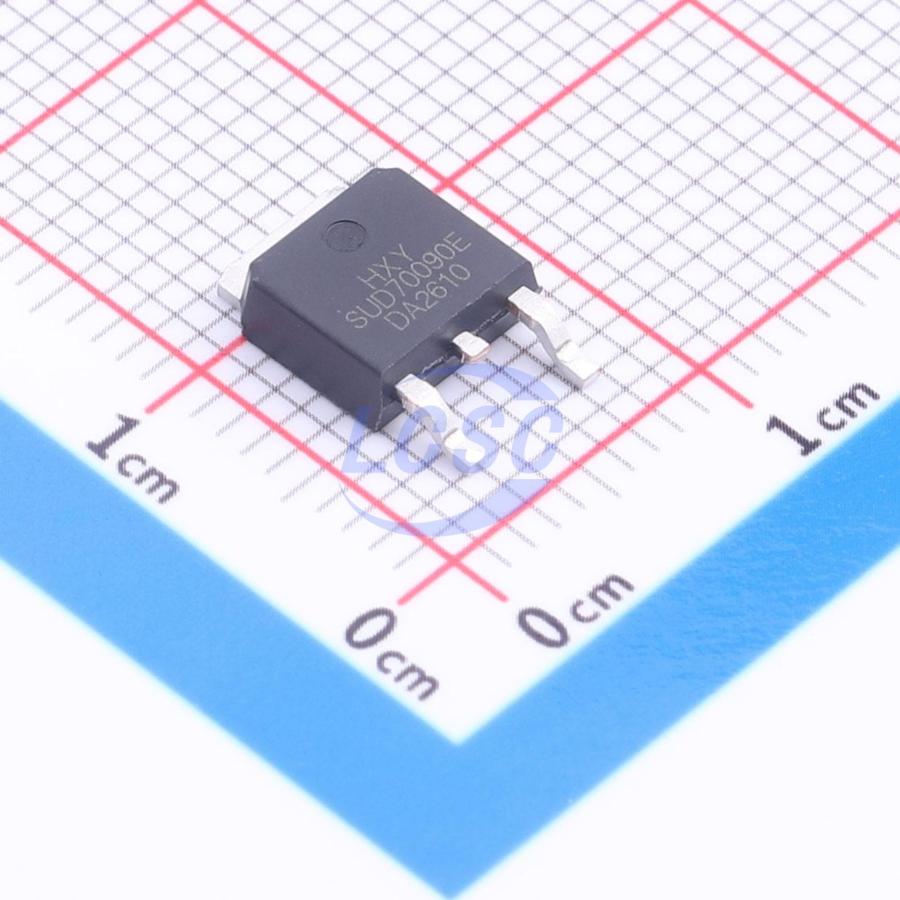

SUD70090E-GE3-HXY
100V 70A 100W 8.5mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SUD70090E-GE3-HXY
- Store part #
- C54582560
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C54582560
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹170.88 | ₹170.88 |
| 10+ | ₹143.80 | ₹1,438.00 |
| 30+ | ₹128.97 | ₹3,869.10 |
| 100+ | ₹112.20 | ₹11,220.00 |
| 500+ | ₹93.51 | ₹46,755.00 |
| 1,000+ | ₹90.07 | ₹90,070.00 |
1 × ₹170.88
₹170.88
excl. GST
₹201.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SUD70090E-GE3-HXY
₹170.88 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 451pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 1.368nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 12.9pF
- RDS(on)
- 8.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.402 g
Overview
SUD70090E - GE3 utilizes advanced SGT MOSFET technology to deliver low on-resistance (RDS(ON)), low gate charge, fast switching, and excellent avalanche characteristics. The device is specifically designed for enhanced durability.
Applications
- DC-DC Converter
- Power Management
- Synchronous Rectification Applications
- TO-252-2L Package
- N-SGT MOSFET
Key features
- Drain-to-source voltage (VDS) = 100V, drain current (ID) = 70A
- On-resistance (RDS(ON)) < 10.5mΩ at gate-to-source voltage (VGS) = 10V
