Silergy

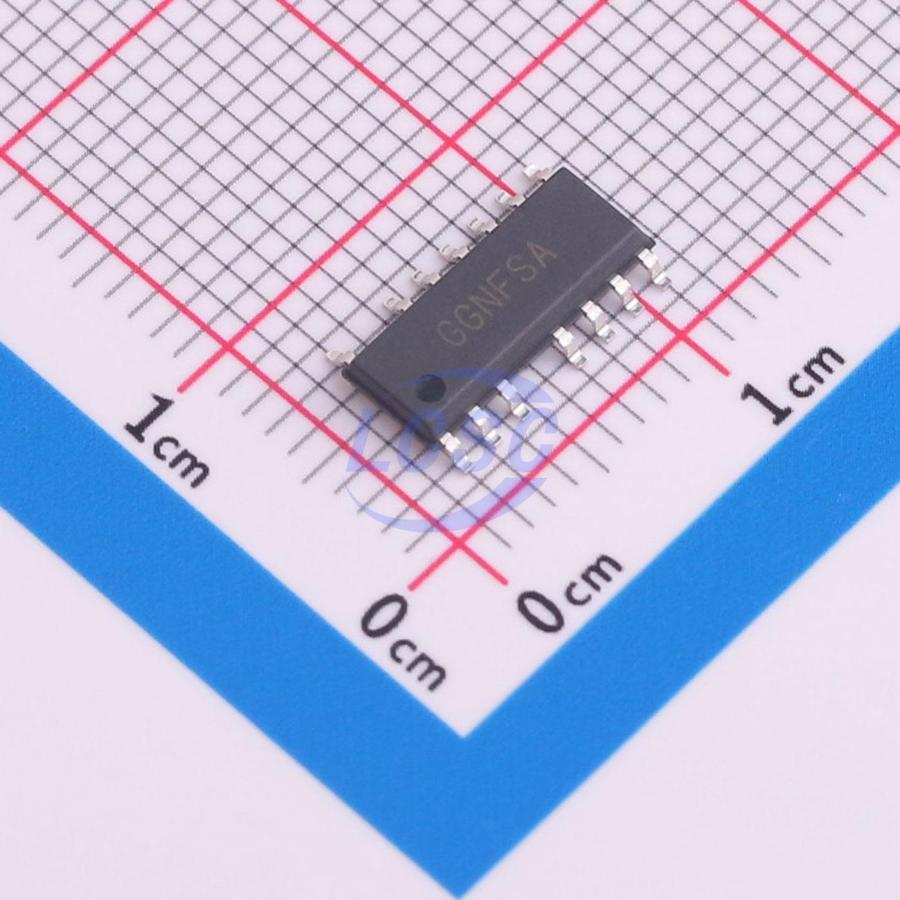

SY5055AHXP

10V~24V SOP-14 PFC (Power Factor Correction)

SOP-14RoHSActive

PFC+LLC Combo Controller

Manufacturer: Silergy
Manufacturer part #: SY5055AHXP
Store part #: C21726210
Package / case: SOP-14
Category: PFC (Power Factor Correction)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

439 in stock

#C21726210

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹187.54	₹187.54
10+	₹153.45	₹1,534.50
30+	₹134.79	₹4,043.70
100+	₹113.74	₹11,374.00
500+	₹104.40	₹52,200.00
1,000+	₹100.28	₹1,00,280.00

Quantity (min 1)

1 × ₹187.54

₹187.54

excl. GST

₹221.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

SY5055AHXP

₹187.54 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Soft-start;Overvoltage protection;Cycle-by-cycle overcurrent protection;Undervoltage Protection;Over temperature protection;Under-voltage lockout
standby current: 1.6mA
Type: PFCController+AC-DCController
Working Mode: CRM;DCM
Operating Temperature: -40℃~+125℃
Voltage - Supply: 10V~24V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.44 g

Overview

The SY5055A is a PFC+LLC combo controller; it integrates a Boost PFC controller and a resonant halfbridge LLC controller. The Boost converter works in CrM/DCM mode to minimize switching losses and get better EMI performance. Average current control is adopted to get unity PF and the lowest THD. Burst function increases efficiency at low load. Reliable input BO/BI protection, Boost output OVP/UVP, over current protection, Boost feedback protection guarantees safety work. The LLC converter adopts integrated current mode control to get fast dynamic response and easy loop compensation parameters design, also peripheral capacitor sense circuit is eliminated. In contrast to traditional LLC control scheme, the SY5055A shows a high efficiency at low load due to DCM mode. This mode operates in the power region between CCM mode and Burst mode. Four level Burst point can be set simply and Burst period can be well regulated. Within the whole load range, from full load to no load, high efficiency and low audio noise can be achieved.

Applications

LCD Television
Desktop, All in One PC
Adapter, Charger
Printer

Key features

The SY5055A is a PFC+LLC combo controller, which integrates a Boost PFC controller and a resonant halfbridge controller.
The Boost converter works in CrM/DCM mode to minimize switching losses and get better EMI performance.
Proprietary control is adopted to get unity PF and lowest THD.
Burst function increases efficiency at low load.
Reliable input BO/BI protection, Boost output OVP/UVP, over current protection, Boost feedback protection guarantees safety work.
The LLC converter with proprietary control achieves fast dynamic response and easy loop compensation parameters design.
The peripheral devices count is greatly reduced to save BOM cost.
The SY5055A also has Output OVP, OTP and OLP for safety operation.
PF>0.95, THD<5%
Boost Quasi Resonant (QR) Operation
Boost Burst Operation at Light Load
LLC Fast Dynamic Response
LLC Integrated Half-bridge Driver
Input BO/BI Protection
Boost Output, LLC Output OVP
Over Temperature Protection
LLC Capacitive Mode Protection
