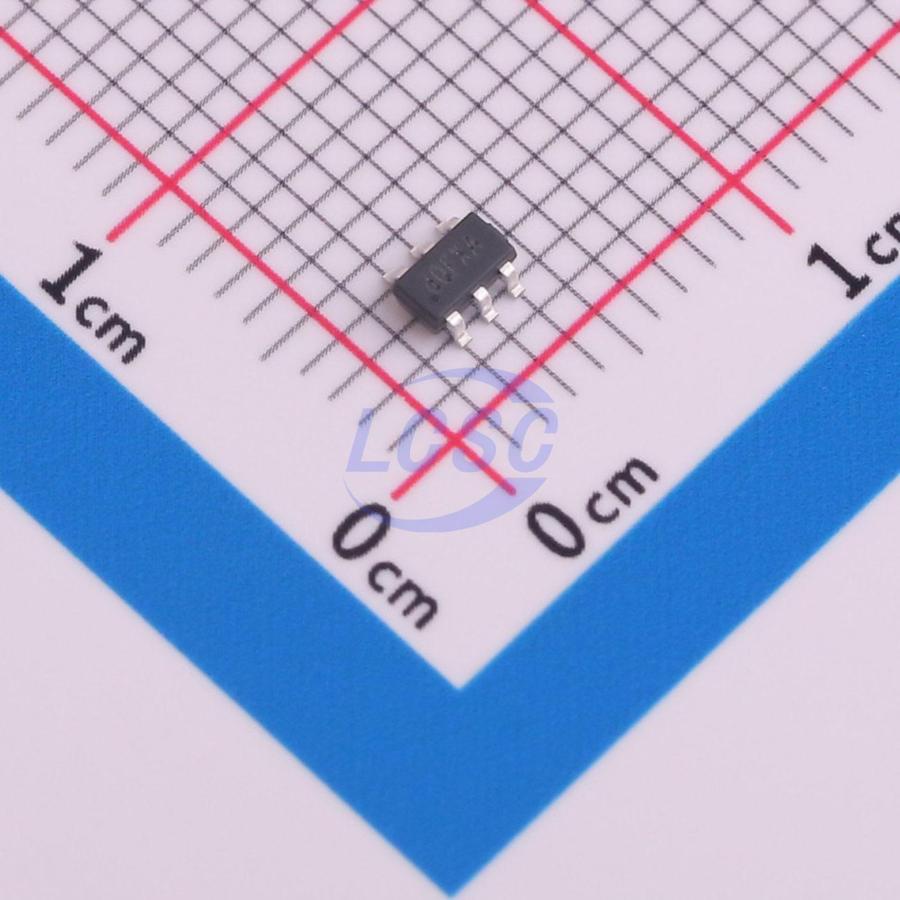

SY5072ABC
9V~22V SOT-23-6 PFC (Power Factor Correction)
BCM Boost PFC Controller
- Manufacturer
- Silergy
- Manufacturer part #
- SY5072ABC
- Store part #
- C21726212
- Package / case
- SOT-23-6
- Category
- PFC (Power Factor Correction)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,535 in stock
#C21726212
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.09 | ₹215.45 |
| 50+ | ₹35.81 | ₹1,790.50 |
| 150+ | ₹32.69 | ₹4,903.50 |
| 500+ | ₹28.79 | ₹14,395.00 |
| 3,000+ | ₹27.06 | ₹81,180.00 |
| 6,000+ | ₹26.02 | ₹1,56,120.00 |
5 × ₹43.09
₹215.45
excl. GST
₹254.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY5072ABC
₹215.45 for 5 + GST
Specifications
- Features
- Overvoltage protection;Over temperature protection;Under-voltage lockout
- standby current
- 450uA
- Type
- PFCController
- Operating Temperature
- -40℃~+150℃
- Voltage - Supply
- 9V~22V
- Working Mode
- CRM
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The SY5072 is a constant voltage BCM boost controller with Power Factor Correction (PFC) function. Constant ON Time control is applied to achieve high PF and low THD without multiplier. It drives the Boost converter in the Quasi-Resonant mode for high efficiency and better EMI performance. It adopts special design to achieve quick start up and reliable protection for safety requirement.
Key features
- Valley Turn-on to Achieve Low Switching Losses
- Frequency Reduce in Light Load
- Internal High Current MOSFET Driver: 75mA Sourcing and 400mA Sinking
- MOSFET Over-Current Protection(OCP)
- Internal THD Optimization to Achieve Low THD
- Internal Transition Optimization
- RoHS Compliant and Halogen Free
- Compact Package: SOT23-6 CC
