SilergyDatasheet (PDF)

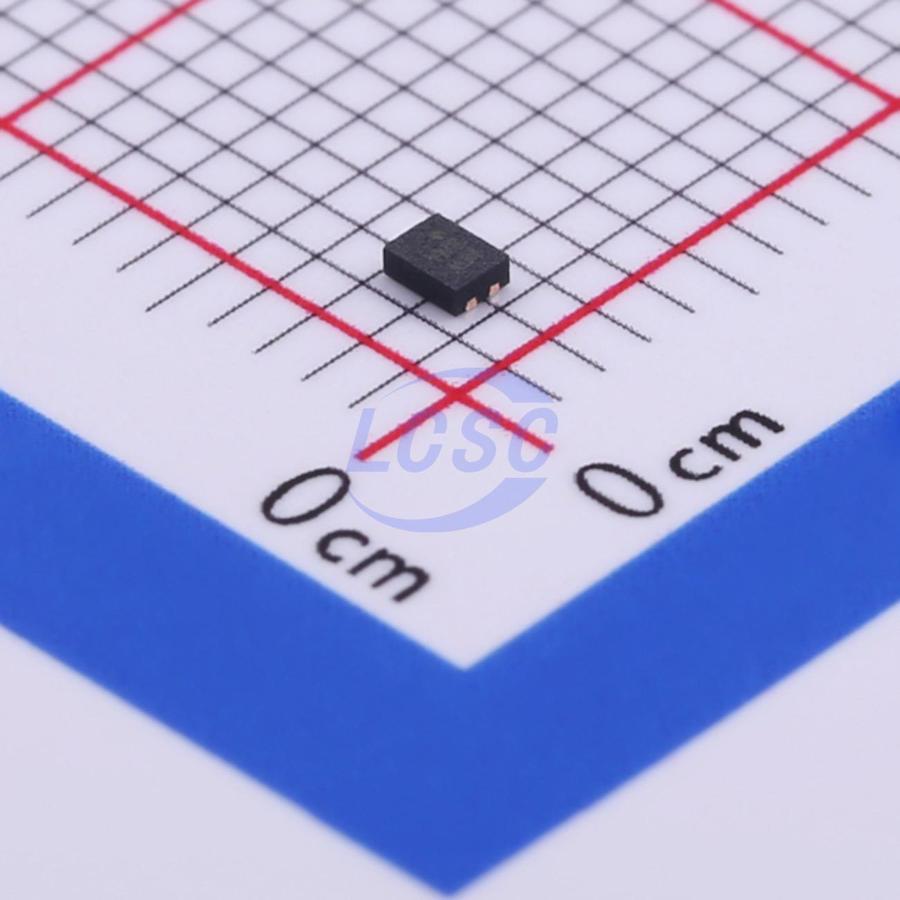

SY6283ADRC
1 3A Active High Load Switch DFN-4(1.2x1.6) Power Distribution Switches, Load Drivers
DFN-4(1.2x1.6)RoHSActive
Low Loss Power Distribution Load Switch
- Manufacturer
- Silergy
- Manufacturer part #
- SY6283ADRC
- Store part #
- C412142
- Package / case
- DFN-4(1.2x1.6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,955 in stock
#C412142
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.85 | ₹274.25 |
| 50+ | ₹42.87 | ₹2,143.50 |
| 150+ | ₹37.73 | ₹5,659.50 |
| 500+ | ₹31.32 | ₹15,660.00 |
| 3,000+ | ₹28.46 | ₹85,380.00 |
| 6,000+ | ₹26.75 | ₹1,60,500.00 |
5 × ₹54.85
₹274.25
excl. GST
₹323.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY6283ADRC
₹274.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Over temperature protection;Reverse current blocking;Soft-start;Output discharge function;Under-voltage lockout
- number of channels
- 1
- Maximum Continuous Current
- 3A
- Control Input Logic
- Active High
- Operating Voltage
- 2.5V~5.5V
- RDS(on)
- 60mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
SY6283 and SY6283A are ultra-low RDS(ON) switch with current limiting function to protect the power source from over current and short circuit conditions.
Key features
- Ultra-low RDS(ON) switch with current limiting function
- Over temperature shutdown and automatic retry
- Reverse blocking (no body diode)
- At shutdown, OUT can be forced higher than IN
- Built-in softstart
- Output discharge function (SY6283: No output discharge function; SY6283A: Auto output discharge function)
- RoHS Compliant and Halogen Free
- Compact packages minimize board space: DFN1.2x1.6-4
