SilergyDatasheet (PDF)

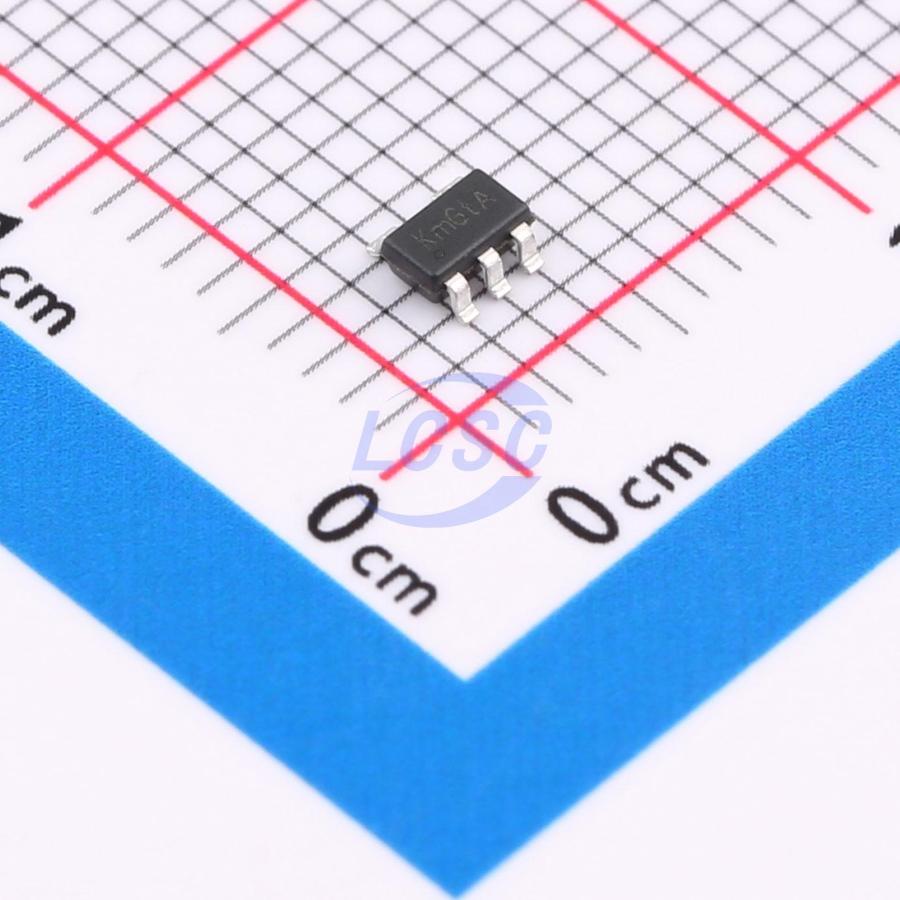

SY6288E1AAC
1 3A Active High Load Switch SOT-23-5 Power Distribution Switches, Load Drivers
SOT-23-5RoHSActive
3A Low Loss Power Distribution Switch
- Manufacturer
- Silergy
- Manufacturer part #
- SY6288E1AAC
- Store part #
- C207622
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,915 in stock
#C207622
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.21 | ₹121.05 |
| 50+ | ₹18.99 | ₹949.50 |
| 150+ | ₹16.74 | ₹2,511.00 |
| 500+ | ₹13.94 | ₹6,970.00 |
| 3,000+ | ₹12.69 | ₹38,070.00 |
| 6,000+ | ₹11.95 | ₹71,700.00 |
5 × ₹24.21
₹121.05
excl. GST
₹142.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY6288E1AAC
₹121.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Reverse current blocking;Output discharge function;Soft-start;Under-voltage lockout
- number of channels
- 1
- Maximum Continuous Current
- 3A
- Control Input Logic
- Active High
- RDS(on)
- 45mΩ
- Operating Voltage
- 2.5V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
SY6288E1/E2 is an ultra-low RDS(ON), 3A Low Loss Power Distribution switch with current limit to protect the power source from over current and short circuit conditions. It incorporates over temperature protection and reverse blocking function.
Applications
- USB 3.1 Application
- USB 3G Datacard
- USB Dongle
- MiniPCI Accessories
- USB Charger
- Public Place Multi-USB Charger
Key features
- ultra-low RDS(ON)
- 3A Low Loss Power Distribution switch with current limit to protect the power source from over current and short circuit conditions
- incorporates over temperature protection and reverse blocking function
- Extremely Low Power Path Resistance: 45mΩ (typ.)
- 3A load current capability
- Two Enable polarities: SY6288E1AAC: Active High SY6288E2AAC: Active Low
- Over temperature shutdown and automatic retry
- Reverse blocking (no body diode)
- Fault flag (OCB) output for over current and fault conditions
- At shutdown, OUT can be forced higher than IN
- Built-in soft-start
- Compact package minimizes the board space: SOT23-5
- RoHS Compliant and Halogen Free UL certification NO. 20160229-E333762 TUV certification NO. R 50188769
