VBsemi ElecDatasheet (PDF)

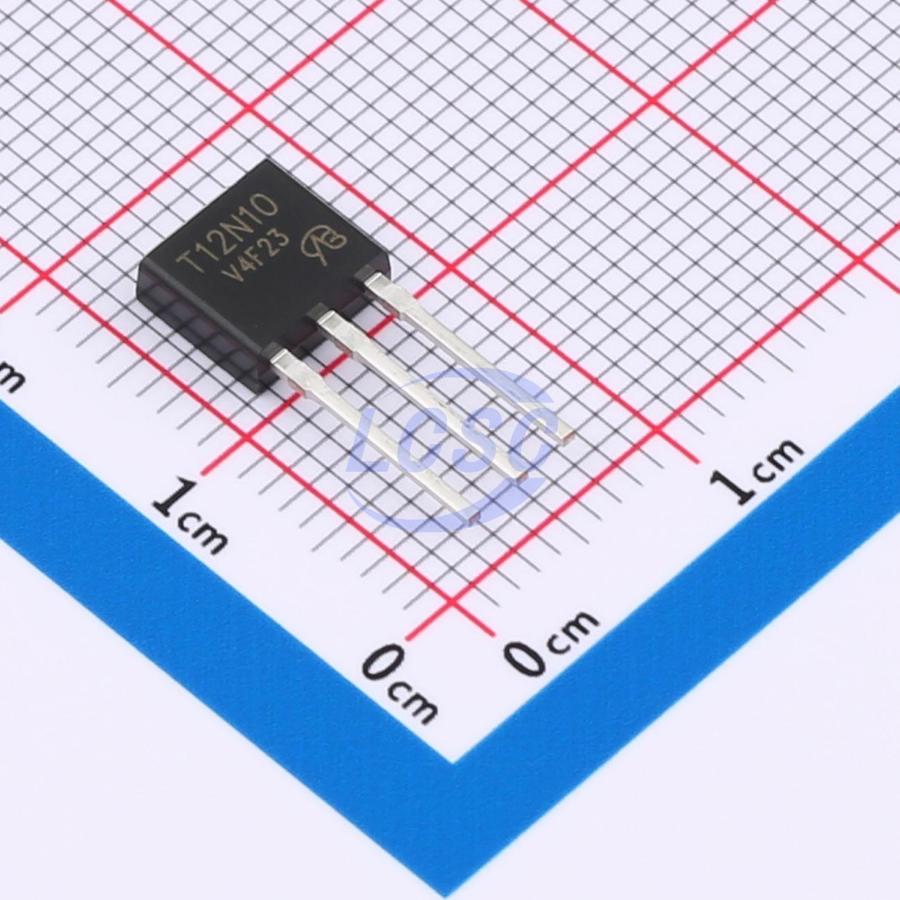

T12N10-VB TO251
N-Channel 100V 15A 2.7W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 100V 15A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- T12N10-VB TO251
- Store part #
- C22389866
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22389866
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.19 | ₹58.19 |
| 10+ | ₹45.80 | ₹458.00 |
| 30+ | ₹40.34 | ₹1,210.20 |
| 80+ | ₹33.83 | ₹2,706.40 |
| 480+ | ₹30.68 | ₹14,726.40 |
| 960+ | ₹29.00 | ₹27,840.00 |
1 × ₹58.19
₹58.19
excl. GST
₹68.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
T12N10-VB TO251
₹58.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 110pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 892pF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 70pF
- RDS(on)
- 110mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.55 g
Overview
Applications
- Primary Side Switch
- N-Channel MOSFET
Key features
- DT-Trench Power MOSFET
- 175 °C Junction Temperature
- 100 % Rg Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPU10N10-VB#C29779038VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 20 | ₹58.19 · 20 in stock | View |
 | CED16N10L-VB#C18794944VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹60.71 · 10 in stock | View |
 | FQU19N10L-VB#C29778987VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 20 | ₹58.19 · 20 in stock | View |
 | STD12L01A-VB#C29778709VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 20 | ₹58.19 · 20 in stock | View |
 | VBZFB15N10#C700669VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 22 | ₹57.06 · 22 in stock | View |
