VBsemi ElecDatasheet (PDF)

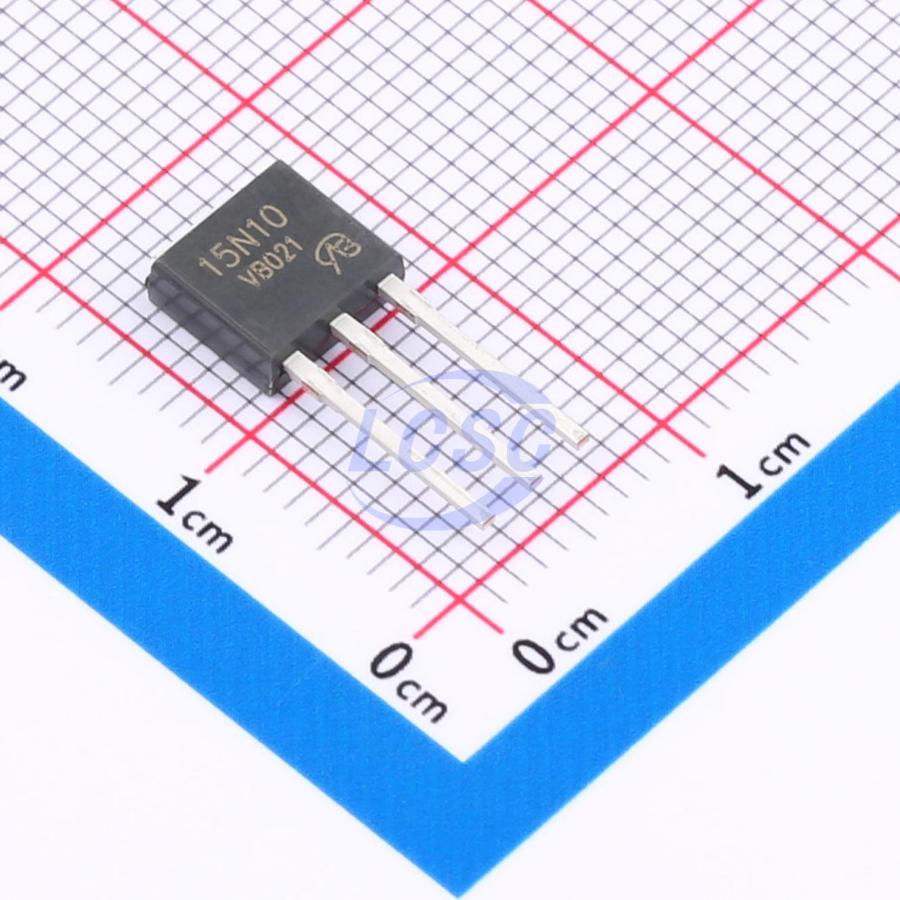

VBZFB15N10
N-Channel 100V 15A 2.7W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 100V 15A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZFB15N10
- Store part #
- C700669
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C700669
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.06 | ₹57.06 |
| 10+ | ₹45.31 | ₹453.10 |
| 30+ | ₹40.38 | ₹1,211.40 |
| 80+ | ₹33.99 | ₹2,719.20 |
| 480+ | ₹31.32 | ₹15,033.60 |
| 800+ | ₹29.46 | ₹23,568.00 |
1 × ₹57.06
₹57.06
excl. GST
₹67.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
VBZFB15N10
₹57.06 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 110pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 1.4nF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 70pF
- RDS(on)
- 115mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.76 g
Overview
Applications
- Primary Side Switch
- N-Channel MOSFET
Key features
- DT-Trench Power MOSFET 175°C Junction Temperature
- 100% Rg Tested
