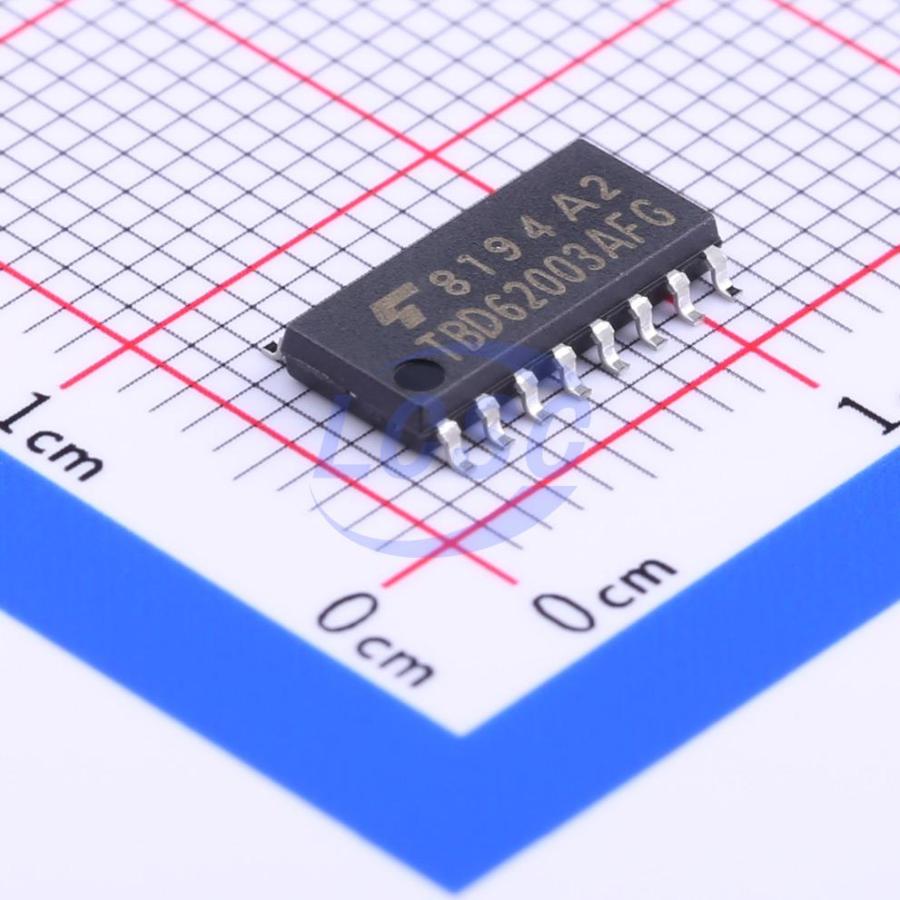

TBD62003AFG(Z,EL)

7 500mA SOIC-16 Power Distribution Switches, Load Drivers RoHS

SOIC-16ROHS CompliantActive

7 channel sink type DMos transistor array

Manufacturer: TOSHIBA
Manufacturer part #: TBD62003AFG(Z,EL)
Store part #: C163227
Package / case: SOIC-16
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,334 in stock

#C163227

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹124.22	₹124.22
10+	₹98.97	₹989.70
30+	₹86.37	₹2,591.10
100+	₹73.74	₹7,374.00
500+	₹66.14	₹33,070.00
1,000+	₹62.22	₹62,220.00

Quantity (min 1)

1 × ₹124.22

₹124.22

excl. GST

₹146.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

TBD62003AFG(Z,EL)

₹124.22 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
number of channels: 7
Maximum Continuous Current: 500mA
Operating Voltage: 2.5V~30V
RDS(on): 2Ω

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.315 g

Overview

TBD62003A series and TBD62004A series are DMOS transistor array with 7 circuits. It has a clamp diode for switching inductive loads built-in in each output.

Key features

7 circuits built-in
High voltage : VOUT = 50 V (MAX)
High current : lour = 500 mA/ch (MAX)
Input voltage(output on) : TBD62003A series 2.5 V (MIN) TBD62004A series 7.0 V (MIN)
Input voltage(output off) : TBD62003A series 0.6 V (MAX) TBD62004A series 1.0 V (MAX)
Package : PG type DIP16 - P - 300 - 2.54A FG type SOP16 - P - 225 - 1.27 FNG type SSOP16 - P - 225 - 0.65B FWG type P - SOP16 - 0410 - 1.27 - 002
