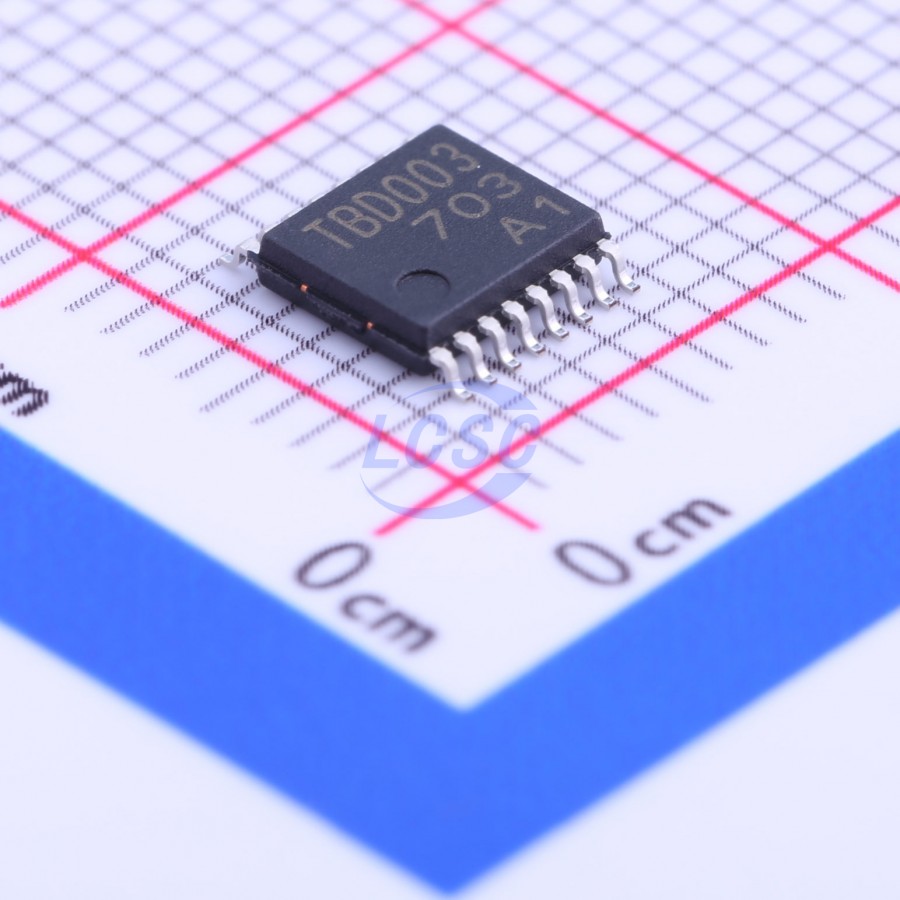

TBD62003AFNG,EL

7 500mA SSOP-16-225mil Power Distribution Switches, Load Drivers RoHS

SSOP-16-225milROHS3 CompliantActive

7 channel sink type DMos transistor array

Manufacturer: TOSHIBA
Manufacturer part #: TBD62003AFNG,EL
Store part #: C150145
Package / case: SSOP-16-225mil
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,665 in stock

#C150145

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹107.96	₹107.96
10+	₹86.42	₹864.20
30+	₹75.53	₹2,265.90
100+	₹64.87	₹6,487.00
500+	₹58.56	₹29,280.00
1,000+	₹55.08	₹55,080.00

Quantity (min 1)

1 × ₹107.96

₹107.96

excl. GST

₹127.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

TBD62003AFNG,EL

₹107.96 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
number of channels: 7
Maximum Continuous Current: 500mA
RDS(on): 2Ω
Operating Voltage: 50V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.009 g

Overview

TBD62003A series and TBD62004A series are DMOS transistor array with 7 circuits. It has a clamp diode for switching inductive loads built-in in each output.

Key features

7 circuits built-in
High voltage : VOUT = 50 V (MAX)
High current : lour = 500 mA/ch (MAX)
Input voltage(output on) : TBD62003A series 2.5 V (MIN) TBD62004A series 7.0 V (MIN)
Input voltage(output off) : TBD62003A series 0.6 V (MAX) TBD62004A series 1.0 V (MAX)
Package : PG type DIP16 - P - 300 - 2.54A FG type SOP16 - P - 225 - 1.27 FNG type SSOP16 - P - 225 - 0.65B FWG type P - SOP16 - 0410 - 1.27 - 002
