TOSHIBADatasheet (PDF)

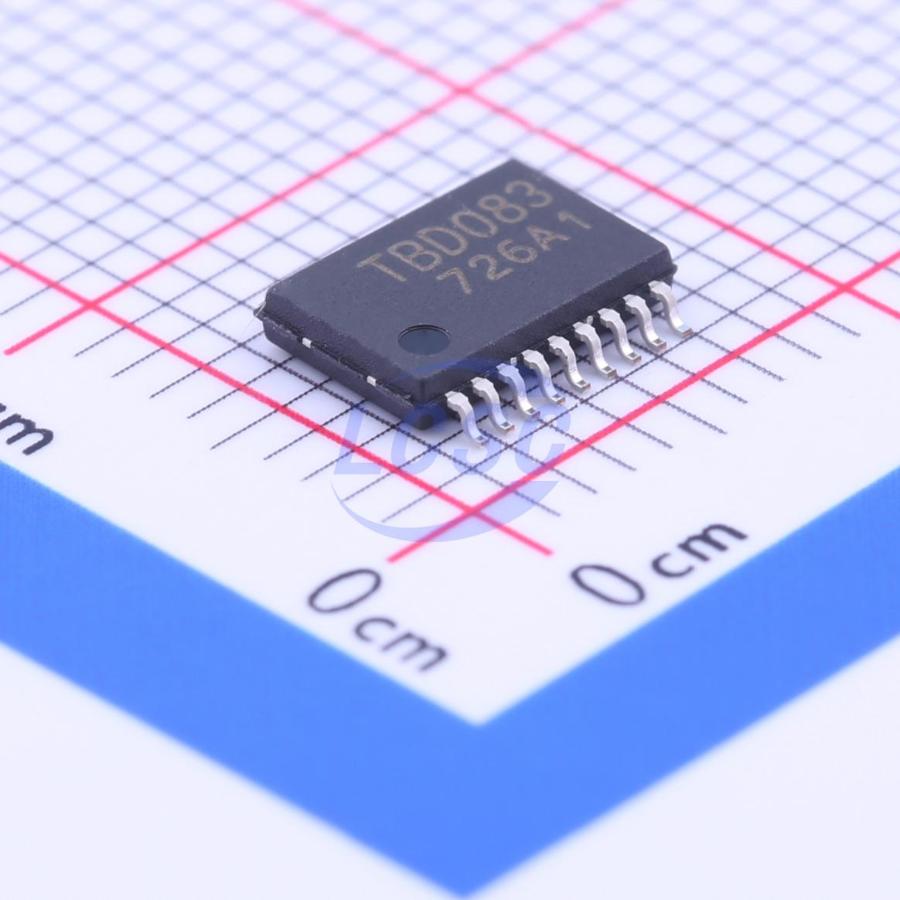

TBD62083AFNG,EL
8 Active High 500mA Low Side Switch SSOP-18-225mil Power Distribution Switches, Load Drivers RoHS
SSOP-18-225milROHS3 CompliantActive
8 channel sink type DMoS transistor array
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TBD62083AFNG,EL
- Store part #
- C163229
- Package / case
- SSOP-18-225mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,334 in stock
#C163229
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.11 | ₹93.11 |
| 10+ | ₹74.41 | ₹744.10 |
| 30+ | ₹64.83 | ₹1,944.90 |
| 100+ | ₹55.70 | ₹5,570.00 |
| 500+ | ₹50.04 | ₹25,020.00 |
| 1,000+ | ₹47.20 | ₹47,200.00 |
1 × ₹93.11
₹93.11
excl. GST
₹109.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TBD62083AFNG,EL
₹93.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- number of channels
- 8
- Control Input Logic
- Active High
- Maximum Continuous Current
- 500mA
- Operating Voltage
- 2.5V~30V
- RDS(on)
- 700mΩ
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.126 g
Overview
TB62083A series and TB62084A series are DMOS transistor array with 8 circuits. It has a clamp diode for switching inductive loads built-in in each output.
Key features
- 8 circuits built-in
- High voltage : V = 50V (MAX)
- High current : IOUT = 500 mA/ch (MAX)
- Input voltage(output on) : TBD62083A series 2.5 V (MIN) TBD62084A series 7.0 V (MIN)
- Input voltage(output off) : TBD62083A series 0.6 V (MAX) TBD62084A series 1.0 V (MAX)
- Package : PG type P-DIP18-300-2.54-001 FG type SOP18-P-375-1.27 FNG type SSOP18-P-225-0.65 FWG type P-SOP18-0812-1.27-001
