TOSHIBADatasheet (PDF)

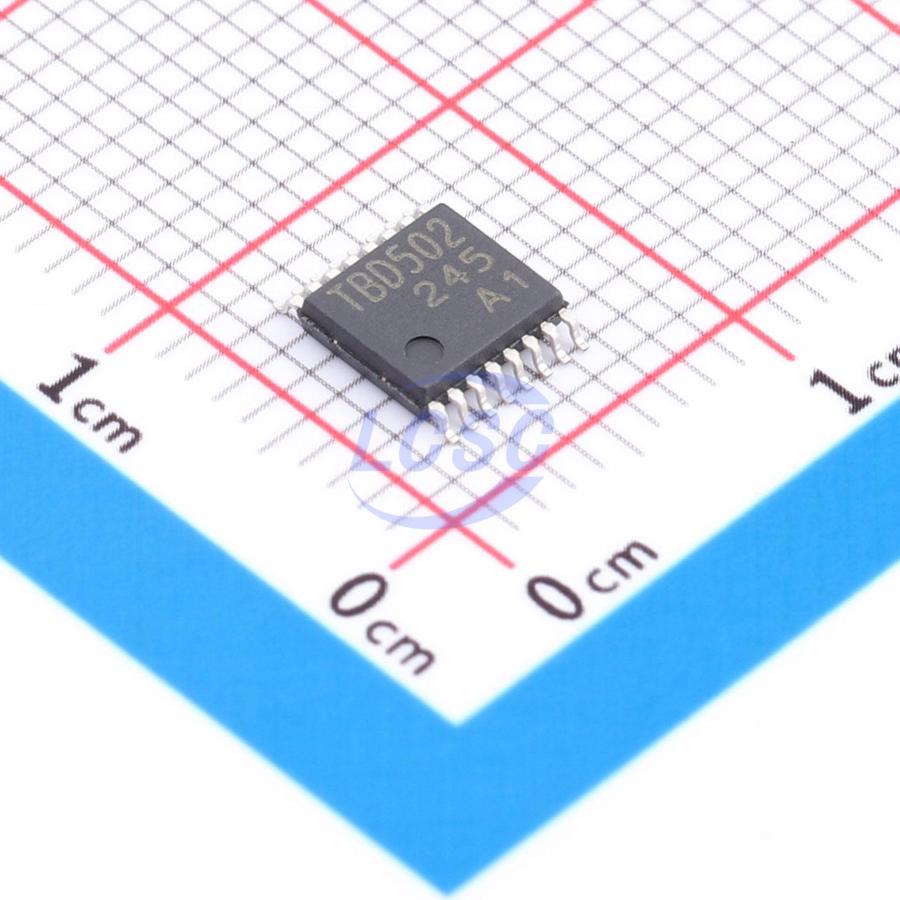

TBD62502AFNG,EL
Seven channels 300mA MOS SSOP-16-4.4mm Power Distribution Switches, Load Drivers RoHS
SSOP-16-4.4mmROHS3 CompliantActive
7 channel sink type DMos transistor array
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TBD62502AFNG,EL
- Store part #
- C2150132
- Package / case
- SSOP-16-4.4mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,098 in stock
#C2150132
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹206.88 | ₹206.88 |
| 10+ | ₹171.88 | ₹1,718.80 |
| 30+ | ₹152.56 | ₹4,576.80 |
| 100+ | ₹130.82 | ₹13,082.00 |
| 500+ | ₹121.25 | ₹60,625.00 |
| 1,000+ | ₹116.91 | ₹1,16,910.00 |
1 × ₹206.88
₹206.88
excl. GST
₹244.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TBD62502AFNG,EL
₹206.88 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- number of channels
- Seven channels
- Vce Saturation(VCE(sat))
- 650mV
- Input Current(on)
- 1mA
- Operating Voltage
- 30V
- Input Current(off)
- 1uA
- Current - Collector(Ic)
- 300mA
- Type
- MOS
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
TBD62502A series and TBD62503A series are DMOS transistor array with 7 circuits.
Key features
- 7 circuits built-in
- High voltage : VOUT = 50 V (MAX)
- High current : IOUT = 300 mA/ch (MAX)
- Input voltage(output on) : TBD62502A series 14 V (MIN), TBD62503A series 2.5 V (MIN)
- Input voltage(output off) : TBD62502A series 7.0 V (MAX), TBD62503A series 0.6 V (MAX)
- Package : PG type DIP16 - P - 300 - 2.54A, FG type SOP16 - P - 225 - 1.27, FNG type SSOP16 - P - 225 - 0.65B, FWG type P - SOP16 - 0410 - 1.27 - 002
