TOSHIBADatasheet (PDF)

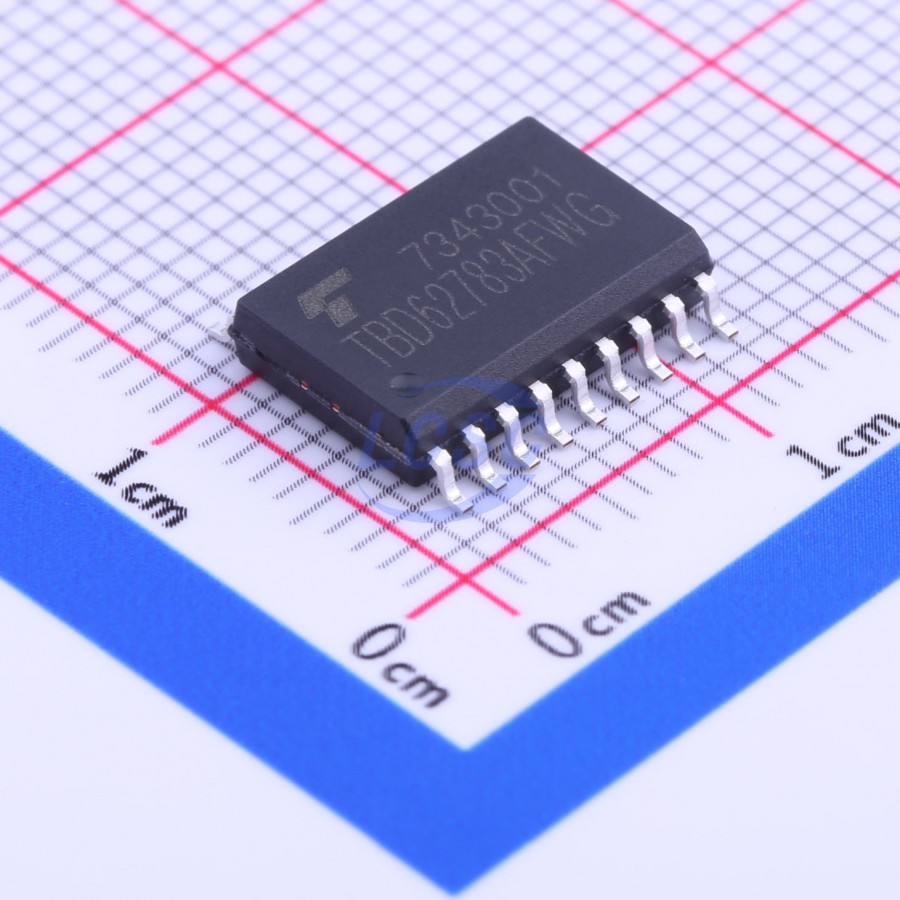

TBD62783AFWG,EL
8 400mA MOS SOIC-18-300mil Power Distribution Switches, Load Drivers RoHS
SOIC-18-300milROHS3 CompliantActive
8channel source type DMos transistor array
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TBD62783AFWG,EL
- Store part #
- C146353
- Package / case
- SOIC-18-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,490 in stock
#C146353
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.30 | ₹140.30 |
| 10+ | ₹112.24 | ₹1,122.40 |
| 30+ | ₹98.33 | ₹2,949.90 |
| 100+ | ₹84.41 | ₹8,441.00 |
| 500+ | ₹75.93 | ₹37,965.00 |
| 1,000+ | ₹71.57 | ₹71,570.00 |
1 × ₹140.30
₹140.30
excl. GST
₹165.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TBD62783AFWG,EL
₹140.30 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- number of channels
- 8
- Vce Saturation(VCE(sat))
- 1.14V
- Input Current(on)
- 0.1mA
- Voltage - Forward(Vf)
- 2V
- Operating Voltage
- 30V
- Input Current(off)
- 1uA
- Current - Collector(Ic)
- 400mA
- Type
- MOS
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.51 g
Overview
TBD62783A series are DMOS transistor array with 8 circuits. It has a clamp diode for switching inductive loads built-in in each output.
Key features
- 8 circuits built-in
- High voltage : VoUT = 50 V (MAX)
- High current : |Iour| = -500 mA (MAX for each channel)
- Input voltage(output on) : 2.0 V (MIN)
- Input voltage(output off) : 0.6 V (MAX)
- Package : PG type P-DIP18-300-2.54-001
- FG type SOP18-P-375-1.27
- FNG type SSOP18-P-225-0.65
- FWG type P-SOP18-0812-1.27-001
