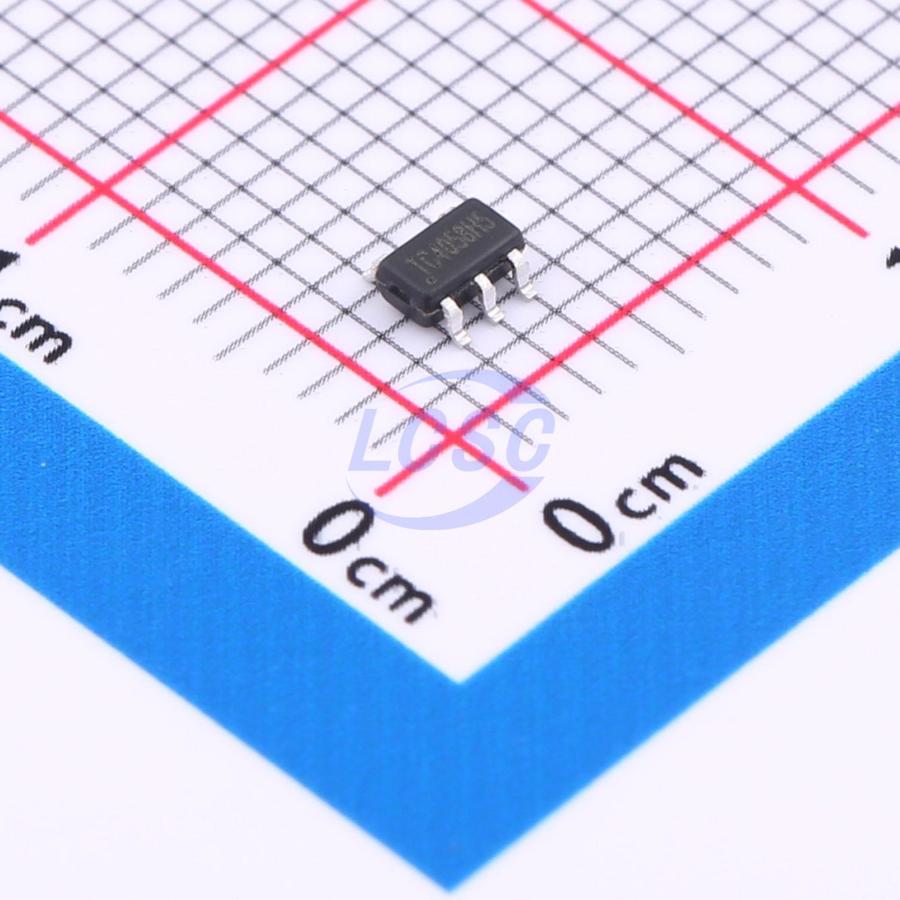

TC4058H5
Battery Charging IC Lithium-ion SOT-23-5
Single-cell lithium battery linear charging power supply chip
- Manufacturer
- FM
- Manufacturer part #
- TC4058H5
- Store part #
- C19630714
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
960 in stock
#C19630714
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.45 | ₹94.50 |
| 100+ | ₹7.46 | ₹746.00 |
| 300+ | ₹6.48 | ₹1,944.00 |
| 3,000+ | ₹5.74 | ₹17,220.00 |
| 6,000+ | ₹5.15 | ₹30,900.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹9.45
₹94.50
excl. GST
₹111.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC4058H5
₹94.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Trickle charging;Constant current charging;Constant voltage charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Reverse current blocking;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
TC4058H is a lithium battery charging power management IC that supports AC adapter or USB interface as power input; when the power source is removed, TC4058H enters sleep mode. TC4058H charges in a linear manner, featuring a three-stage full-process charging sequence — trickle charge, constant current, and constant voltage — with flexible charge current setting via an external resistor. TC4058H incorporates multiple protection features, including input overvoltage protection and chip overtemperature protection. TC4058H is currently available in SOT23-5L, SOT23-6L, ESOP8, and DFN-6 packages.
Applications
- Bluetooth earphone charging case
- Other portable devices
Key features
- 40V input voltage rating
- Programmable linear charge current, up to 1A
- Selectable full-charge voltage: 4.2V / 4.35V / 4.4V
- Integrated MOSFET with reverse current protection
- Three-stage charging: trickle / constant current / constant voltage
- Input overvoltage and undervoltage protection
- Output overvoltage protection
- Over-temperature protection
