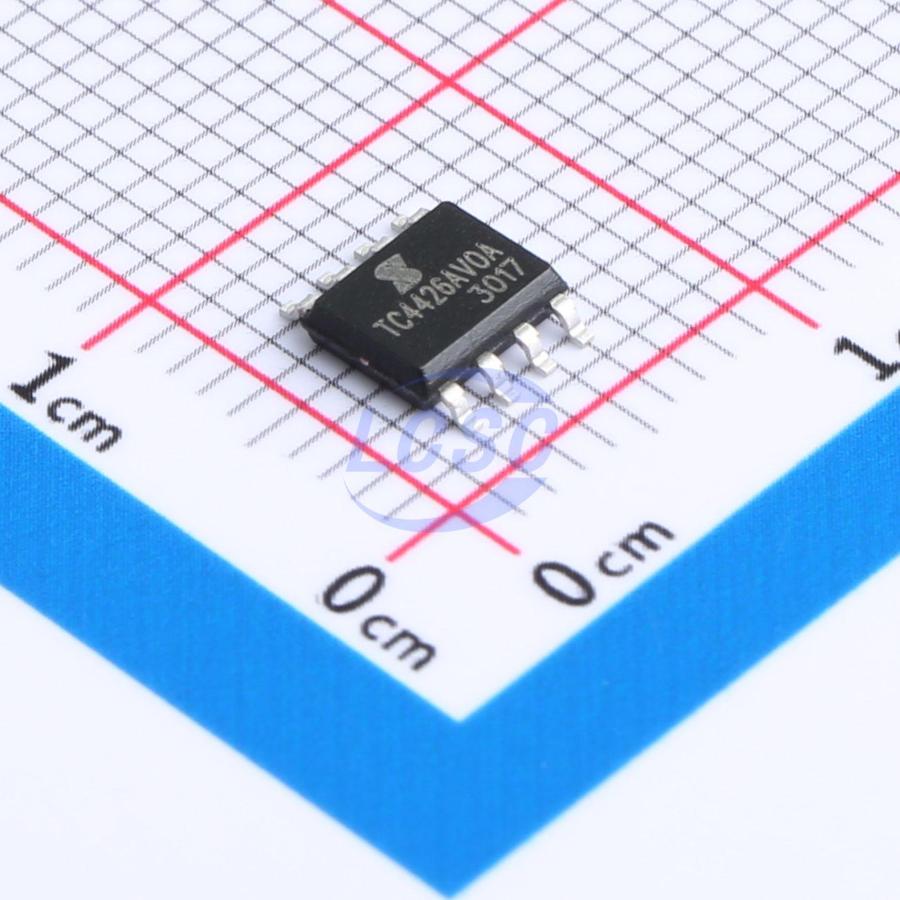

TC4426AVOA713-JSM
Low Side Gate Driver IC MOSFET IGBT SOP-8
Dual-channel 2A ultra-high-speed power switch driver
- Manufacturer
- JSMSEMI
- Manufacturer part #
- TC4426AVOA713-JSM
- Store part #
- C7466364
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,830 in stock
#C7466364
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹130.62 | ₹130.62 |
| 10+ | ₹107.30 | ₹1,073.00 |
| 30+ | ₹94.57 | ₹2,837.10 |
| 100+ | ₹80.09 | ₹8,009.00 |
| 500+ | ₹77.51 | ₹38,755.00 |
| 1,000+ | ₹74.48 | ₹74,480.00 |
1 × ₹130.62
₹130.62
excl. GST
₹154.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC4426AVOA713-JSM
₹130.62 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 70ns
- High Level Delay Time
- 70ns
- Quiescent Current
- 1mA
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.119 g
Overview
TC4426AVOA is a power switch driver. It features matched rise and fall times when charging and discharging the gates of power switches. The TC4426A offers high latch-up immunity under any conditions within its rated power and voltage range. When noise spikes of up to 5V (either polarity) appear on the ground pin, the TC4426A will not be damaged. The TC4426A can accept reverse currents of up to 500mA forced back into its output without damage or logic upset. All terminals are fully protected against ESD up to 2.0 kV.
Applications
- Switching power supplies, switch-mode converters
- Line drivers
- Pulse transformer drive
- Driving MOSFETs and IGBTs
- Motor control
- Pulse generators
- Power switches
- DC-DC converters
- Class D switching amplifiers
Key features
- Latch-up protection: withstands 0.5A reverse current
- Input logic protection down to -10V
- Low output impedance
- Dual-channel driver in single chip
- Peak output current: 2A
- Operating range: 4.5V~20V
- Maximum negative input voltage: -5V
- High capacitive load drive capability: switching time <25ns at 1nF load
- Matched rise/fall times
- Propagation delay: 40ns
- Wide temperature range: -40℃~125℃
- Turn-on/turn-off delay: Ton/Toff = 70ns/70ns
- RoHS compliant
- SOIC8/DFN8
