TOSHIBA

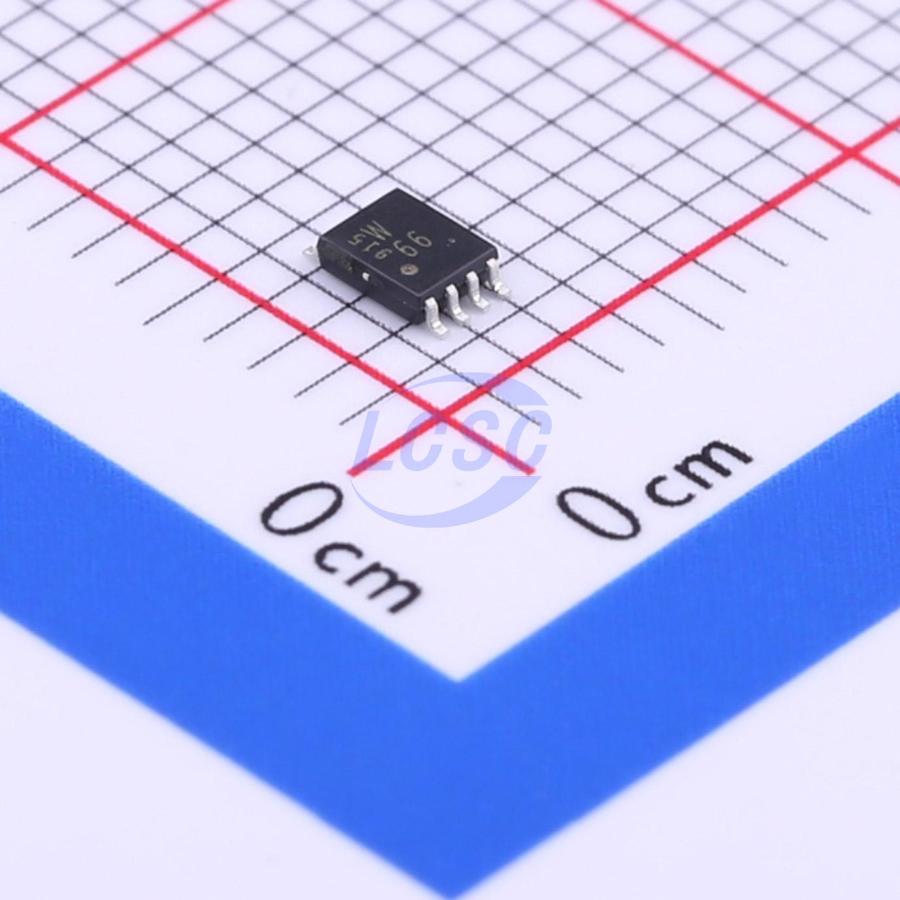

TC7W66FK,LF

2/2 2V~12V 1uA 7ns@5V,50pF VSSOP-8-0.5mm Signal Switches, Multiplexers, Decoders RoHS

VSSOP-8-0.5mmROHS3 CompliantActive

Dual Bilateral Switch

Manufacturer: TOSHIBA
Manufacturer part #: TC7W66FK,LF
Store part #: C261925
Package / case: VSSOP-8-0.5mm
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,260 in stock

#C261925

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹24.44	₹122.20
50+	₹21.41	₹1,070.50
150+	₹20.11	₹3,016.50
500+	₹18.50	₹9,250.00
3,000+	₹17.77	₹53,310.00
6,000+	₹17.34	₹1,04,040.00

Quantity (min 5, multiples of 5)

5 × ₹24.44

₹122.20

excl. GST

₹144.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TC7W66FK,LF

₹122.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 2/2
Voltage - Supply: 2V~12V
Operating Temperature: -40℃~+85℃
Quiescent Current: 1uA
Propagation Delay: 7ns@5V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

The TC7W66 is a high speed CMOS Dual Bilateral Switch fabricated with silicon gate CMOS technology. It consists of four independent high speed switches capable of controlling either digital or analog signals while maintaining the CMOS low power dissipation. Control input (C) is provided to control the switch. The switch turns ON while the C input is high, and the switch turns OFF while low. All inputs are equipped with protection circuits against static discharge or transient excess voltage.
