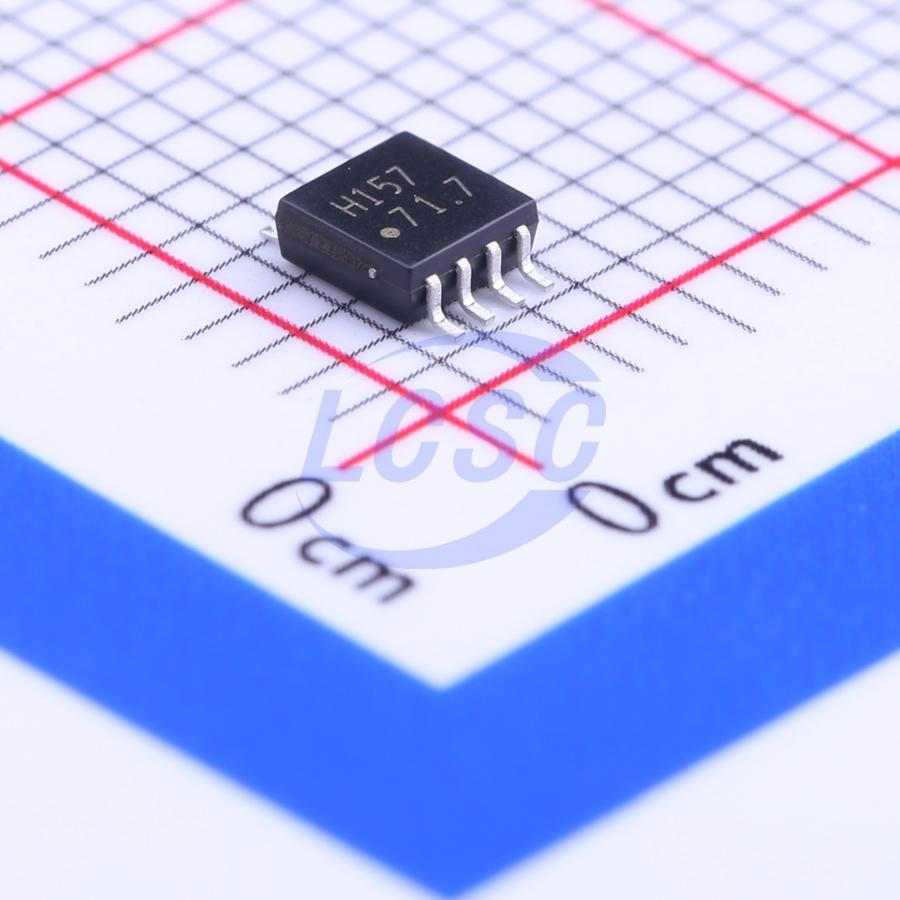

TOSHIBA

TC7WH157FU,LJ(CT

2/1 2V~5.5V 20uA 4.1ns@5.0V,15pF SSOP-8-3mm Signal Switches, Multiplexers, Decoders RoHS

SSOP-8-3mmROHS3 CompliantActive

CMOS Digital Integrated Circuits Silicon Monolithic 2-Channel Multiplexer

Manufacturer: TOSHIBA
Manufacturer part #: TC7WH157FU,LJ(CT
Store part #: C128633
Package / case: SSOP-8-3mm
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,765 in stock

#C128633

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹27.97	₹139.85
50+	₹24.63	₹1,231.50
150+	₹23.22	₹3,483.00
500+	₹21.43	₹10,715.00
3,000+	₹20.65	₹61,950.00
6,000+	₹20.18	₹1,21,080.00

Quantity (min 5, multiples of 5)

5 × ₹27.97

₹139.85

excl. GST

₹165.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TC7WH157FU,LJ(CT

₹139.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Multiplexer
Number of Channels: 2/1
Voltage - Supply: 2V~5.5V
Operating Temperature: -40℃~+85℃
Quiescent Current: 20uA
Current - Output High(IOH): 8mA
Propagation Delay: 4.1ns@5.0V,15pF
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.086 g

Overview

2-Channel Multiplexer

Key features

Wide operating temperature range: T opr = -40 to 85 °C
High speed operation: t pd = 4.1 ns (typ.) (V CC = 5.0 V , C L = 15 pF)
Low power dissipation: I CC = 2.0 μA (max) (T a = 25 °C)
High noise immunity: V NIH = V NIL = 28 % V CC (min)
5.5 V tolerant inputs
Balanced propagation delays: t pLH ≈ t pHL
Wide operating voltage range: V CC = 2.0 to 5.5 V
Low noise: V OLP = 0.8 V (max)
