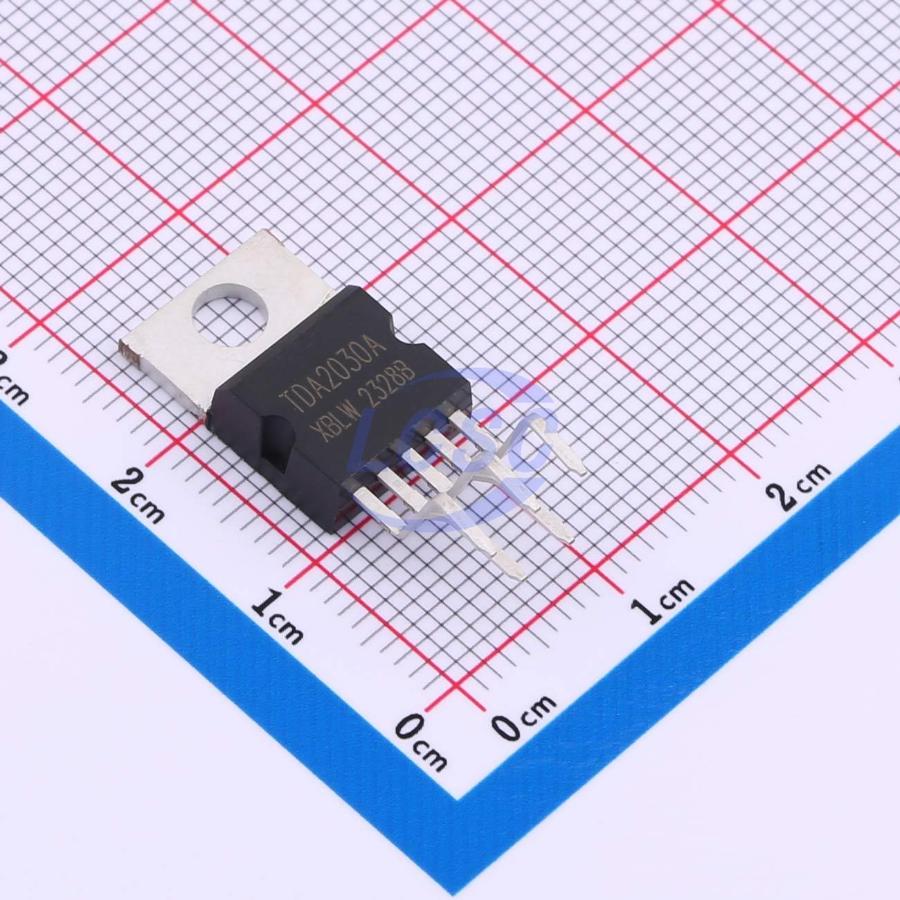

TDA2030A(XBLW)
26mA -4.5V~25V 25W Class AB TO-220B Audio Amplifiers RoHS
18W Hi-Fi AMPLIFIER AND 35W DRIVER
- Manufacturer
- XBLW
- Manufacturer part #
- TDA2030A(XBLW)
- Store part #
- C19267476
- Package / case
- TO-220B
- Category
- Audio Amplifiers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,320 in stock
#C19267476
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.90 | ₹159.50 |
| 50+ | ₹25.34 | ₹1,267.00 |
| 150+ | ₹22.53 | ₹3,379.50 |
| 500+ | ₹19.02 | ₹9,510.00 |
| 2,000+ | ₹17.46 | ₹34,920.00 |
| 5,000+ | ₹16.52 | ₹82,600.00 |
5 × ₹31.90
₹159.50
excl. GST
₹188.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
TDA2030A(XBLW)
₹159.50 for 5 + GST
Specifications
- Quiescent Current
- 26mA
- Voltage - Supply
- -4.5V~25V
- Total Harmonic Distortion + Noise (THD+N)
- 0.05%
- Operating Temperature
- -20℃~+125℃
- Signal-to-Noise Ratio
- 106dB
- Output Power
- 25W
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 45dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.646 g
Overview
The XBLW TDA2030A is a monolithic integrated circuit in Pentawatt package, intended for use as an audio class AB audio amplifier. Thanks to its high power capability the TDA2030A is able to provide up to 35W true rms power into 4 ohm load @ THD 10%, supply voltage (VS) = 36V, frequency (f) = 1kHz and up to 32W into 8 ohm load @ THD = 10%, supply voltage (VS) = 44V, frequency (f) = 1kHz. The high power and very low harmonic and crossover distortion (total harmonic distortion (THD) = 0.05% typically, @ supply voltage (VS) = 44V or output power (PO) = 0.1 to 15W, load resistance (RL) = 8 ohm, frequency (f) = 100Hz to 15kHz) make the device most suitable for both HiFi and high class TV sets.
Applications
- Home audio system
- Public Address System
- Multimedia equipment
- Sound amplification equipment
Key features
- AB class power amplifier
- High working voltage, high output current
- Low harmonic distortion
- Automatically limit power consumption
- Equipped with thermal protection function
- Packaging form TO - 220B
