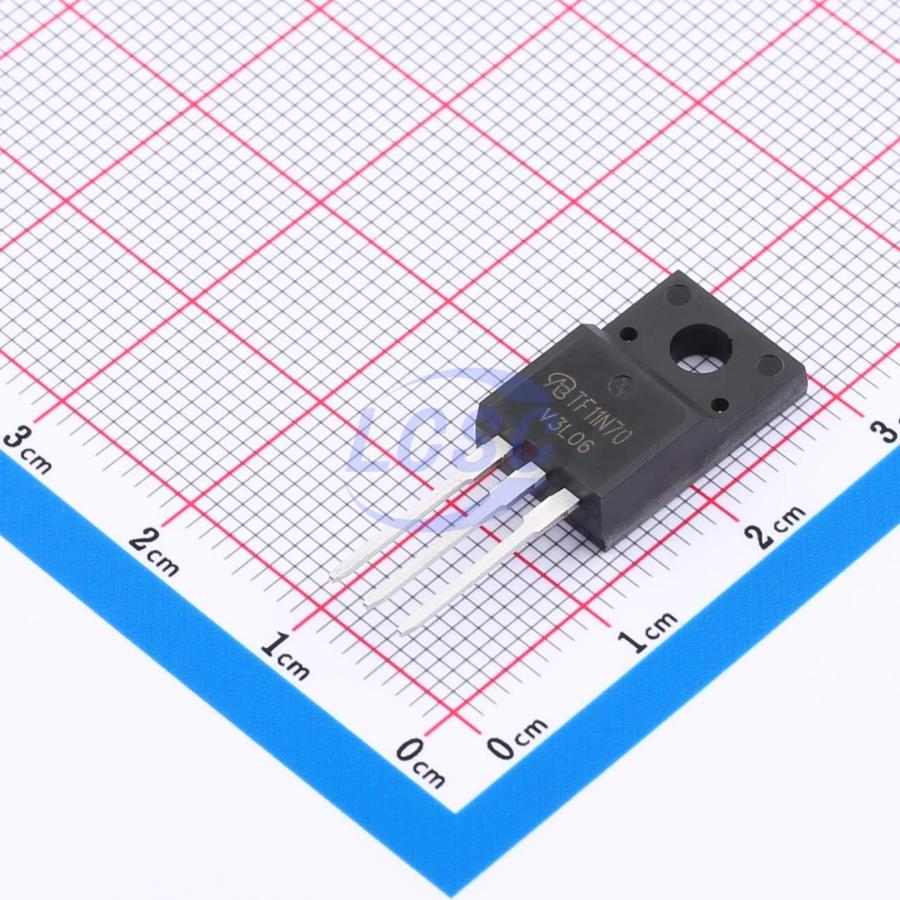

TF11N70-VB
N-Channel 700V 7A 99W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 700V 7A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- TF11N70-VB
- Store part #
- C20417739
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C20417739
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹141.79 | ₹141.79 |
| 10+ | ₹118.26 | ₹1,182.60 |
| 50+ | ₹105.46 | ₹5,273.00 |
| 100+ | ₹90.74 | ₹9,074.00 |
| 500+ | ₹84.45 | ₹42,225.00 |
| 1,000+ | ₹81.51 | ₹81,510.00 |
1 × ₹141.79
₹141.79
excl. GST
₹167.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
TF11N70-VB
₹141.79 for 1 + GST
Specifications
- Drain to Source Voltage
- 700V
- Output Capacitance(Coss)
- 27pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 366pF
- Pd - Power Dissipation
- 99W
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 750mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 64nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.77 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P10NK70ZFP-VB#C20417578VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹143.45 · 10 in stock | View |
 | VBMB17R07S#C42412819VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹193.97 · 10 in stock | View |
 | HFS10N80-VB#C20755231VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 8 | ₹243.04 · 8 in stock | View |
 | R8008ANX-VB#C29779180VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹232.53 · 10 in stock | View |
 | STP10NK80ZFP-VB#C7568924VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 30 | ₹241.18 · 30 in stock | View |
