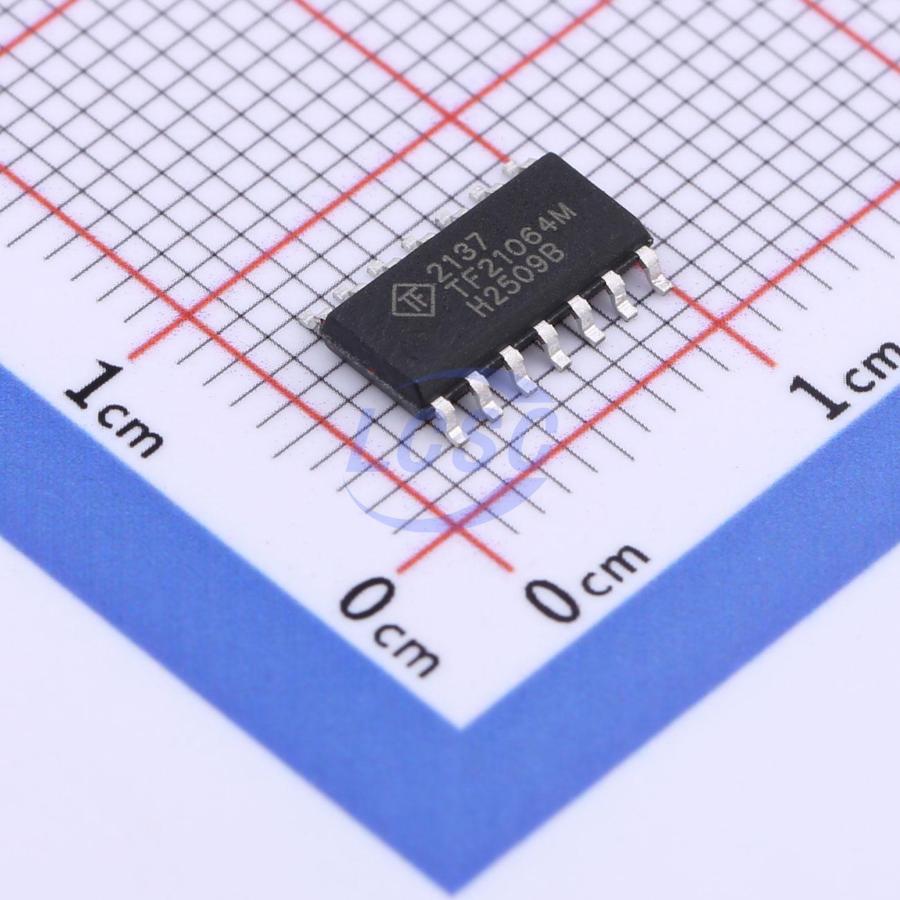

TF21064M-TUH
10V~20V 600mA 290mA SOIC-14 Gate Drivers
High-Side and Low-Side Gate Driver
- Manufacturer
- TFSS
- Manufacturer part #
- TF21064M-TUH
- Store part #
- C3034732
- Package / case
- SOIC-14
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,753 in stock
#C3034732
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.38 | ₹95.38 |
| 10+ | ₹84.87 | ₹848.70 |
| 30+ | ₹79.62 | ₹2,388.60 |
| 100+ | ₹74.37 | ₹7,437.00 |
| 500+ | ₹67.64 | ₹33,820.00 |
| 1,000+ | ₹65.96 | ₹65,960.00 |
1 × ₹95.38
₹95.38
excl. GST
₹112.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TF21064M-TUH
₹95.38 for 1 + GST
Specifications
- Low Level Delay Time
- 220ns
- High Level Delay Time
- 200ns
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 100ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
The TF21064M is a high voltage, high speed gate driver capable of driving N-channel MOSFETs and IGBTs in a half bridge configuration. High voltage process enables the TF21064’s high side to switch to 600V in a bootstrap operation. The TF21064M logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with controlling devices. The driver outputs feature high pulse current buffers designed for minimum driver cross conduction. The TF21064M is offered in PDIP-14 and SOIC-14(N) packages and operates over an extended -40 °C to +125 °C temperature range.
Applications
- DC-DC Converters
- AC-DC Inverters
- Motor Controls
- Class D Power Amplifiers
Key features
- Floating high-side driver in bootstrap operation to 600V
- Drives two N-channel MOSFETs or IGBTs in a half bridge configuration
- Outputs tolerant to negative transients
- Wide logic and low side gate driver supply voltage: 10V to 20V
- Wide logic supply voltage offset voltage: -5V to 5V
- Logic input (HIN and LIN) 3.3V capability
- Schmitt triggered logic inputs with internal pull down
- Undervoltage lockout for high and low side drivers
- Extended temperature range: -40 °C to +125 °C
