TFSSDatasheet (PDF)

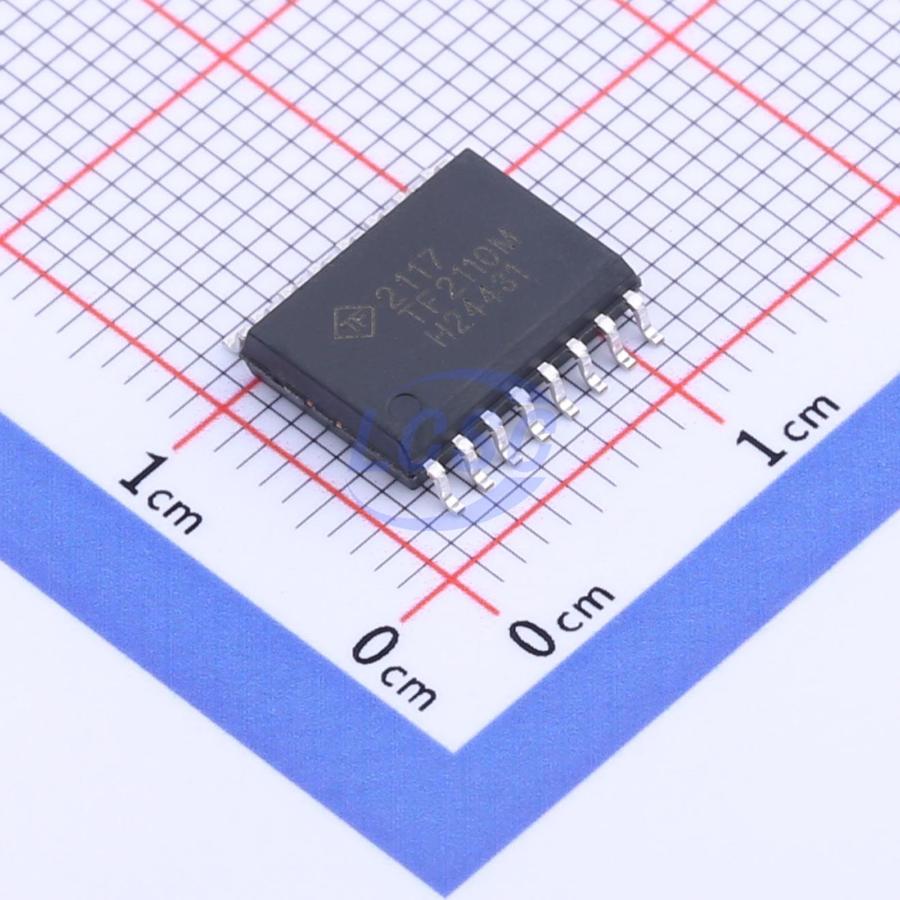

TF2110M-TEH
Low Side High Side Gate Driver IC MOSFET IGBT SOIC-16-300mil
SOIC-16-300milRoHSActive
High-Side and Low-Side Gate Drivers
- Manufacturer
- TFSS
- Manufacturer part #
- TF2110M-TEH
- Store part #
- C2847595
- Package / case
- SOIC-16-300mil
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,090 in stock
#C2847595
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.05 | ₹77.05 |
| 10+ | ₹68.47 | ₹684.70 |
| 30+ | ₹64.18 | ₹1,925.40 |
| 100+ | ₹58.60 | ₹5,860.00 |
| 500+ | ₹56.23 | ₹28,115.00 |
| 1,500+ | ₹54.73 | ₹82,095.00 |
1 × ₹77.05
₹77.05
excl. GST
₹90.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
TF2110M-TEH
₹77.05 for 1 + GST
Specifications
- Low Level Delay Time
- 105ns
- High Level Delay Time
- 94ns
- Quiescent Current
- 600nA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Current - Output Low(IOL)
- 2.5A
- Rise Time
- 25ns
- Fall Time
- 17ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 2.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.745 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XL2113SPBF#C22397801XINLUDA · SOP-16-300mil | XINLUDA | SOP-16-300mil | 168 | ₹64.62 · 168 in stock | View |
 | HX2110-S#C41399164ZHHXDZ · WSOP-16 | ZHHXDZ | WSOP-16 | 30 | ₹83.40 · 30 in stock | View |
 | JSM2110STR#C19077359JSMSEMI · SOP-16-300mil | JSMSEMI | SOP-16-300mil | 265 | ₹134.65 · 265 in stock | View |
 | TF2110M-TR#C5804624JSMSEMI · SOIC-16-300mil | JSMSEMI | SOIC-16-300mil | 495 | ₹98.23 · 495 in stock | View |
 | COS2113STRPBF#C7501649COSINE · WSOP-16-300mil | COSINE | WSOP-16-300mil | 298 | ₹75.74 · 298 in stock | View |
