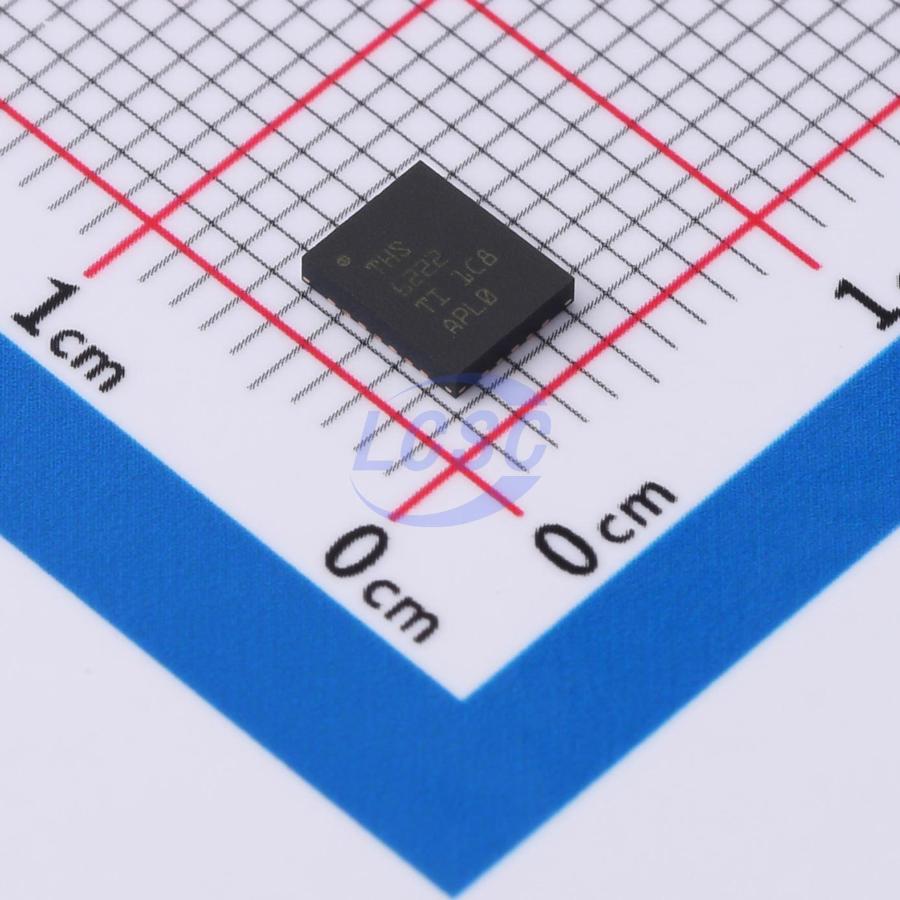

THS6222IRHFR

Rail-to-rail output 12mV 1uA 2 VQFN-24-EP(4x5) Special Purpose Amplifiers RoHS

VQFN-24-EP(4x5)ROHS3 CompliantActive

THS6222 8V to 32V Differential HPLC Line Driver with Common-Mode Buffer

Manufacturer: TI
Manufacturer part #: THS6222IRHFR
Store part #: C1855812
Package / case: VQFN-24-EP(4x5)
Category: Special Purpose Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,722 in stock

#C1855812

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹160.24	₹160.24
10+	₹127.40	₹1,274.00
30+	₹111.11	₹3,333.30
100+	₹94.79	₹9,479.00
500+	₹85.02	₹42,510.00
1,000+	₹80.02	₹80,020.00

Quantity (min 1)

1 × ₹160.24

₹160.24

excl. GST

₹189.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

THS6222IRHFR

₹160.24 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Type: Push-pull
Rail to Rail: Rail-to-rail output
Quiescent Current: 19.5mA
Single Supply: 8V~32V
Common Mode Rejection Ratio(CMRR): 65dB
Gain Bandwidth Product: 205MHz
Input Offset Voltage Drift(Vos TC): 40uV/℃
Vos - Input Offset Voltage: 12mV
Ib - Input Bias Current: 1uA
Maximum Power Supply Range (Vdd-Vss): 32V
Output Current: 338mA
Features: Enable/shutdown function
Number of Channels: 2
Slew Rate: 5500V/us
Noise density(eN): 2.5nV/√Hz@1MHz
Power Supply Rejection Ratio (PSRR): 83dB
Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.16 g

Overview

THS6222 is a differential line driver amplifier with a current feedback architecture, manufactured using a proprietary high-speed silicon-germanium (SiGe) process. It is designed for wideband, high-speed, high-performance line communication (HPLC) line driver applications requiring high linearity when driving heavy line loads. The unique architecture of the THS6222 minimizes quiescent current while delivering extremely high linearity. The amplifier features an adjustable current pin (IADJ) that sets rated current consumption across multiple bias modes, enabling improved power savings without utilizing the amplifier's full performance. The shutdown bias mode further reduces power consumption in receive mode in time-division multiplexing (TDM) systems while maintaining high output impedance. The integrated 1/2 Vs common-mode buffer requires no external components, reducing system cost and saving board space. A wide output swing of 57VPP (100Ω load) with a 32V supply and current drive exceeding 650mA (25Ω load) delivers a wideband dynamic range with low distortion. The THS6222 is available in a 24-pin VQFN package with an exposed thermal pad, rated for an ambient operating temperature range of -40°C to +85°C.
