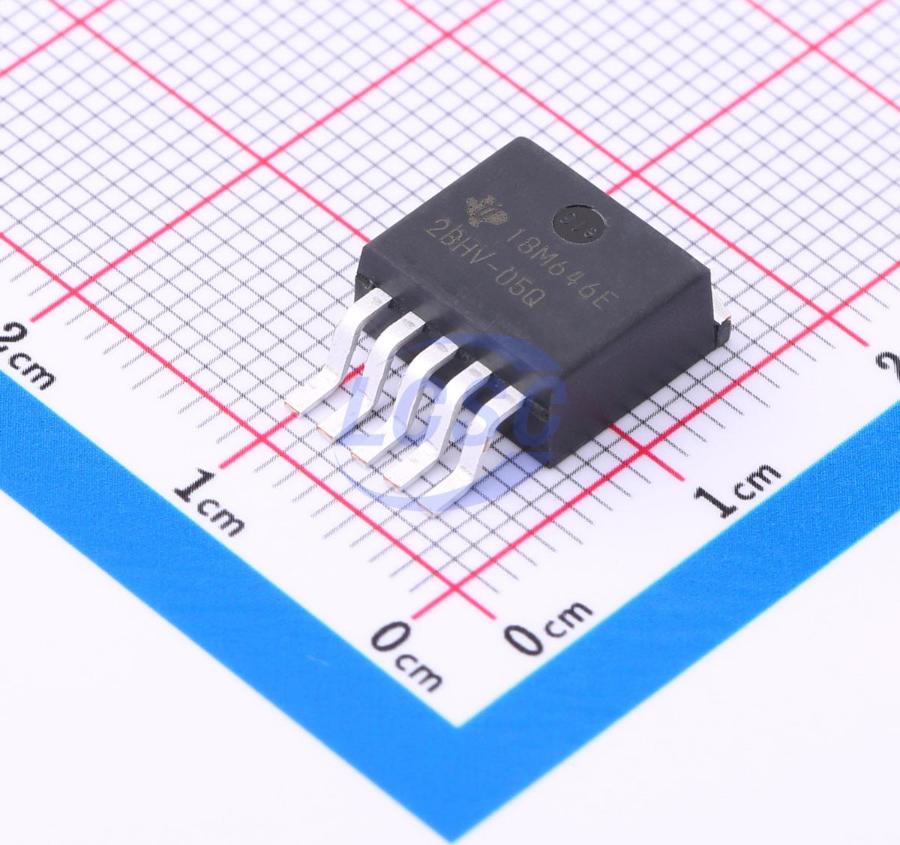

TL2575HV-05QKTTRQ1
52kHz Step-down type Fixed 1A 5V DDPAK(TO-263-5) Voltage Regulators - DC DC Switching Regulators RoHS
DDPAK(TO-263-5)ROHS3 CompliantActive
1A High-Efficiency Buck Switching Regulator
- Manufacturer
- TI
- Manufacturer part #
- TL2575HV-05QKTTRQ1
- Store part #
- C2071431
- Package / case
- DDPAK(TO-263-5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C2071431
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,030.31 | ₹1,030.31 |
| 10+ | ₹918.86 | ₹9,188.60 |
| 30+ | ₹847.53 | ₹25,425.90 |
| 100+ | ₹778.59 | ₹77,859.00 |
1 × ₹1,030.31
₹1,030.31
excl. GST
₹1,215.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
TL2575HV-05QKTTRQ1
₹1,030.31 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 52kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Topology
- Buck
- Output Type
- Fixed
- Operating Voltage
- 4.75V~60V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Output Voltage
- 5V
- Quiescent Current
- 5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.976 g
Overview
The TL2575HV-33 and TL2575HV-05 greatly simplify the design of switching power supplies by conveniently providing all the active functions needed for a step-down (buck) switching regulator in an integrated circuit. Accepting a wide input voltage range of up to 60 V and available in fixed output voltages of 3.3 V or 5 V, the TL2575HV-33 and TL2575HV-05 have an integrated switch capable of delivering 1 A of load current, with excellent line and load regulation. The device also offers internal frequency compensation, a fixed-frequency oscillator, cycle-by-cycle current limiting, and thermal shutdown. In addition, a manual shutdown is available via an external ON/OFF pin. The TL2575HV-33 and TL2575HV-05 represent superior alternatives to popular three-terminal linear regulators. Due to their high efficiency, the devices significantly reduce the size of the heat sink and, in many cases, no heat sink is required. Optimized for use with standard series of inductors available from several different manufacturers, the TL2575HV-33 and TL2575HV-05 greatly simplify the design of switch-mode power supplies by requiring a minimal addition of only four to six external components for operation. The TL2575HV-33 and TL2575HV-05 are characterized for operation over the virtual junction temperature range of -40°C to 125°C.
Applications
- Simple High-Efficiency Step-Down (Buck) Regulators
- Pre-Regulators for Linear Regulators
- On-Card Switching Regulators
- Positive-to-Negative Converters (Buck-Boost)
Key features
- Fixed 3.3-V and 5-V Options With ±5% Regulation (Max) Over Line, Load, and Temperature Conditions
- Specified 1-A Output Current
- Wide Input Voltage Range…4.75 V to 60 V
- Require Only Four External Components (Fixed Versions) and Use Readily Available Standard Inductors
- 52-kHz (Typ) Fixed-Frequency Internal Oscillator
- TTL Shutdown Capability With 80 μA (Typ) Standby Current
- High Efficiency…as High as 88% (Typ)
- Thermal Shutdown and Current-Limit Protection With Cycle-by-Cycle Current Limiting
