TWGMCDatasheet (PDF)

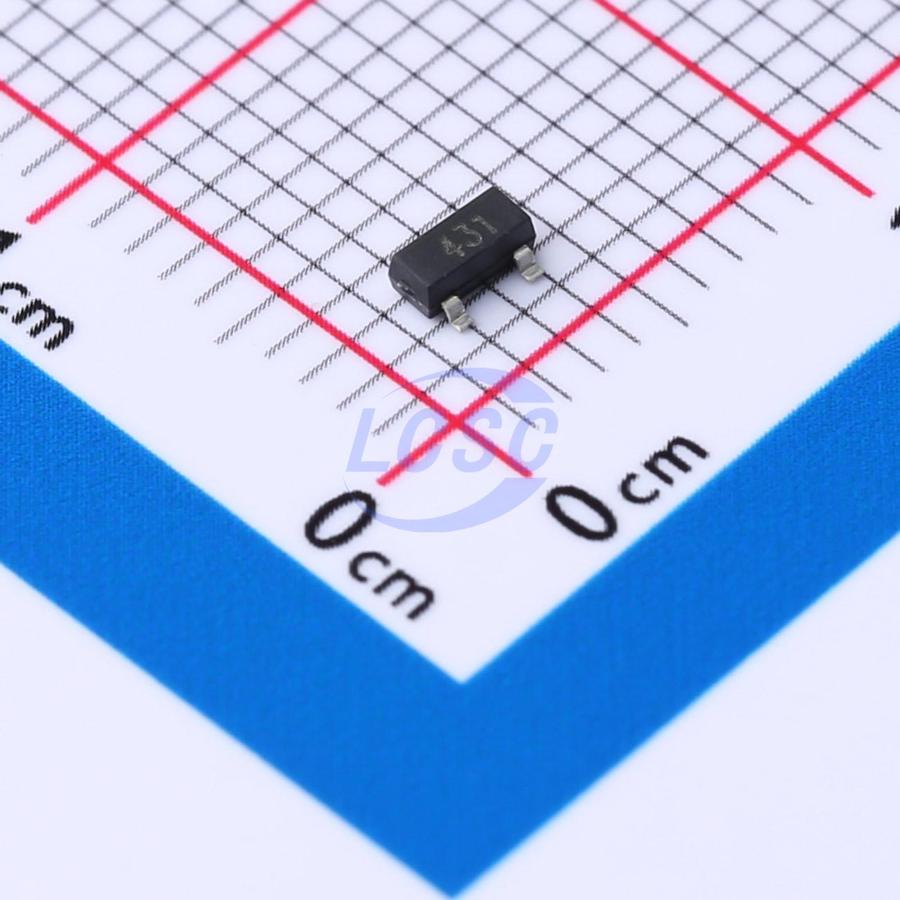

TL431
2.5V~36V ±1% 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
The TL431 Three-Terminal Adjustable Shunt Regulator Offering Excellent Temperature Stability
- Manufacturer
- TWGMC
- Manufacturer part #
- TL431
- Store part #
- C5290159
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,240 in stock
#C5290159
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.21 | ₹104.20 |
| 200+ | ₹4.17 | ₹834.00 |
| 600+ | ₹3.57 | ₹2,142.00 |
| 3,000+ | ₹2.77 | ₹8,310.00 |
| 9,000+ | ₹2.46 | ₹22,140.00 |
| 21,000+ | ₹2.29 | ₹48,090.00 |
20 × ₹5.21
₹104.20
excl. GST
₹122.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431
₹104.20 for 20 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -25℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.031 g
Overview
The TL431 is a three-terminal adjustable shunt regulator offering excellent temperature stability. This device has a typical dynamic output impedance of 0.2Ω. The device can be used as a replacement for zener diodes in many applications.
Applications
- Shunt Regulator
- High-Current Shunt Regulator
- Precision Current Limiter
Key features
- The output voltage can be adjusted to 36V
- Low dynamic output impedance, its typical value is 0.2Ω
- Trapping current capability is 1 to 100mA
- Low output noise voltage
- Fast on -state response
- The effective temperature compensation in the working range of full temperature
- The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/°C
